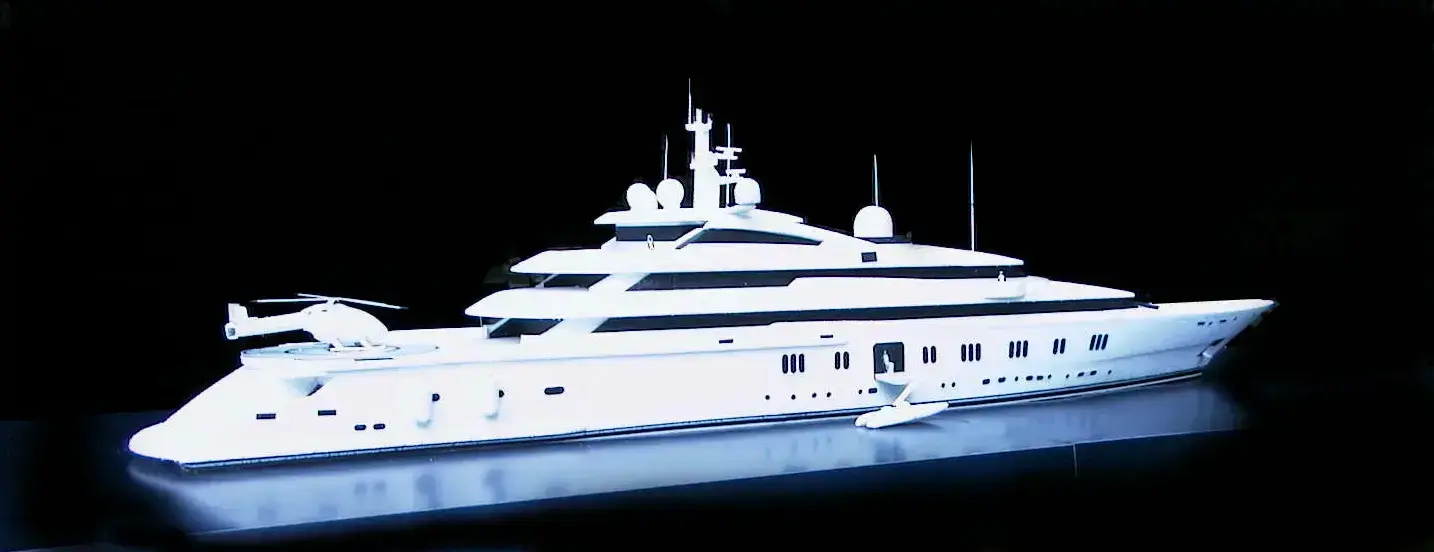

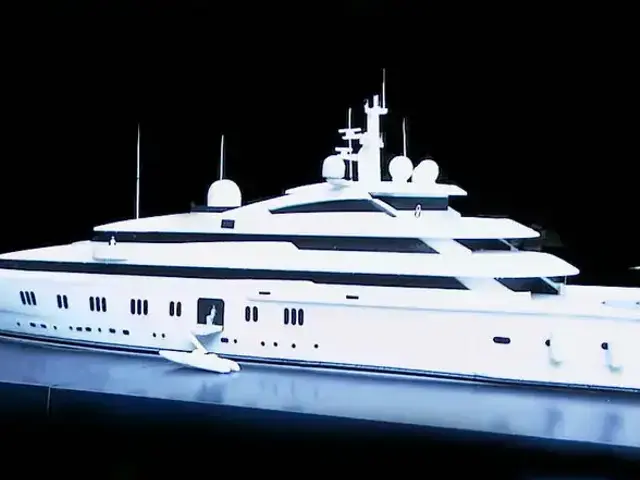

ACURY MY 95 GREEN CONCEPT

The ACURY MY 95 GREEN CONCEPT can be build to any Yacht or Explorer design that follows the below parameters as new build.
LOA: 95.00m
LBP: 91.40m
Beam:16.00m
Tonnage approx. 6500
Displacement approx.: 5500 ton
Hull and superstructure: Steel
And following deck configuration:
Bottom Deck
Lower Deck
Main Deck
Upper Deck
Bridge Deck
Sun Deck

ACURY MY 95 GREEN CONCEPT

The ACURY MY 95 GREEN CONCEPT can be build to any Yacht or Explorer design that follows the below parameters as new build.
And following deck configuration:
Bottom Deck
Lower Deck
Main Deck
Upper Deck
Bridge Deck
Sun Deck

ACURY MY 95 GREEN Basic specifications
The following is intended to outline which deliverables are included and which are excluded from the shipyard's scope of work/supply for the construction and delivery of a "Green Vessel", thus defining the primary interfaces between shipyard and buyer are available on request.

Basic specifications
LOA: 95.00m
LBP: 91.40m
Beam:16.00m
Tonnage approx. 6500
Displacement approx.: 5500 ton
Hull and superstructure: Steel
Class: LR or Rina Private yacht

Max Speed: 14kn @100MCR
Range: 6000nm@9kn
Main engine: 2x2200KW Weichai
Generators: 2x450KW Weichai
Emergency generator: 1x300KW Weichai

Main equipment included
(all Chinese brands)
• Bow thruster
• Stabilizer
• HVAC
• Chiller plant unit
• Water mist system
• Water maker
• Water treatment plant
• Passerallex1
• Boarding ladder x1
• Shell door x2

Included in the shipyard's scope of work/supply:

General items included:
• All tanks, bulkheads, watertight doors, hull openings
• Mooring and anchoring machinery and equipment.
• All penetrations and pipe work installations
• Complete system piping
• Domestic and chilled water piping work to be terminated at defined locations.
• All electrical wiring and cabling in accommodation areas will be terminated in Deck Main Distribution Boards (D-MDB)
• All general ship safety and alarm electrical wiring and cabling in accommodation areas will be terminated in separate junction boxes at defined locations.
• Telephone, antenna and AV cabling to be terminated in separate junction boxes at defined locations.
• Steel floors to be properly primed and painted– commercial standard paint
• All “A” class divisions and fire doors to be fitted.
• Searchlights, signal lights etc. installed as per Class requirements
• All exterior ships door to be fitted
• Stairways, emergency escape ways,
• Passenger lifts and dumb waiter base structure in place (no supply of equipment)
• Forepeak and deck lockers
• Bunker station
• Hull and superstructure to be fully insulated for noise, vibration and heat.
• Protective painting internal hull and superstructure including masts all tank coatings and all deck storage lockers, hydrants, bunker station and technical areas (commercial standard)
• External hull and superstructure primed and painted according to commercial standard, or if decided by client with fairing primer (in case client wants fairing and high gloss paint at a later date – at extra cost)
• External hull below waterline according to commercial standard

Excluded from the shipyard's scope of work/supply:

General items excluded:
• Design, engineering, fabrication, materials, fittings or fixtures and fit-out of all luxury areas comprising owner and guest staterooms, relaxation areas, lobbies, corridors, stairways, lifts, and any other areas for the exclusive use of owner or guests.
• Design, engineering, fabrication, materials, fittings or fixtures and fit-out of all crew areas comprising crew cabins, mess, pantries, galleys, day rooms, relaxation areas, lobbies, corridors, stairways, lifts, and any other areas for the exclusive use of crew.
• Filling (with compound) and fairing and high gloss painting
• Any item of owner supply relating to luxury fit-out, including but not limited to linens and bed coverings, cooking utensils, crockery, cutlery, glassware, loose furniture, pieces of art, domestic equipment, deck furniture, tenders or water sports equipment.
• Teak decking, self-levelling and fairing
• Any stainless steel handrails for gates, stairs, side boarding gangway etc.
• Main galley, crew galley and pantries
• Glass to be supplied by the specialist supplier and bonded onto framework
• Deck cranes and mooring equipment
• Tender garage, launching mechanism and wet dock, gantry system within garage.
• Fan coil units for luxury and crew areas
• Class fees for checking, commenting and approving drawings
• Floating floor all decks

More details of what is included and excluded in the offered price on request by ACURY YACHTS

The sole role and obligation of ACURY YACHTS is to introduce and coordinate clients requirements for Yachts , Super Yachts or Mega Yachts projects with the best possible solutions for the client to the shipbuilder/shipyards. All prices indicated are based on a standard version without any special custom requirements / requests by a possible client. Price bases are subject to change if steel base price index will change. All special interior or exterior designs can be changed to accommodate the clients individual taste during the negotiation with the building shipyard. Contracts, agreements, and all works and/or legalities concerning the sale between the client/buyer and shipbuilder/shipyards are the responsibility of shipbuilder/shipyards.
