ACURY MYT 12 Hybrid and Electric
LOA: 41' 0" (12.50m)
Beam: 11' 0" (3.35m)
Max Draft: 3' 4" (1.00m)
Hull Material: Composite Fiberglass
Hull Config: Planing
Speed Cruising: 25 knots
Max Speed: 30 knots
Location: United Arab Emirates
Year: Mfg 2017
Model: 2015
Builder: Nedship Group
Model: Luxury Tender package
Type: Tender
Guests SR/S: 0/0
Crew R/B/S: 0/0/0
Engines: Twin, Inboard
Limited Edition Hybrid and Electric Model

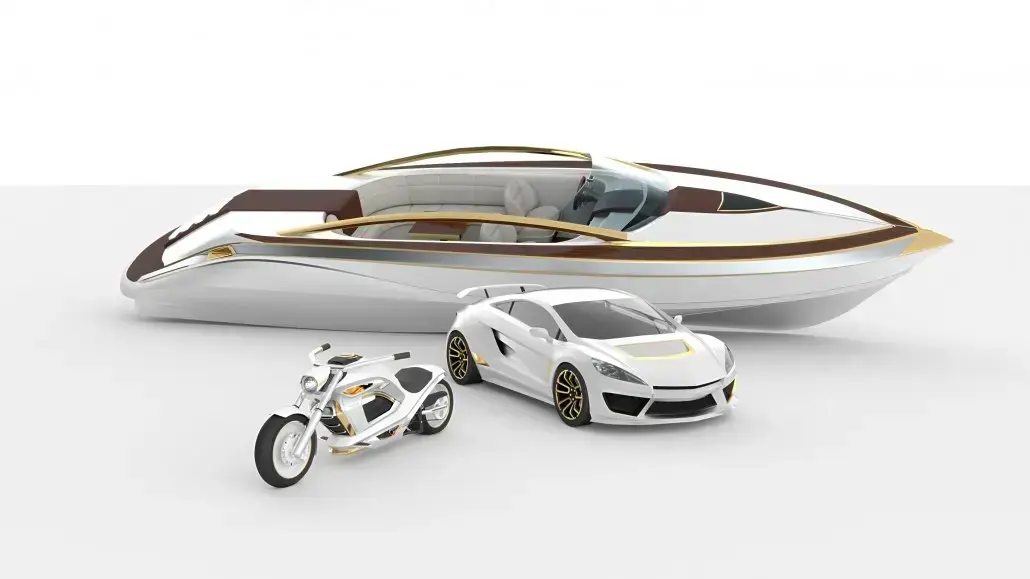

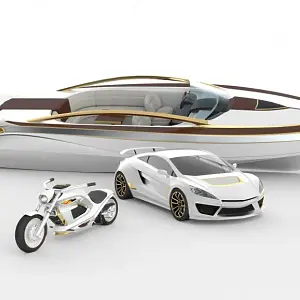

ACURY presents the Ultimate Mega Yacht Tender package
Zeus Twelve Collection by Gray Design

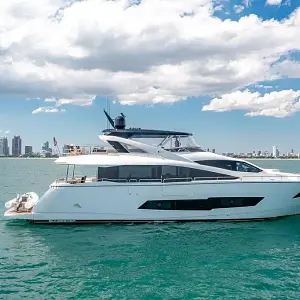

MEGA YACHT Hybrid Tender, 12m
MEGA YACHT Electric Super Sport Car
MEGA YACHT Electric Super Bike

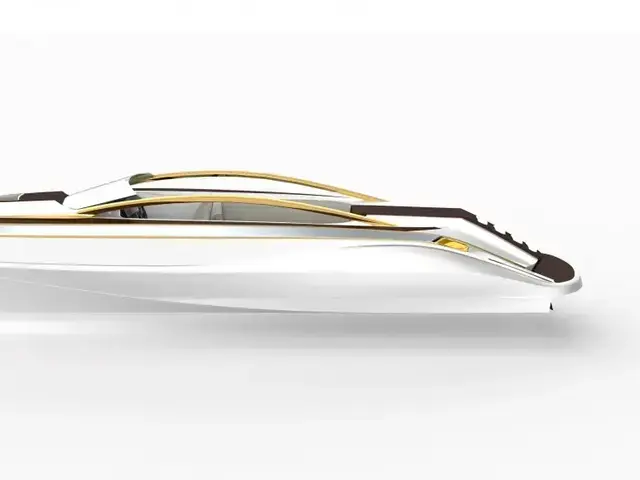

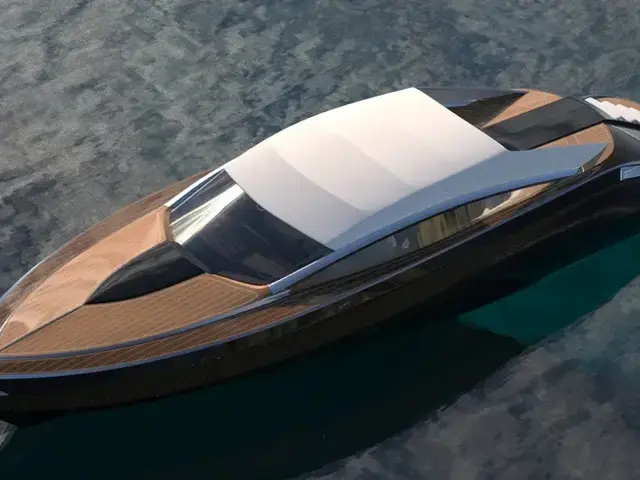

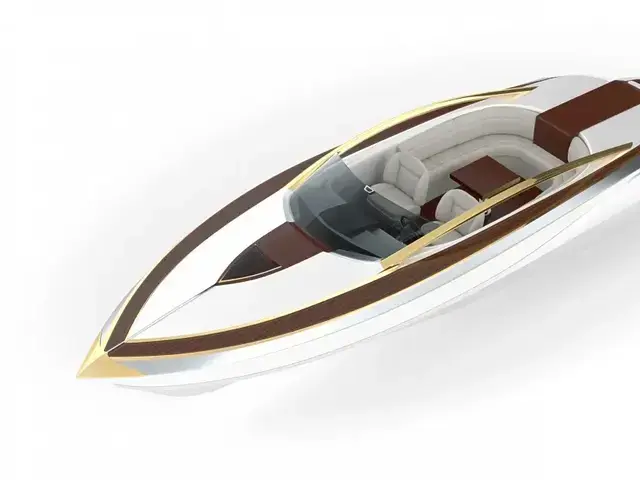

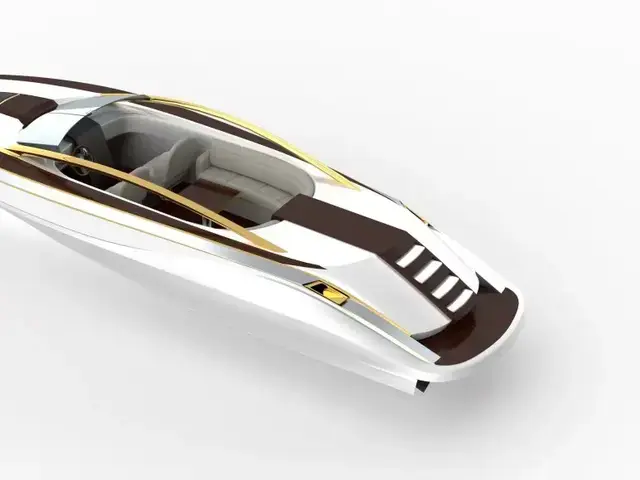

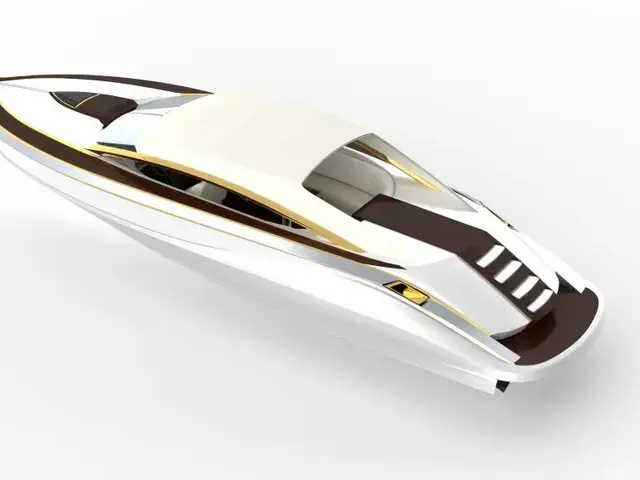

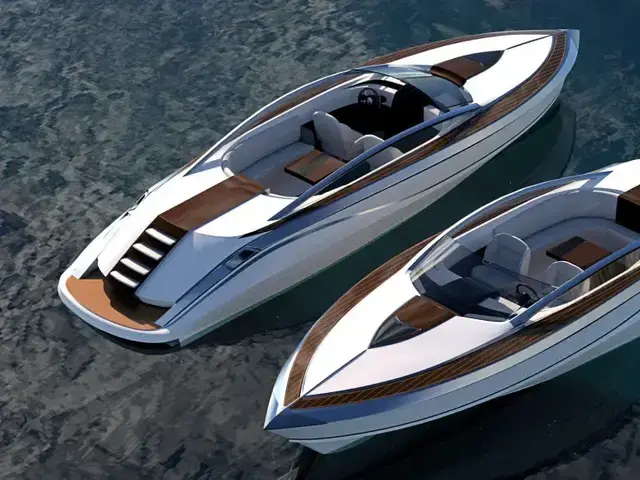

MEGA YACHT Hybrid Tender 12m Specification
This custom built jet propelled mega yacht tender is powered by twin CMD Marine V6 TDI diesel engines (2x350 HP) with GM Allison Hybrid Transmissions to drive the Rolls Royce Water Jets. When employed as a zero carbon ship to shore Shuttle, the 250KW Allison electric motors propel the Hybrid boat at up to 25 knots in virtual silence. Push the throttles full ahead and the infinitely variable transmission kicks into low gear engaging the V6’s Hi-Torque hybrid propulsion to deliver unsurpassed acceleration.
Standard Equipment
- Bimini top
- Teak Deck
- Lacquered finished cabin interior
- Engine room hatch with hydraulic actuator
- Hand opened bimini
- Surge tank
- Electric boiler
- Compass
- Convertible sofa/double bed
- 110V battery charger
- Premium marine sound system CD/Stereo 8 speakers/remote control HiFi radio with iPod dock
- Full external cushions kit
- Full internal cushions kit
- External shower
- Teak chopping board
- 110 lt Fridge with freezer
- Sink
- Microwave
- Coffee maker
- Ice maker
- Ceramic glass cooking plate
- Refrigerator with freezer
- Side port lights
- Deck aft locker
- General switchboard
- Rollaway swimming ladder
- Water tank capacity 150 lt
- Black water tank
- Fuel tank capacity 2x570 lt
- External dining table
- Interior bath with shower, wc, and sink
- Embedded Horn
- Electric anchor winch
- Cockpit courtesy lights
- Antifouling
- Safety equipment for within 12 miles roles
- 6 life jackets
- 1 lifebelt with rope
- 1 boat hook
- 1 life raft within 12 miles 6 passengers
- 1 signal rockets kit
- GPS Garmin touchscreen 5012
- High quality custom classic upholstery.
- Marine leather, embroidered emblems
- High gloss mahogany wood interior
- Captain helm seats/usofa
- Custom classic steering wheel, tilt function.
- Custom classic gauge panel
- Engine instruments
- Engine oil pressure
- Engine water temperature indicator
- Revolutions counter and hours indicator
- Fuel and water level indicators
- Horn
- Helm operated 8 kg electrical stainless steel anchor windlass and chain
- 12V socket
- Hydraulic power steering
- Trim tabs
- Deck hardware stainless steel/brass chrome
- Navigation lights (S/S classic)
- Courtesy LED lights (dimmer function)
- Stainless emblems
- Stainless windshield frame/safety glass
- Stainless rub rails
- Stainless side ventilators
- Mahogany decking
- Removable S/S flag pole
- Automatic bilge pumps (2)
- Manual bilge pump (1)
- Flush mount mooring cleats (8)
- Acoustically sound insulated engine compartment
- Fuel water separator
- Batteries for general service 2 x 12V x 90Ah
- Batteries for engine start (2 x 12V x 75Ah)
- 2 powder fire extinguishers
- Swimming platform including swimming ladder, shower
- Stainless steel tanks (fuel, water)
- Fender storage
Limited Edition Package Equipment
- Bow lights
- Underwater lights
- Full Bimini and spray hood
- Remote controlled gangway
- Multimedia entertainment system
- Canopy with electrical automation
- VHF Radio Raymarine
- GPS Raymarine E 120W
- Eco Module for GPS
- Video module for cameras
- Autopilot
- Rollaway 32” LCD TV, incl Lifting system
- Air condition and heater 12,000 BTU
- Bow Thruster
- Stern Thruster
- Diesel generator 6 kW
- Platform deep lights
- Cockpit day cover
- Grey water tank
- Customized Interior (structure)
- Other fabrics, leather etc
- Transport and delivery protection
- Berthing package
- Custom tool box
- High end Fashion Boat wear and accessories;
- Custom bathrobes
- Custom T-shirts
- Custom polar pullover
- Custom vest/jacket
- Custom baggage kit
- Custom Towels
- Custom dashboard and seats cover
- Custom external toweling kit
- Custom interior bedding kit for bed and sofa

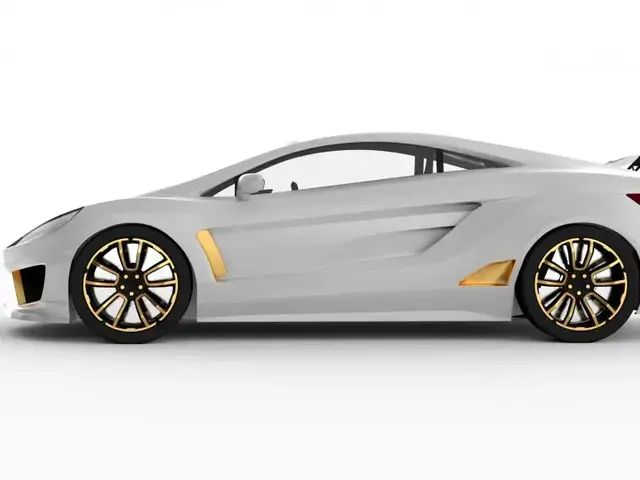

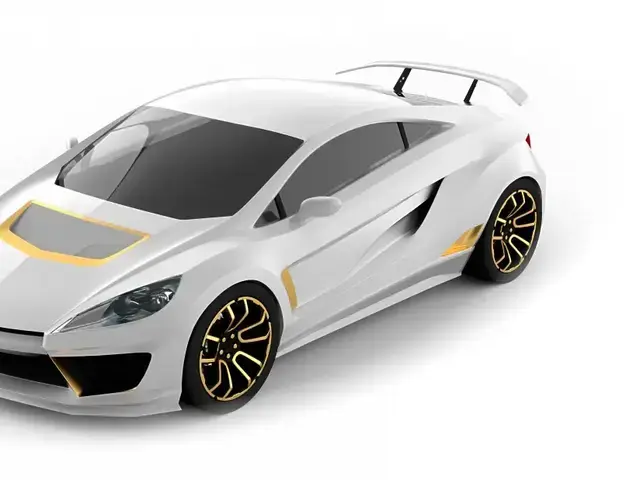

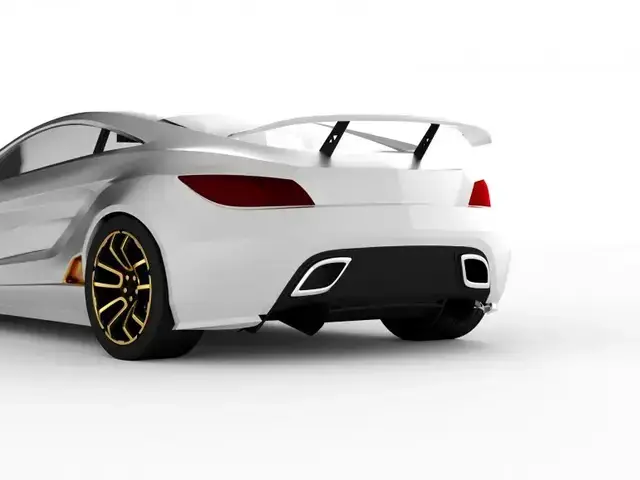

MEGA YACHT Electric Super Sport Car Specification
The Super Car of the future and today. Based on the Rimac Automobili Concept One.
-
Power output: 1088 hp (800 KW)
-
Torque: 1600 Nm from 0 to 6500 rpm
-
Acceleration: 0-100 km/h (0-62 mph) 2.8 sec
-
Top speed: 325 km/h
-
Range: up to 330 km
-
Braking distance: 31.5m (100 km/h)
- 22 kW onboard charging
-
Weight to power ratio: 1.7 kg/hp
-
Weight distribution: 44% front, 56% rear
- All wheel torque vectoring
Dimensions
-
Total length: 4146 mm
-
Total width: 1854 mm
-
Total height: 1070 mm
-
Ground clearance: Rear: 115 mm, Front: 105 mm
-
Wheelbase: 2563 mm
-
Dry weight: 1850 kg
Battery Pack
-
Chemistry: Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)
-
Voltage: 650V nominal
-
Capacity: 82 kWh
-
Cooling: Fully Flooded Thermal Management
-
Housing: Milled aluminum and sheet aluminum
-
Systems: Rimac Automobili Battery and Thermal Management Systems
-
Safety: Several layers of redundant safety and protection systems
Chassis
- Tig welded CroMo spaceframe
- Aluminum, carbon and CroMo crash structures
- Front and rear suspension: Double wishbones, fully adjustable, pushrod operated.
Steering
- Rack and pinion electrohydraulic power assisted steering
Brakes
-
Front brakes: Ventilated ceramic discs Ø 390 mm, 36 mm wide, 6 piston calipers. Power assisted
-
Rear brakes: Ventilated ceramic discs Ø 380 mm, 34 mm wide, 4 piston calipers. Power assisted
Safety Systems
- Torque Vectoring with stability function, traction control and ABS
- Up to 400 kW of regen braking
- Safety disconnect systems in case of crash
Body

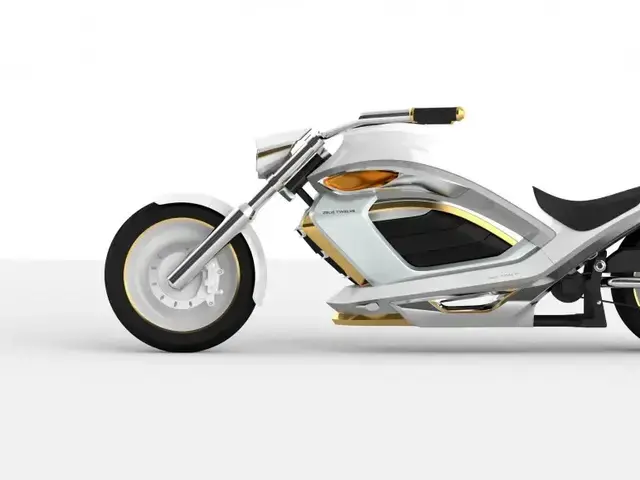

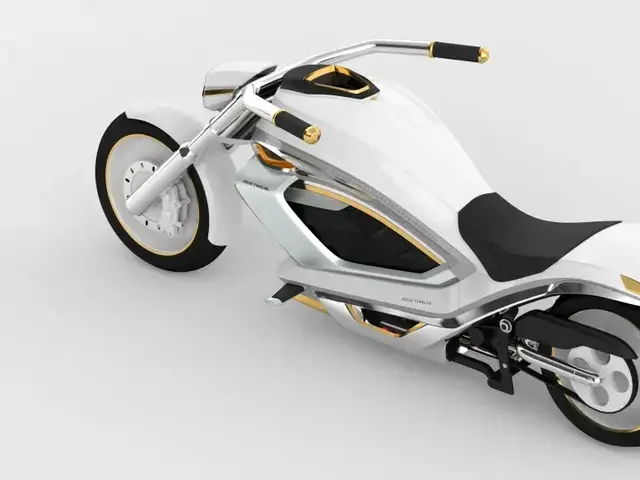

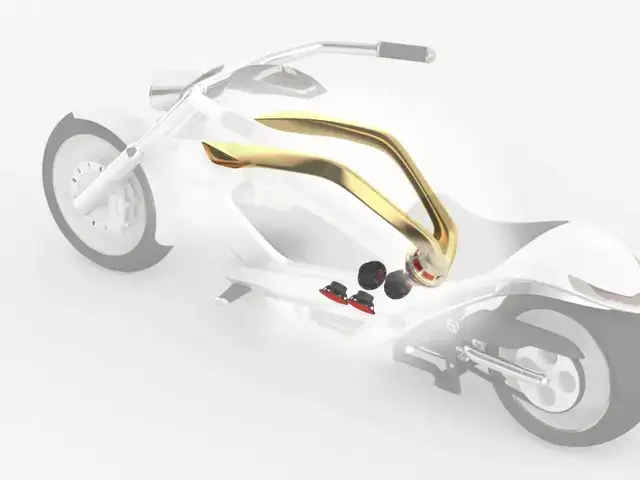

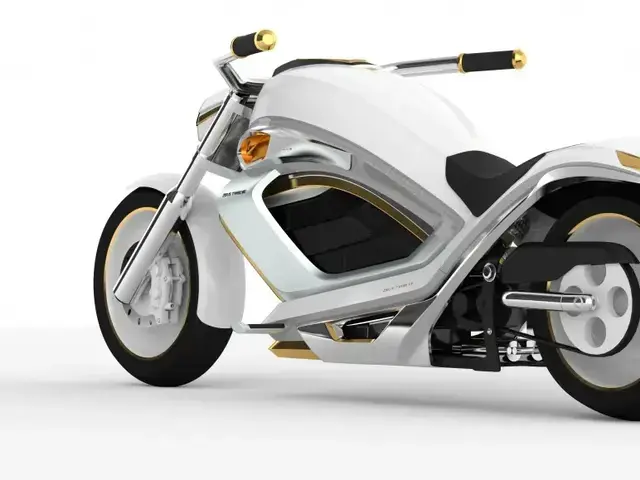

MEGA YACHT Electric Super Bike Specification
Based on the SORA Signature Series electric super bike.
-
Top speed: 120 mph
-
Acceleration: 0-100 km/h (0-60 mph) 4.7 seconds
-
Range: 120 miles per charge
-
Torque: 90 Nm, 0 to 6000 rpm (66.37 ft-lb)
-
Quick charge time: 3 hours
Chassis
-
Chassis: Lightweight aluminum 6061T6
-
Front suspension: 43 mm inverted cartridge fork, fully adjustable.
-
Rear suspension: Elka suspension fully adjustable. Aluminum swing arm.
-
Tires: Front: 120/70 ZR17, Rear: 180/55 ZR17
-
Front brake: Dual semi-floating 310 mm petal discs, radial mount opposed 4 piston calipers 2 pad, Rake 25.0°
-
Front wheel travel: 125 mm
-
Rear wheel travel: 127 mm
-
Wheels: Lightweight machined aluminum, Front: 3.50 x 17″, Rear: 5.50 x 17″
-
Rear brake: Single 250 mm petal disc, opposed 2 piston caliper
-
Weight: 260 kg (573.2 lbs.)
Power Train
-
Motor: Liquid cooled 3 phase AC induction
-
Torque Crank: 90 Nm (66.37 ft-lb, 0-6000 rpm)
-
Energy storage: 12 kWh lithium polymer battery modules with integrated Battery Management System, onboard charge, J1772 compatible
-
Recharge Time: Approximately 9 hours
-
Transmissions: Belt final drive and CVT transmission
-
Top speed: 193 km/h (120 mph)
-
Power Control: Advanced software, integrated computer, regenerative braking, 3 control modes (performance, normal, safe range)
-
Instrumentation: Digital unit with displays for speedometer, battery charge level and warning lights 5.7 in. LCD with touch screen: GPS and application USB port
The Three Key Technological Solutions
- A turnkey Electric Vehicle Propulsion System
- An automatic Safe Range System™
- An adjustable driving position mechanism.
