Fitzroy IV for sale in Savannah GA United States of America

Overview

When the current American Owners took possession of ANEMOI (previously LUDYNOSA G and built as HELIOS), they embarked upon a nine month $3M comprehensive refit including mechanical systems, operating and monitoring systems and cosmetics both interior & exterior. (See Maintenance history for more details).

Key Features

• Dubois/Fitzroy designer-build package withstands the test of time in regard to styling and operations
• ANEMOI has maintained Lloyds Classification since build
• Currently operated as private vessel but previously maintained a superb charter calendar

Upgrades 2022

• Steering System, Wagner 2 station power assisted- Full service and rebuild
• Air conditioning chiller- new
• IMARSAT C- new
• Windlass & new motors- new
• Apple TV & Plex media system and Sonos audio
• Ships coms PC and ships navigation PC- new
• Siemens induction cooktop, 5 burner- new
• Smeg 700mm oven- new
• Miele commercial dishwasher- new
• Miele commercial washing machine & drier- new

2021

• Simrad GC80 Gyro Compass- new
• Passarelle- full rebuild
• New Atlas shore power converter

2019

• Shafts & Propeller- Hundested rebuild
• Staysail and stay- new
• Mast and boom paint- new
• Rod rigging package- new
• Bow thruster- new
• Stern thruster- new leg and full rebuild
• Sewage Treatment Systems- full rebuild
• 2x KVH antenna- new
• New Furuno radar
• Miele 2 burner induction hob- new
• Miele coffee machine- new

2018

• Removal and renewal of all exterior teak decks
• Complete hull and superstructure paint restoration including introducing a new color scheme
• Removal of existing generators and replacement of 2x 50kW Northern Lights Generators with a new paralleling system
• Complete Top & Bottom End (Zero Hour) rebuild of Caterpillar 3406E Main Engine
• All new North 3DI sail inventory including Main, Reacher, Blade and Spinnaker
• Refit of Interior spaces including headliners, soft goods and addition of pullman bunks
• Replacement of AC system including Chillers and Air Handlers throughout the vessel
• Complete replacement of original PLC monitoring system with Boning ship's monitoring and control system including hydraulic controls
• All new Electronics packages including:
  - New H5000 B&G and NMEA 2000 backbone
  - New navigation electronics
  - New AV system throughout
  - New camera System

General Specifications

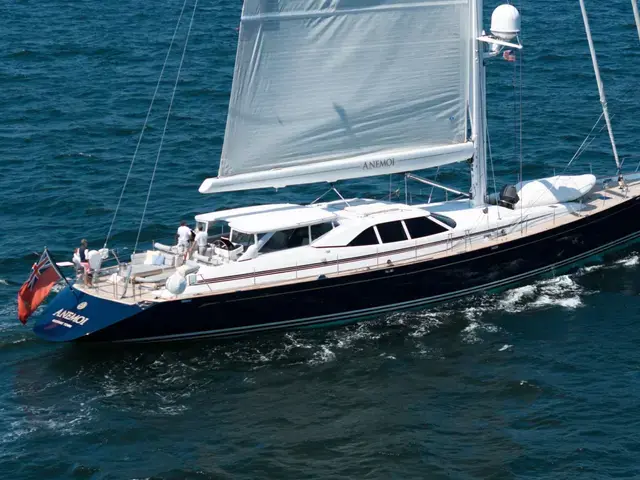

• Type: High Performance Fast Cruising Auxiliary Sloop
• Classification: Lloyds, MCA +100A1 SSCG6
• Flag: George Town, Cayman Island
• LOA: 123ft (37.5m)
• LWL: 111ft (33.84m)
• Beam: 27ft (8.26m)
• Draft: 13.12ft (4m)
• Gross Tonnage: 170 tonnes
• Builder: Fitzroy Yachts New Zealand
• Exterior Designer: Dubois Naval Architects
• Interior Designer: Redman Whitely Dixon
• Construction: Aluminum Hull, Carbon Rig & Boom, Teak laid decks
• Paint: Corinthia Blue and Matterhorn White
• Tank Capacities: Fuel 4148 US gallons (15,700 liters); Water 1427 US gallons (5,400 liters); Auxiliary waste 106 US gallons (400 liters); Grey/Black Water 251 US gallons (950 liters)

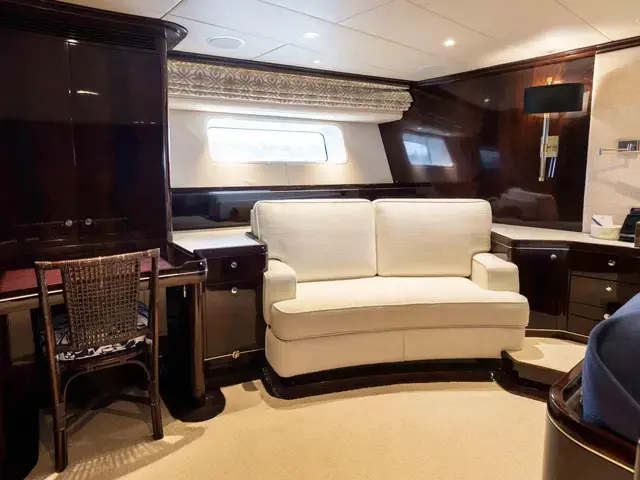

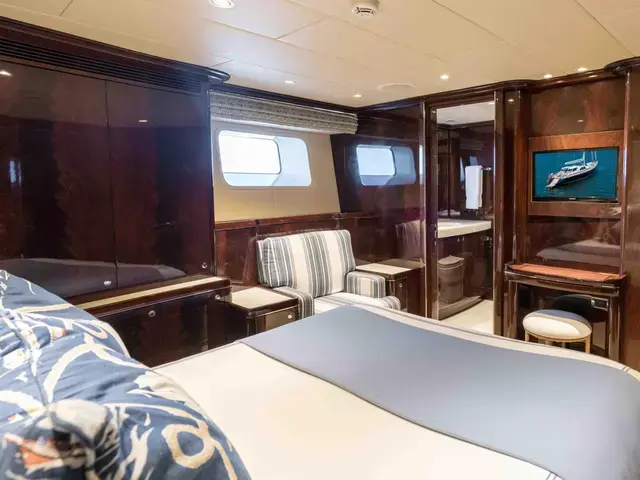

Accommodations Owner's Stateroom

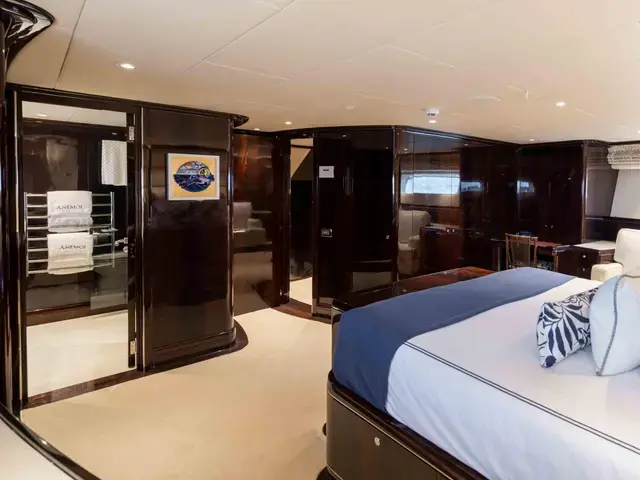

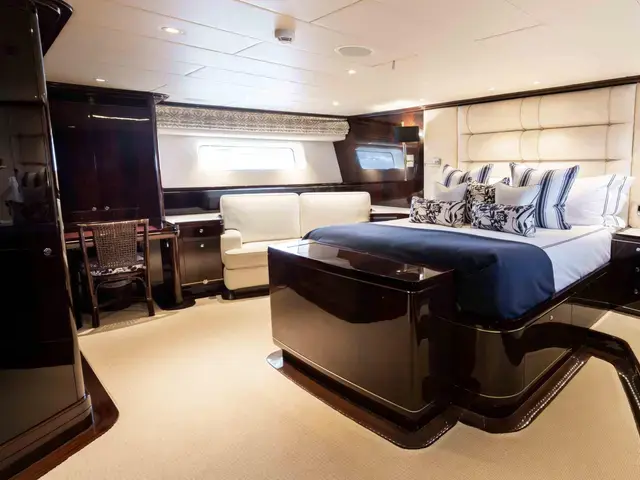

• 1x Master cabin with super king size bed

Guest Staterooms

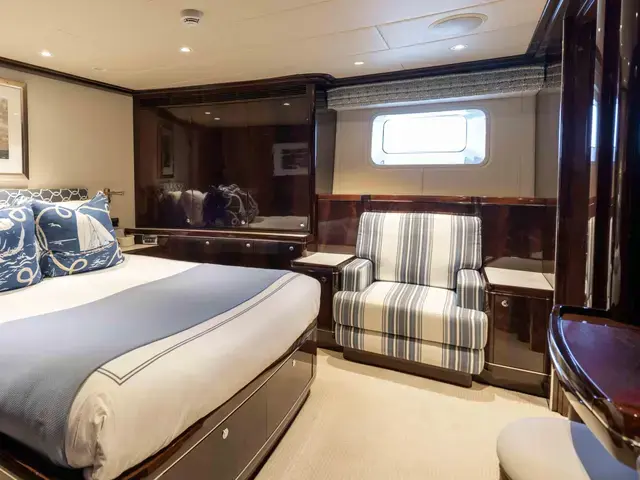

• 1x VIP cabin with king size bed

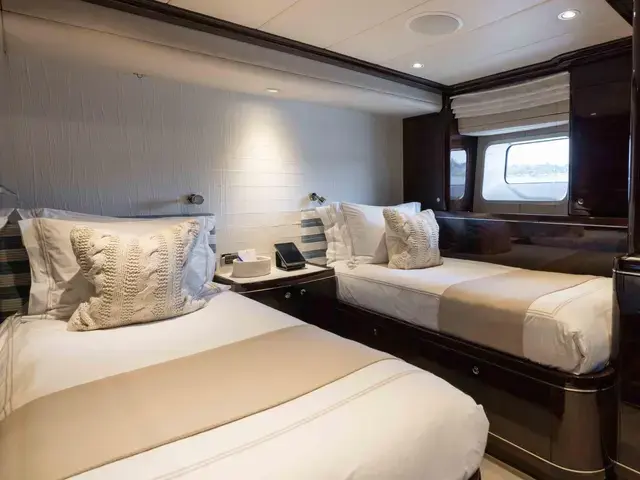

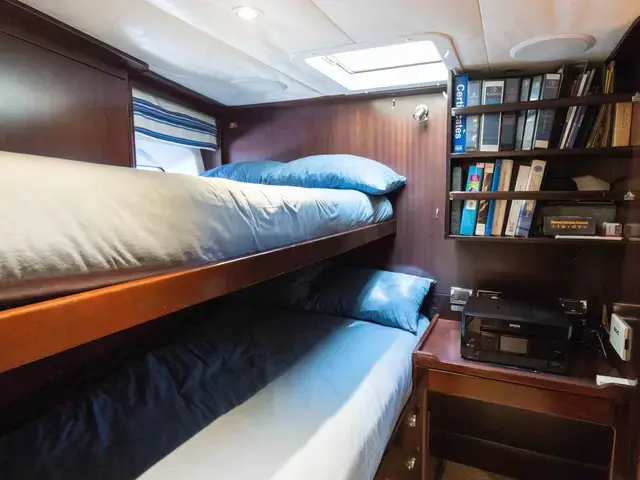

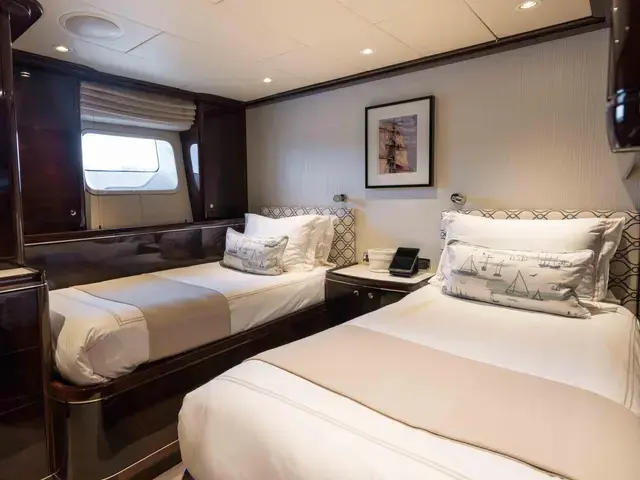

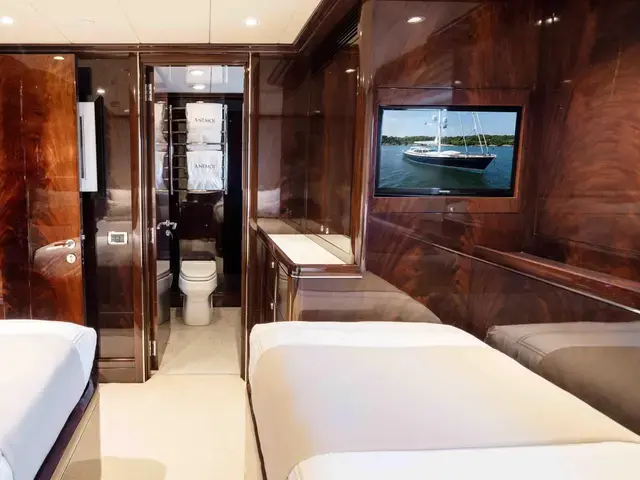

• 2x Twin cabins (Each with a pullman bunk)
• Crew: 3x cabins, all ensuite, accommodating up to 6 crew

Sundeck

• Outside lounge area above pilot house
• Foredeck- tender-well converts to a tented lounge area

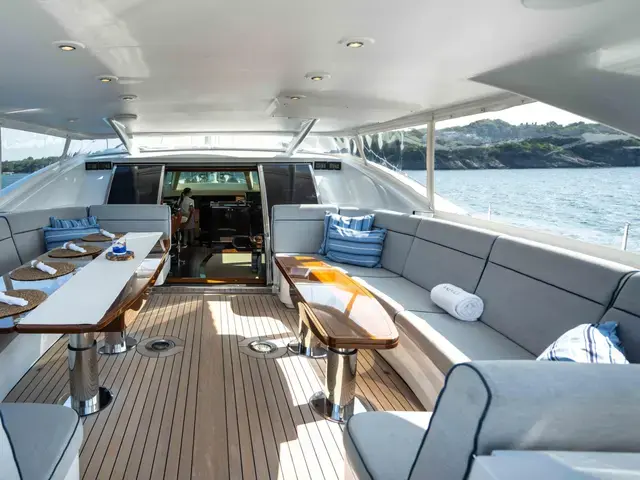

• Aft Deck- a designer composite bimini. High-tech fiberglass composite awlgripped structure and integrated TV

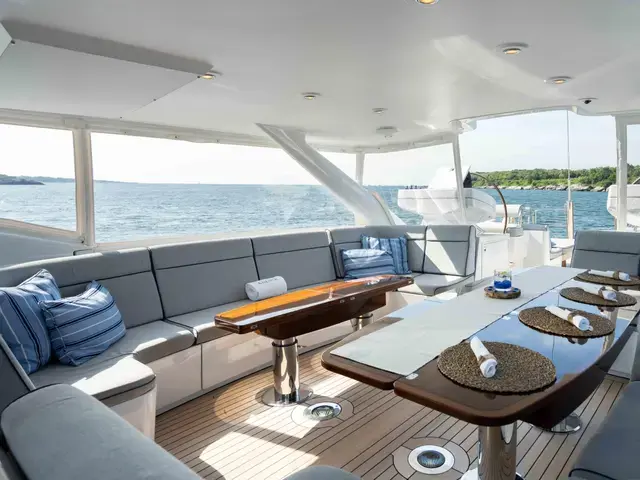

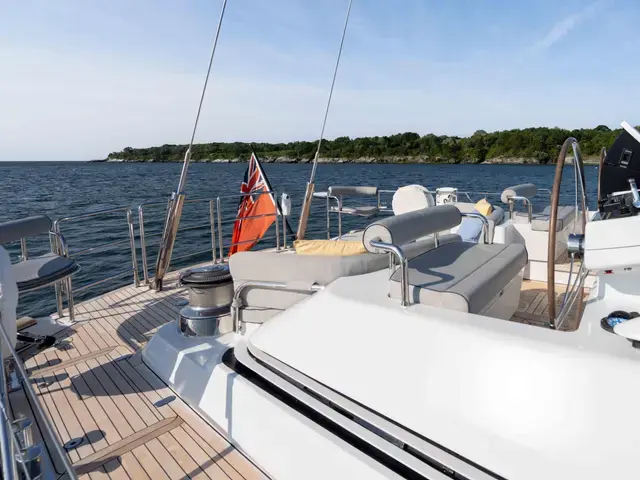

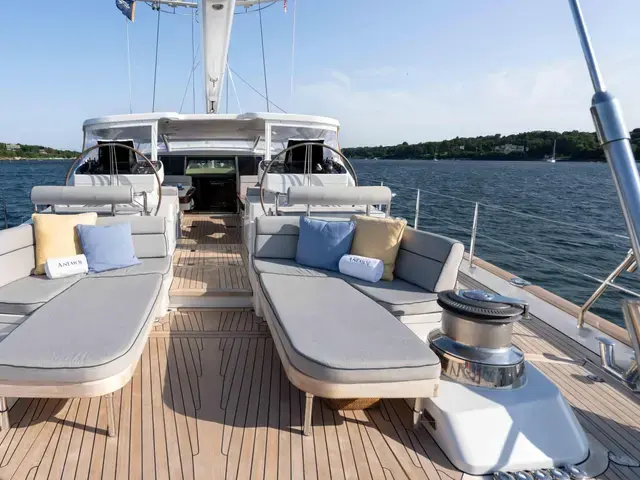

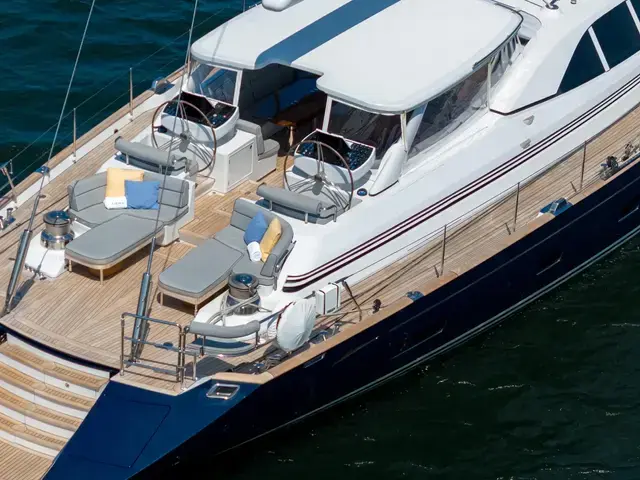

Cockpit

• Dual convertible tables, to full size dining table or low coffee table

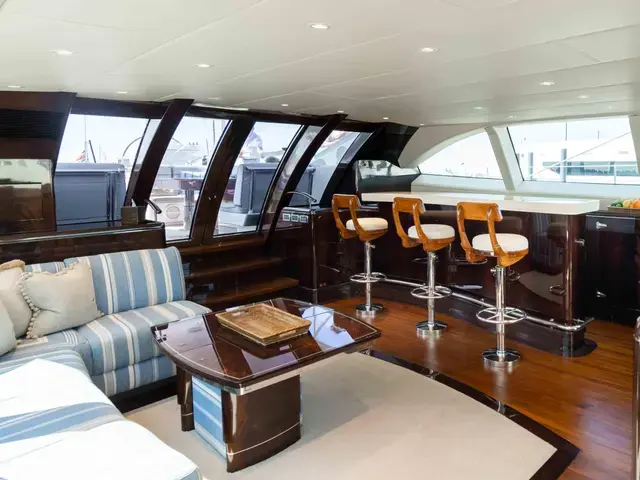

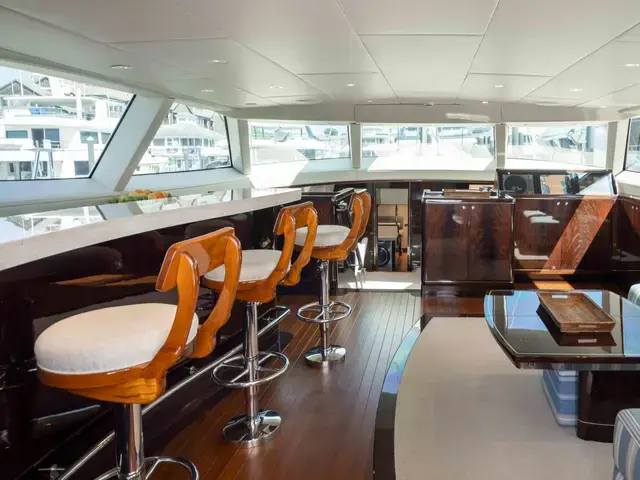

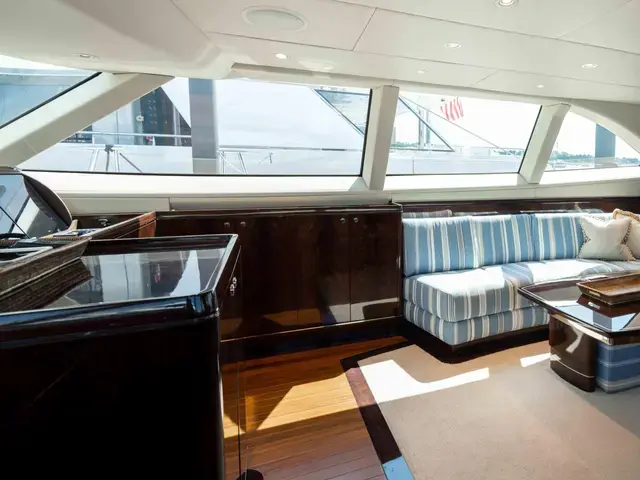

Upper Salon

• Automatic doors
• Full bar to port and an electric elevating table that extends to a six setting table
• Pilot house helm area retracts at a touch of a button flushing countertops for entertaining

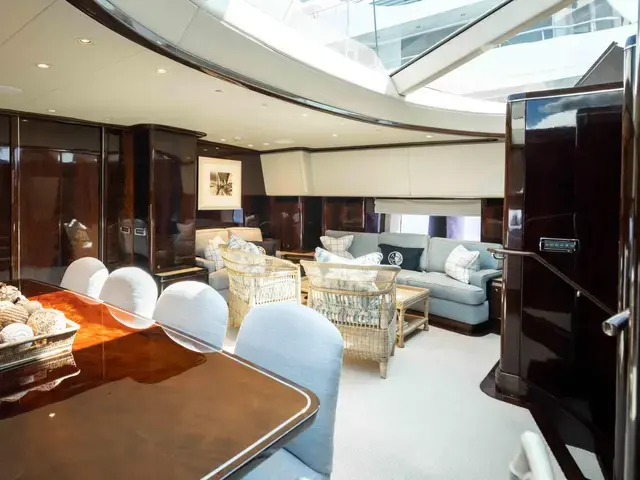

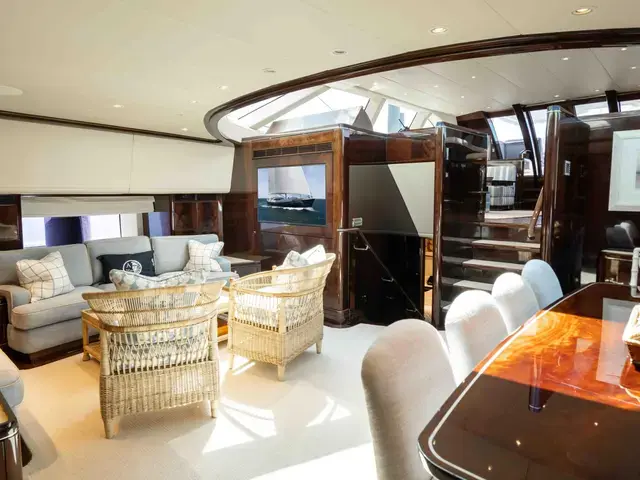

Main Salon

• Large hull mounted windows to port and starboard for natural light
• Dining table to port seats eight
• The lounge to starboard is equipped with a state of the art entertainment system and a 50" LCD flat screen

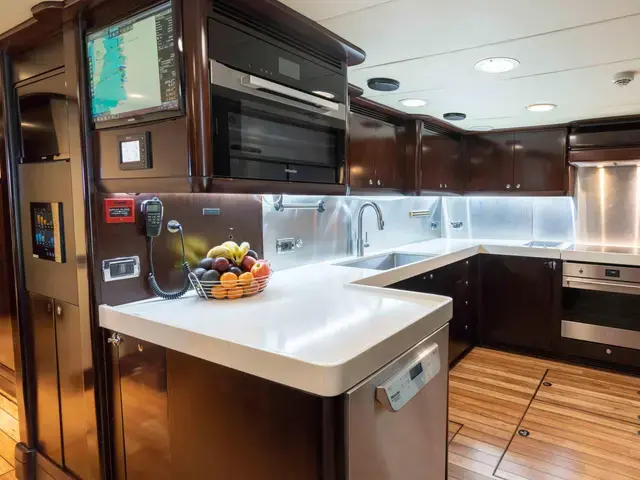

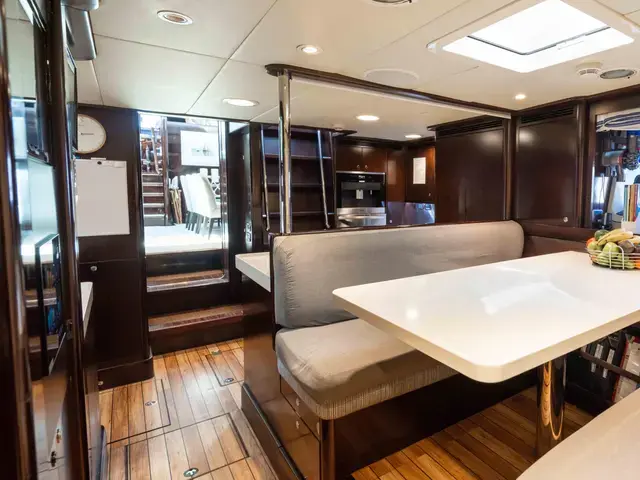

Galley

• 1x Siemens 5 burner gimballed hob
• 1x Miele 2 burner induction hob
• 1x Smeg gimballed 700mm oven
• 1x Miele coffee machine with cup warming drawer
• 1x Miele commercial dishwasher
• Hoshizaki HR 120S 1,042 liter 4 door galley fridge
• Large custom under sole freezer
• Custom bar refrigerator
• Custom cockpit drinks cooler
• 1x Hoshizaki icemaker

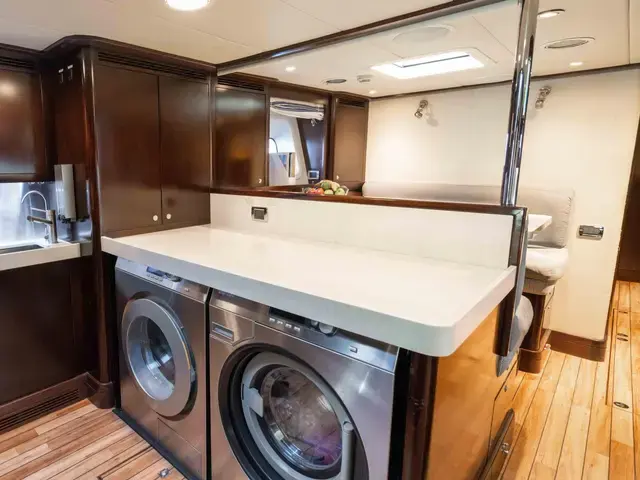

Laundry

• 1x Miele commercial 8kg washing machine
• 1x Miele commercial drier

Machinery

• Main Engines: 700hp Caterpillar 3406E- full zero hours rebuild in 2018
• Engine hours: 16,500 (Feb 2023)
• Gear Boxes: ZF 350A reverse reduction gear box
• Shafts & Propellers: Hundested VP7- rebuild in 2019
• Speed: 11-12 knots cruising; 13-14 knots max
• Long Range: Economical range of 3000 miles at 10 knots
• Fuel Consumption: 1,450 rpm 16 US gallons per hour; 1,800 rpm 26 US gallons per hour
• Generators: 2x 50kW 400V 50Hz Northern Lights Generators
• Generator Hours: 7,500 & 8,000 (Feb 2023)
• Electricity: 220v 50hz
• Shore Power: Atlas Shore Power Classic II
• Converter: Atlas worldwide shower power converter
• Batteries: Service batteries: 600amp hour gel; Radio batteries: 225 amp hour gel; Emergency batteries: 225 amp hour gel

Equipment Ancillary

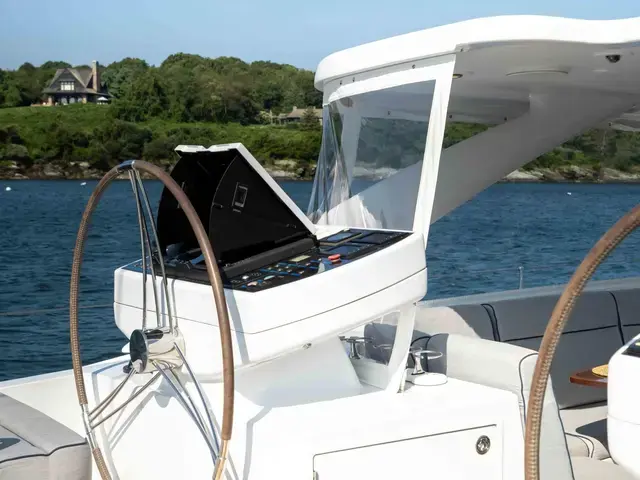

• Steering System: Wagner 2 station power assisted
• Bow Thruster: 1x 60hp Lewmar retractable bow thruster
• Stern Thruster: 1x 60hp Lewmar retractable stern thruster
• Fire/Bilge Pump: 1x Gianneschi emergency fire bilge pump, 1x 400V AC main fire pump, 1x hydraulic bilge pump, Separate bilge stripping system with Pneumatic pump
• Water Makers: 1x HEM 30 series with capacity to produce approximately 600 liters per hour
• Sewage Treatment Systems: Hamman sewage treatment system
• WC's: Actana water flush
• Air Conditioning: Cruise air 3 stage chilled water system 150,000 BTU's; 15 air handler units located throughout the yacht; 3 make up A/C units

Communication

• Magnetic Compass: 2x Ritchie compass
• Gyro Compass: New Simrac GC80 Gyro compass
• Automatic Pilot: B&G H5000 autopilot
• Log/Echo Sounder: B&G log
• Radar: 1x Furuno FAR2218. 72nm
• GPS: 2x Furuno GP32 receivers
• Chart Plotter: 2x nav computers with separate TimeZero- new
• Wind Instruments: Brookes & Gatehouse H5000 AIS

Deck

• Anchor Windlass: 2x Maxwell 6000
• Ground Tackle: 2x 185kg CQR stainless steel bow anchors
• 2x 120m stud linked anchor chains
• Passarelle: Hydraulic full function
• Side Boarding Ladder: Hydraulic retractable self-leveling

Audio/Visual Entertainment Systems

• Televisions: 1x 48" 4K television (main salon); 1x 40" LED 4K screen (Owner's cabin); 3x 24" LED screens (guest cabins); 2x 24" LED (crew mess); Cockpit TV 1x 48" 4K
• Apple TV & Plex Media System
• Stereo Music System: Sonos

Office

• Computers: 1x ships coms PC; 1x ships navigation PC; 2x computer UPS
• Photocopier/Printer: 1x Epson multifunction printer/copier/scanner/fax

Safes

• 2x safes (in Owner's and Captain's cabins)

Tender & Watersport

• Ribeye 600 RIB Tender with Yamaha outboard, 115hp; Length: 19'6", Beam: 16'5", Max speed: 34 knots
• 1x Wakeboard
• 2x Water Ski's
• 3 person Jobe Air Stream
• 2x Standup paddle boards
• Various snorkeling gear
• 2x Scuba equipment
• 1x Bauer Dive compressor
• 4x Fishing gear

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. Hours listed may vary from actual hours due to recent use. Purchaser is encouraged to verify hours prior to purchase. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
