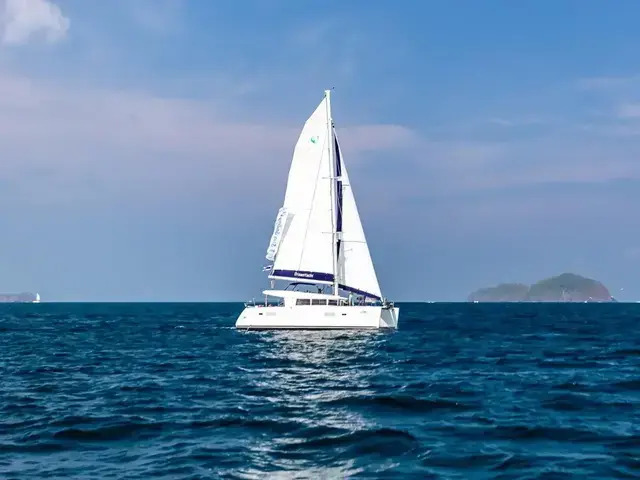

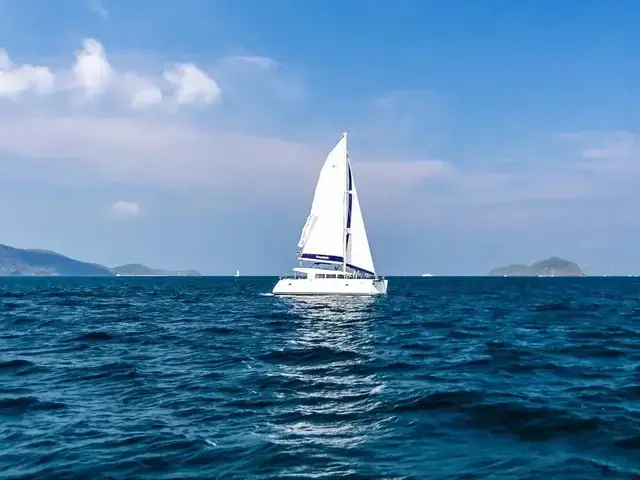

Boat Overview

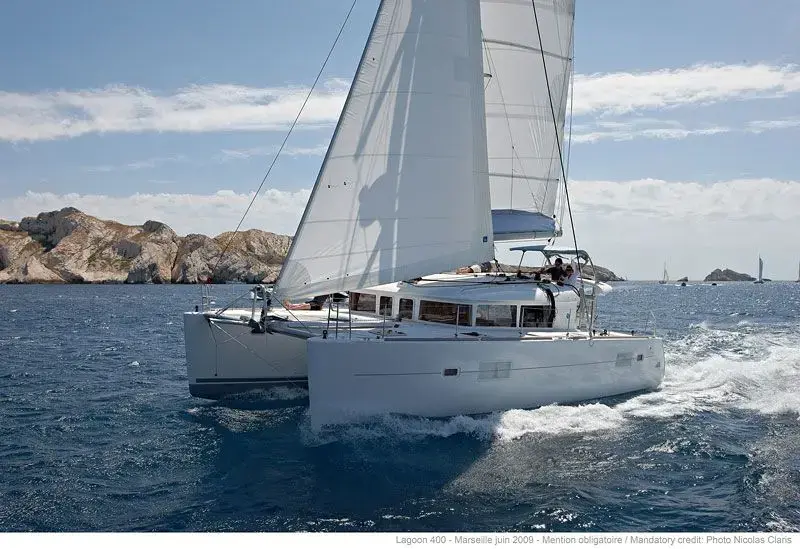

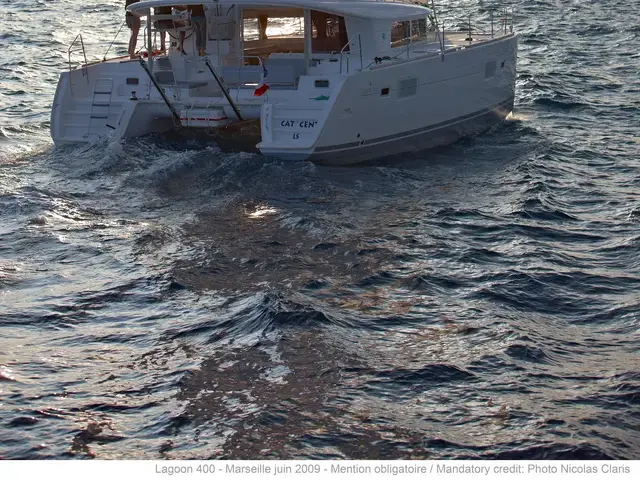

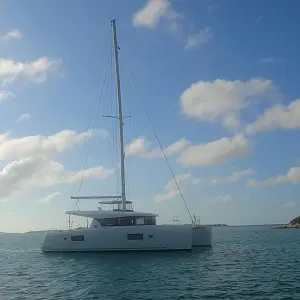

The Lagoon 400 S2 is an elegant and spacious cruising catamaran, designed to offer optimal comfort. With a length of 11.97 meters and a width of 7.25 meters, this boat provides generous indoor and outdoor living space, along with modern equipment for safe navigation.
Manufacturer Provided Description
After seeing over 260 boats built in three years, the Lagoon 400 (launched in 2009) has found a new lease of life through Nauta Design's work on the boat's interior fittings. Suggestions from owners have enabled Lagoon to produce a boat that is even more welcoming, with a greater level of comfort, and resolutely modern: the result is the Lagoon 400 S2, a nod to its famous predecessors, the Lagoon 410 S2 and 380 S2.
Like its predecessors, the Lagoon 400 S2 is designed for coastal or ocean cruises. It can comfortably accommodate 8 with its 3 or 4 double cabins, elegantly fitted, spacious interior, and cockpit and salon on the same level.
Construction
- Composition: high quality polyester and anti-osmosis resin
- White gelcoat infused balsa core
- Solid infused hull bottom
- Vacuum laminated balsa bridge and cot infused with high quality anti-osmosis resin and balsa
- Solid casting mould and sandwich hull
- Laminated or adhesive bulkheads

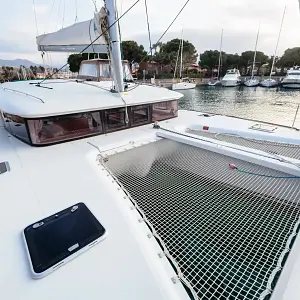

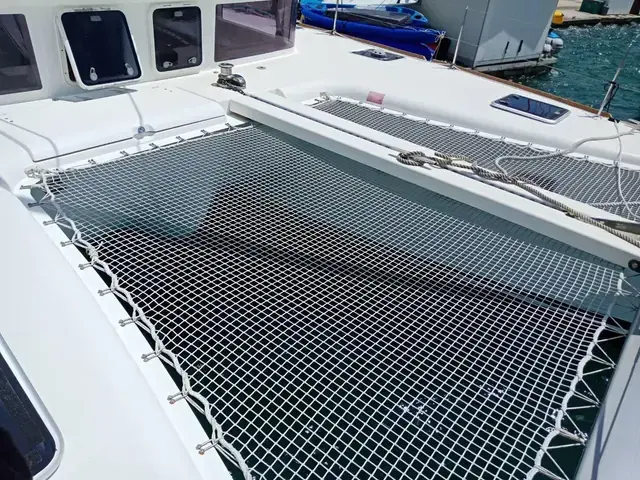

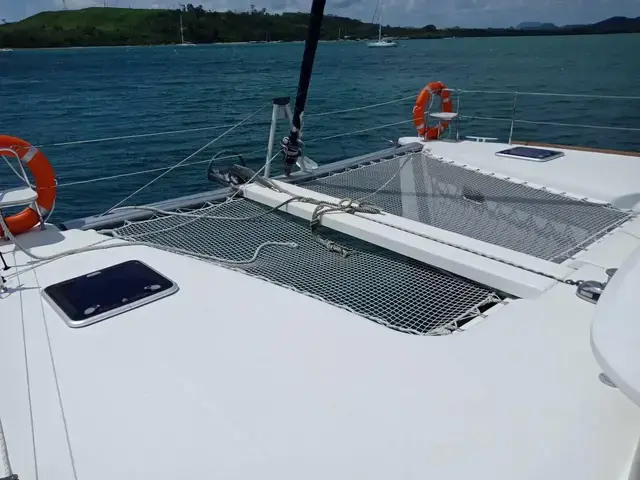

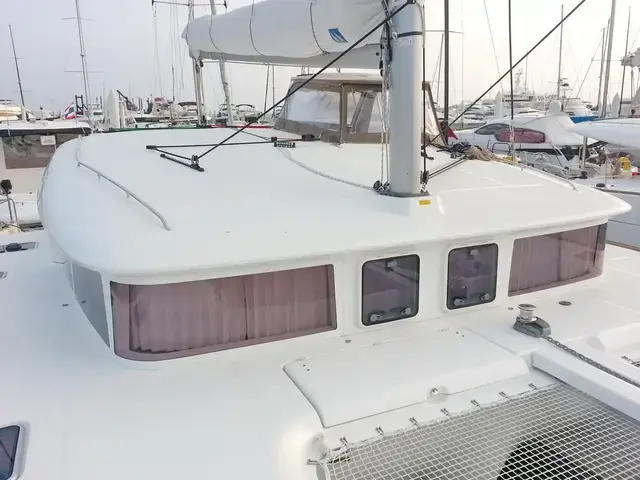

Deck
- 8 mooring cleats
- 1 12V 1000W vertical electric windlass on bridge with 10mm gypsy
- Nylon centre line
- Stainless steel pulpits at stern, one with horseshoe buoy and pavilion
- Composite compression beam with anchor replacement and cleat

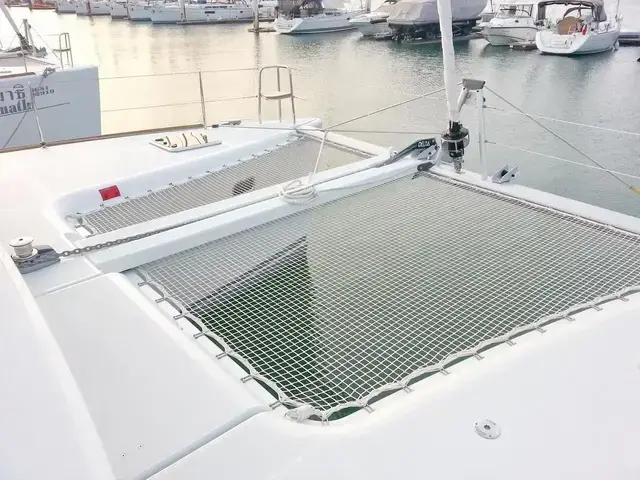

- Aluminium bow pulpit with anchor point and Genoa furler, anchor roller, and navigation light
- 2 stainless steel lifelines on gunwale
- 3 stainless steel lifelines on stern pulpit
- Stainless steel handrail on sides of coachroof
- Stainless steel handrail on Bimini posts

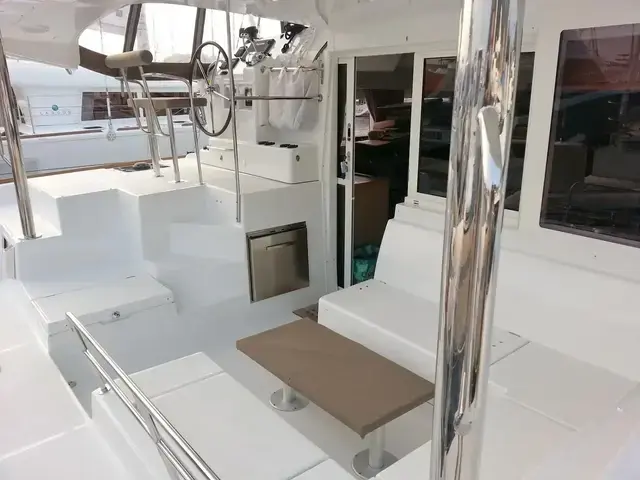

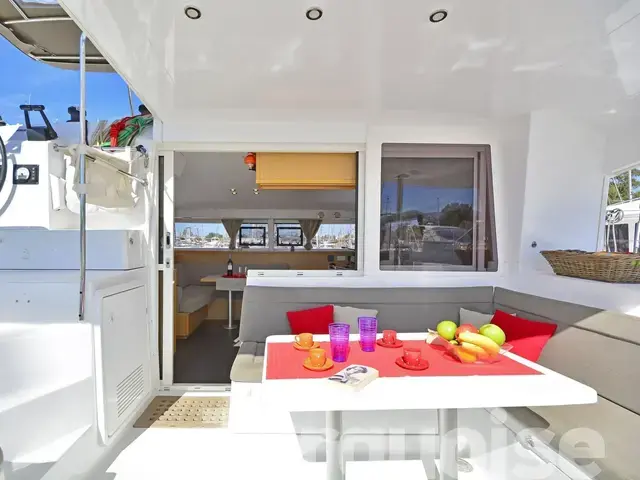

Cockpit
- Cockpit can be used as bridge living area, access to sea via gangway that also provides access to transoms
- Rigid Bimini with lighting provided by 3 spotlights
- Self-emptying cockpit with wooden duckboards

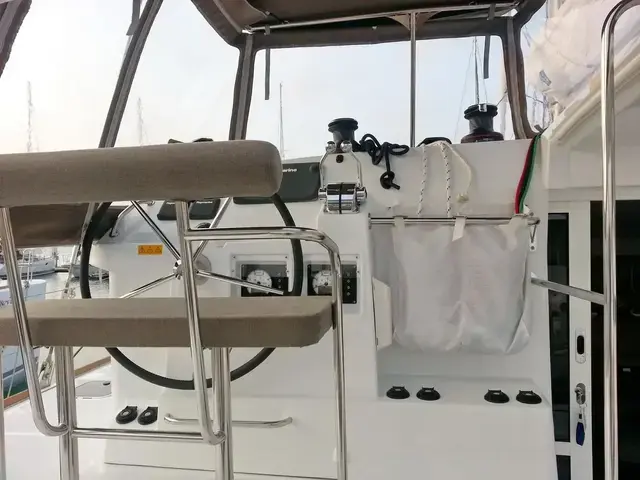

- Sport helm on coachroof bulkhead includes: engine controls, engine instrument panel, electronics area, steering wheel with chafe guard and brake, double bench, access stairway from cockpit with stainless steel banister, pocket, footrest
- Rope steering system, rudder blades with stainless steel spindles, emergency tiller handle
- Bench to starboard side
- Varnished cockpit table interchangeable with galley coffee table
- 1 box under stern bench
- 1 generator technical cupboard under bow bench (generator optional)
- 1 gas cabinet under starboard bench
- 1 storage area under portside Lazy boy, storage for 1 bottle of gas

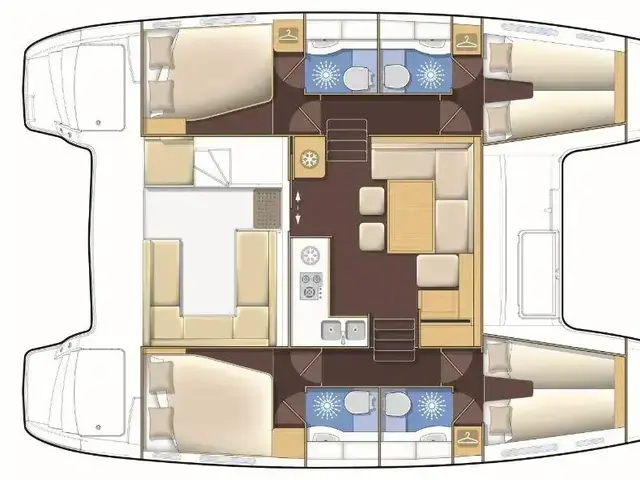

Accommodations

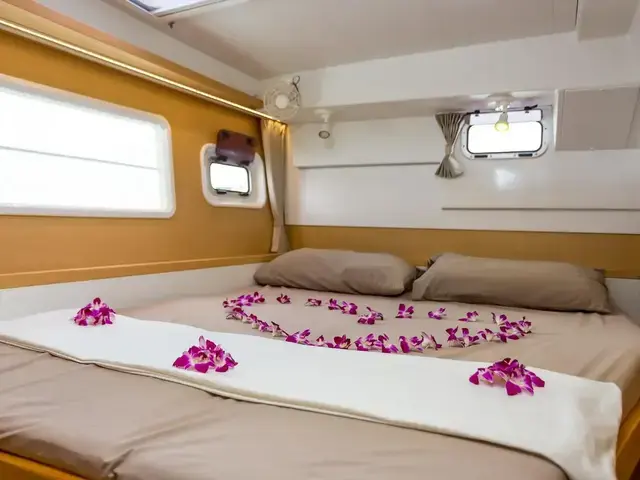

Bow Port Cabin
- Accessed through door from port passage
- Headroom: around 2.08m
- Lighting with 2 x 12V spotlights

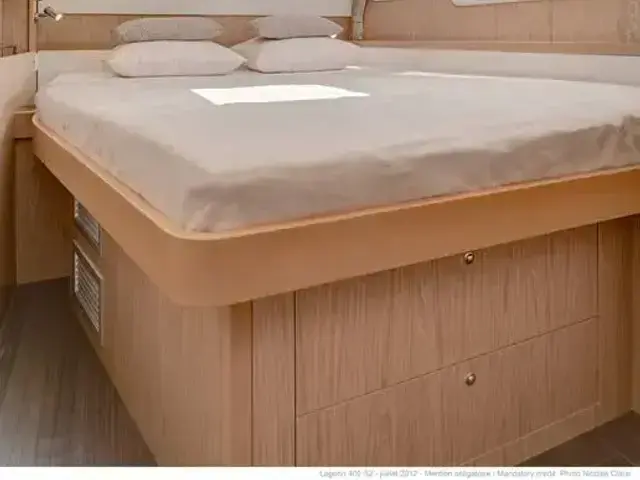

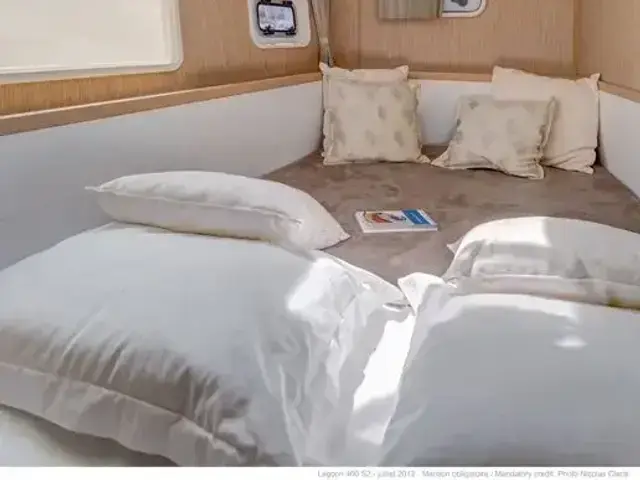

- Convertible double/2 single bed(s): double bed 2.06m x 1.76m x 1.16m at foot, 2 single beds 2.06m x 0.69m x 0.58m at foot
- Drawer and two storage units on front of bed
- 1 under-bed storage unit
- Storage at foot of bed
- 1 wardrobe
- 1 round deck hatch with blind
- 1 opening hull porthole with privacy curtain
- 1 large hull window with privacy curtain
Bow Port Toilet
- Accessed through door from bow cabin
- Lighting with 2 x 12V spotlights
- Headroom: around 2m
- Large manual marine toilet (space for optional sewage tank)
- Polyester sink with pressurized mixer tap
- Composite shower duckboard
- 1 shower head
- 1 round stainless steel towel rack
- 1 double peg
- Shower drained by 12V pump
- 1 round deck hatch with blind
- Toilet paper holder under sink
- 1 high unit with 2 mirrors and shelves
- 1 toothbrush holder above sink
Stern Port Toilet
- Accessed through door from stern cabin
- Lighting with 2 x 12V spotlights
- Headroom: around 2m
- Large manual marine toilet with sewage tank as standard
- Polyester sink with pressurized mixer tap
- Composite shower duckboard
- 1 shower head
- 1 round stainless steel towel rack
- 1 double peg
- Shower drained by 12V pump
- 1 round deck hatch with blind
- Toilet paper holder under sink
- 1 high unit with 2 mirrors and shelves
- 1 toothbrush holder above sink
Stern Port Cabin
- Accessed through door from port passage
- Headroom: around 2.00m
- Lighting with 2 x 12V spotlights
- 2 x 12V spotlights at headboard on ceiling
- Front and side access bed, 2.00m x 1.44m x 1.00 at foot
- Drawer under bed
- Battery isolating switch accessible behind door on front of bed
- Bedside unit on port side
- Wardrobe
- 1 round deck hatch with blind
- 1 opening hull porthole with privacy curtain
- 1 large hull window with privacy curtain

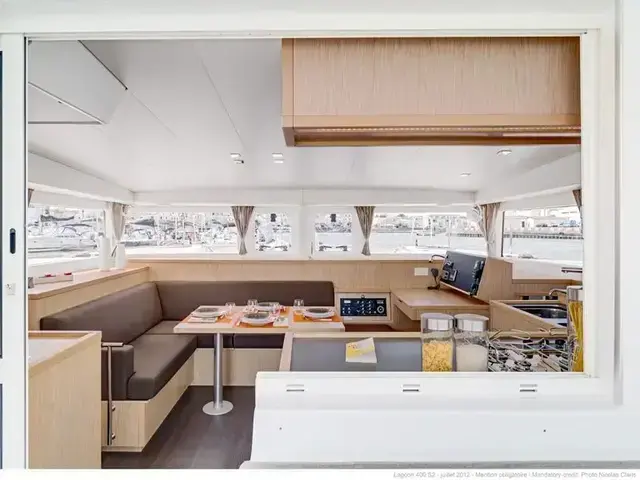

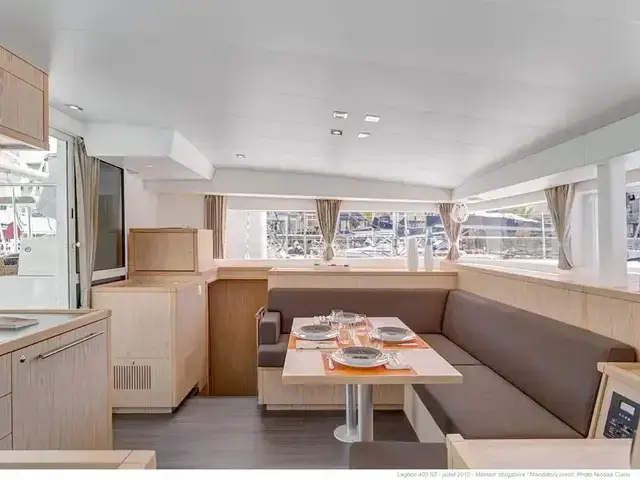

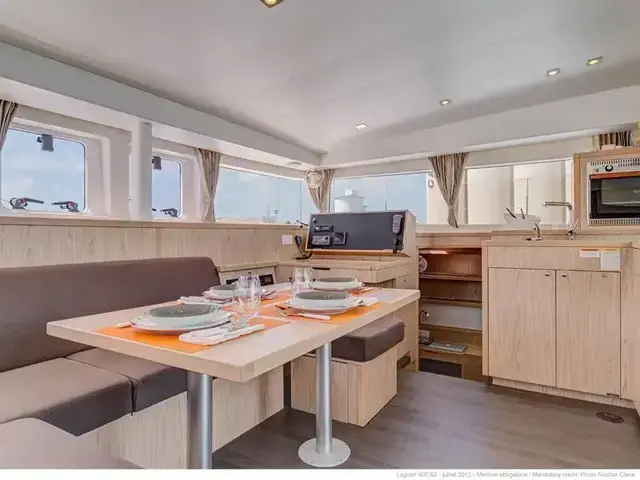

Galley
- Large galley with panoramic view, sliding bay window with lock
- Headroom in galley: 2.13m
- 12V LED spotlights
- 5 seat L-shaped bench
- 1 slide-out chair for map and dinner table
- Varnished wood coffee table interchangeable with large cockpit table (with set of long aluminium legs and short aluminium legs)
- 3 storage units under bench
- 2 panels open on to bow coachroof windows
Engines
- Accessed via gas powered panels in transom
- 2 saildrive 29Hp diesel engines
- Soundproofing on cabin bulkheads in engine compartment
- Air intake through rear panel
- 12V extractor fan
- 1 12V 70Ah gel cell starter battery per engine
- Fuel filter with vessel
- Seawater filter
- Exhaust with water tank
Electrical
- 12V backlit electrical unit in galley near map table
- LCD screen with: voltmeter, ammeter, fresh water gauge, fuel gauge, battery level alarm
- 2 service batteries 12V - 140Ah
- Battery circuit-breaker: Service, under portside stern bench
- Engine, under port side and starboard side stern bench
- LED spotlights

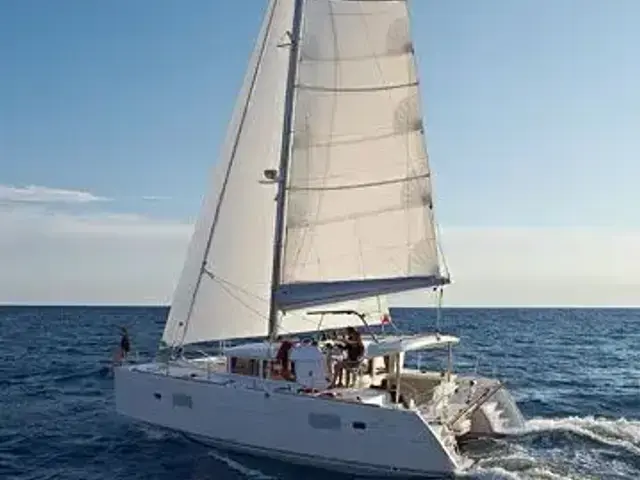

Sails
- 1 mainsail with definite roach, 56m2 with batten set and Lagoon logo
- 1 Genoa on winch with anti-UV protection strip, 28m2
Rigging
-
STANDING RIGGING: 15.69m anodised aluminium mast on coachroof (Air-draught 20.30m), double spreader rig, anodised aluminium boom, 2 stay chains, 1 stay chain on transversal crossbeam
-
RUNNING RIGGING: 1 double-purchase mainsail halyard, 1 Genoa halyard, mainsail sheet led back to helm with adjustment pulley and traveller on rigid Bimini, 2 Genoa sheets led back to helm on port side, 2 Genoa sheet travellers
- 3 winches at helm opposite port stern side of coachroof
- 1 46.2ST winch for: Mainsail halyard, Genoa halyard, Genaker/Spinnaker sheet (optional), Genoa furler winch, Mainsail sheet
- 1 46.2ST winch for: Topping lift, port Genoa sheets, Reefing line 1 (auto), Reefing line 2 (auto), Reefing line 3 (auto)
- 1 46.2ST winch for: Starboard Genoa sheets, port main traveller, Starboard main traveller
- 1 fixed mainsail edge mooring
- A lock on bridge for Genoa furler winch
- 2 adjustable Lazy-Jacks at foot of mast
- 2 winch handles with handle casing
