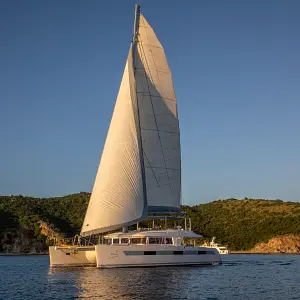

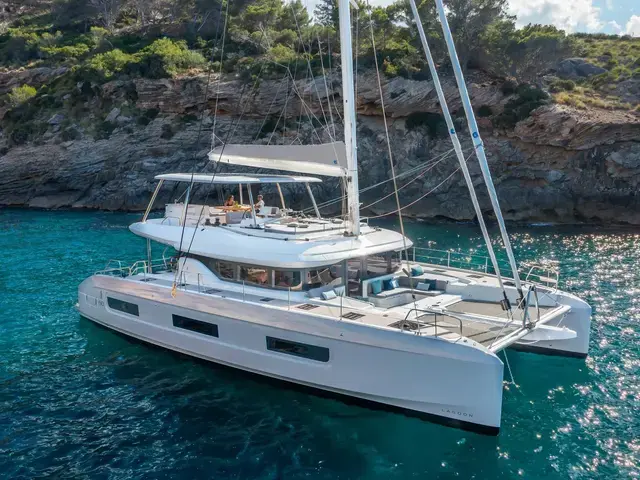

Lagoon 60 for sale in New Orleans, LA United States of America

THE SCENERY OF YOUR DREAMS Step aboard, onto the wide steps of the Lagoon 60! Her inviting aft cockpit instantly reveals its full potential. Life on board has never been so promising. AWARDS Design Innovation Awards 2024 British Yachting Awards 2024 - Winner VIEW OF THE HORIZON Entirely open to the sea, the aft cockpit of the Lagoon 60 affords exceptional freedom of movement. Its opening terraces provide immediate access for swimming. Designed to become your favorite living space, the aft cockpit benefits from the safety and ease of access of gently angled steps. FLUID MOTION Accessed by a door forward of the saloon, and with flush flooring, the vast forward cockpit offers a comfortable, inviting space for relaxation. Upon entering each living space, you are greeted with a panoramic view. Movement about the catamaran is fluid, without obstacles. "A vast forward cockpit, flush with the saloon, reinforces the harmony between interior and exterior living spaces." VPLP Design CONNECTION AND INVITING LIVING SPACES Modular, spacious, and turned toward the exterior, the saloon is adaptable to suit all preferences. Available in versions with a galley or a bar, it benefits from abundant natural lighting, with large vertical windows.

North American Specifications

ONLY FOR BOATS SOLD IN US

110V electric panel and electric equipment
US 110V outlets

Construction

Polyester and high quality anti-osmotic resin
Hull, deck and coachroof laminated by infusion
Balsa core hull and deck, solid laminated under waterline, white gel coat
Laminated or glued plywood composite bulkheads

Steering Gear

2 suspended rudder blades
Hydraulic steering transmission
Emergency tiller

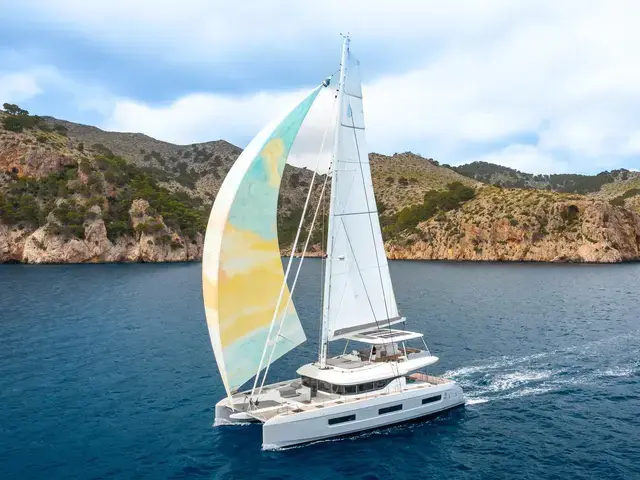

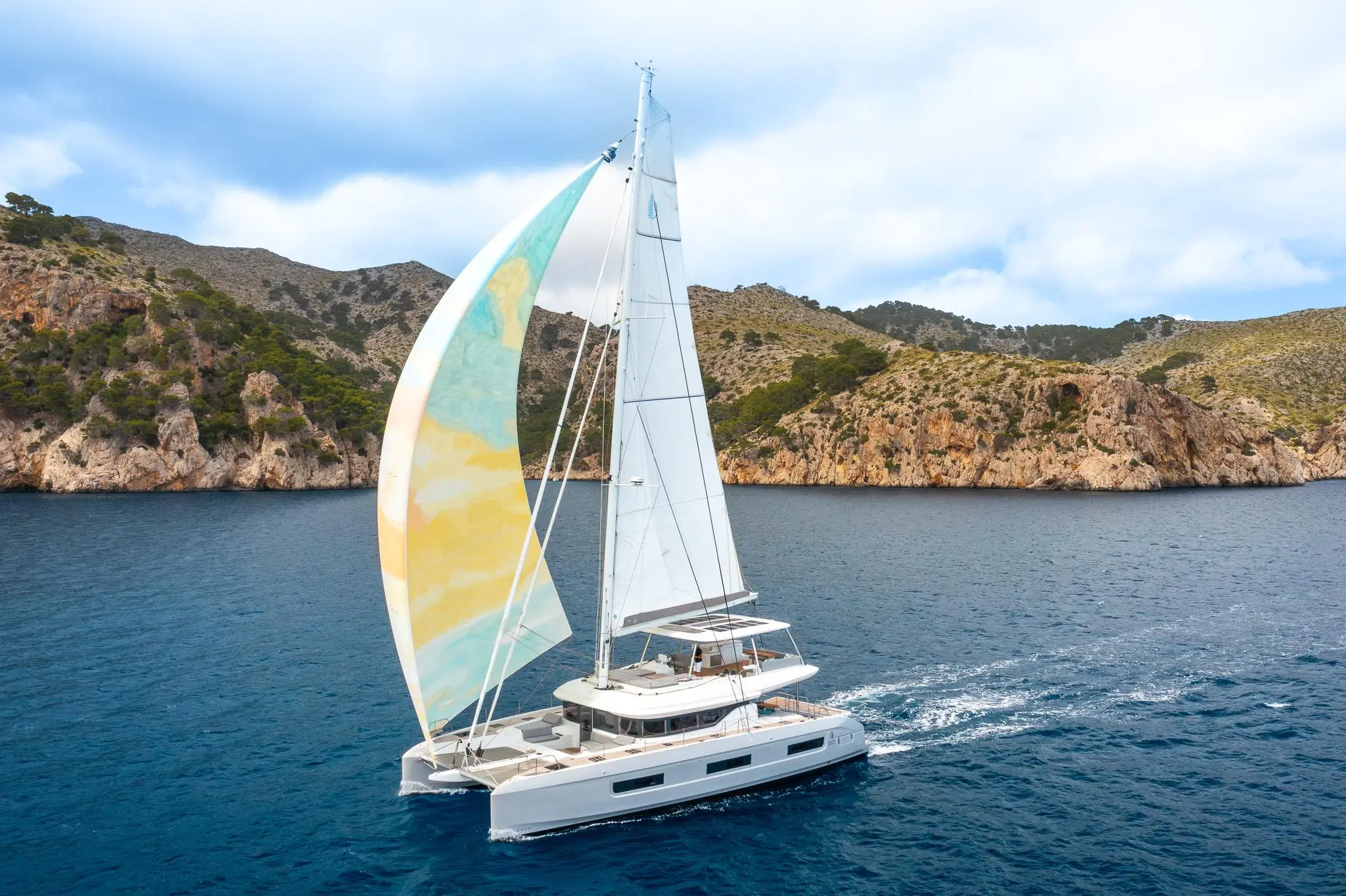

Sails And Rigging

SAILS

High roach mainsail in Dacron with battens
Genoa in Dacron with UV protective band

STANDING RIGGING

Anodized aluminum mast
Anodized aluminum boom
2 spreaders rigs
Coated shrouds
Electric furling forestay for genoa
2 forestay chainplates and 1 shroud chainplates
Adjustable lazy-jacks

RUNNING RIGGING

Mainsail halyard
Genoa halyard
Mainsheet
2 genoa sheets
3 reefing lines
Genoa furling line
Mainsail traveler on electric furler
Boom uphaul
Mainsheet fuse

Hardware

3 manual winches size 70.2 STA
1 electric winch size 70.2 STA
Footblocks & clutches for halyards, reefing lines and sheets
Genoa car on port and starboard
Anodized aluminum crossbeam with fixing point for the genoa forestay

Mooring

Composite longitudinal crossbeam with integrated chain run and mooring cleat
10 mooring cleats
3000W / 24V electrical windlass with vertical axis, chain 14 mm

Engines

2 diesel engines YANMAR 4LV150 150CV SailDrive
Fixed 4-blade propeller
Sea water filter
Electrical engine throttles at the helm station
Engine compartment ventilation: 24V electrical extraction in the aft transom
Fuel circuit:

2 tanks of de 650L / 172 US gal
Fuel filter systems
Fuel shut off valve
Gauge at the general control panel on touch screen

Plumbing

FRESH WATER CIRCUIT

Fresh water tank: 960L with gauge at the chart table
Fresh water circuit with 1 main water group 36L/mn
4 and 5-cabin version: 2 water heaters 80L / 16 US gal water heater, 220V engine exchanger

GREY WATER CIRCUIT

Grey water drainage cockpit and salon direct to the sea
Shower and sink draining integrated into shower tray composite. Dedicated unitary pump.

BLACK WATER CIRCUIT

Black water holding tanks:

4-cabin version: 4 x 110L + 50L (forward peak)
5-cabin version: 5 x 110L + 50L (forward peak)

Tank drain by gravity or deck plate
Electric toilet freshwater

BILGE PUMP CIRCUIT

1 manual bilge pump per hull
1 automatic pump per forward peak
1 automatic and electric bilge pump in each engine compartment
Connection of the engine compartments and forepeaks to the main pump and sump
Bilge pump management on general control panel
Self-draining cockpit compliant with CE certification

Electrical

Seanapps connectivity – Battery voltage and GPS position on mobile app

DC PPOWER CIRCUIT 24V

2 engine batteries 50Ah (AGM)

1 dedicated charger 25A
2 alternators 12V – 130A
Battery shutoff switch in each engine compartment

6 service batteries 210Ah (Gel)

2 alternators 24V – 110A
Battery shutoff switch in each engine compartment

ELECTRIC DISTRIBUTION PANEL

24V general distribution panel
USB socket 24V included in the electrical panel and helm station
Navicolor screen

220V AC CIRCUIT

Inverter 24/220V 50Hz 5000VA

LIGHTING

LED interior lighting and reading lights
Lighting in engine compartment
LED navigation lights

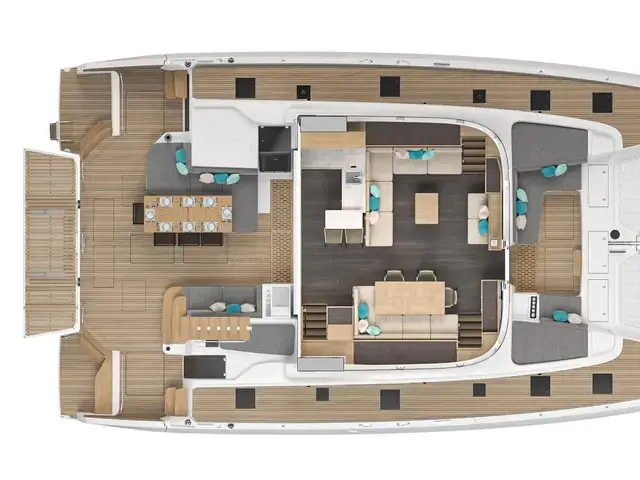

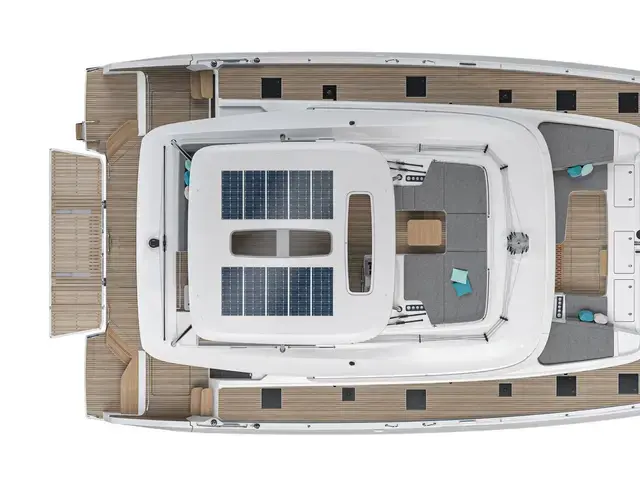

Deck Layout

TRANSOM

Hot/cold deck shower on portside
S/S telescopic swim ladder with fixed handles on portside

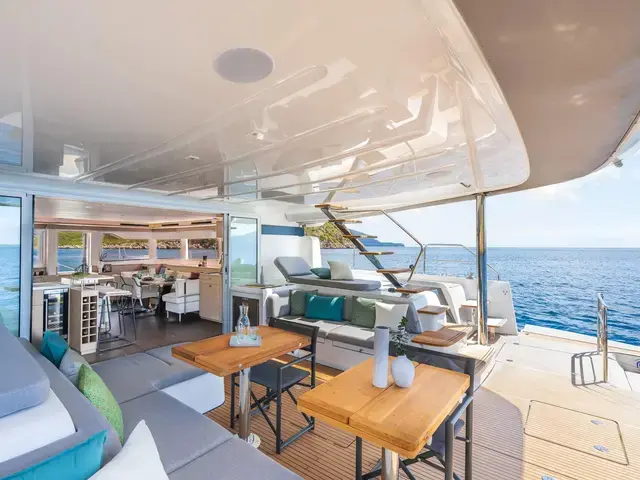

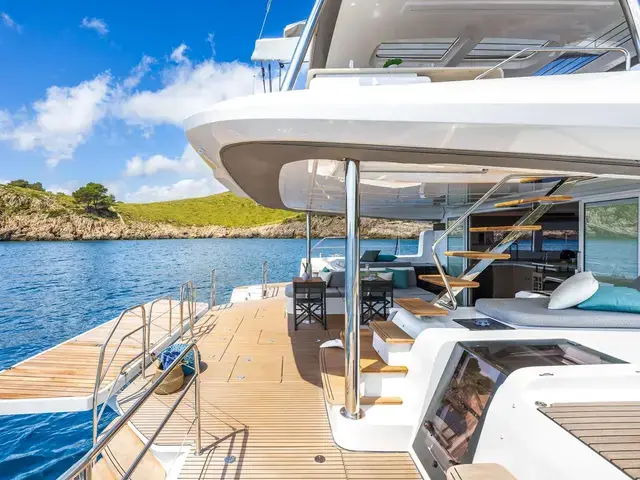

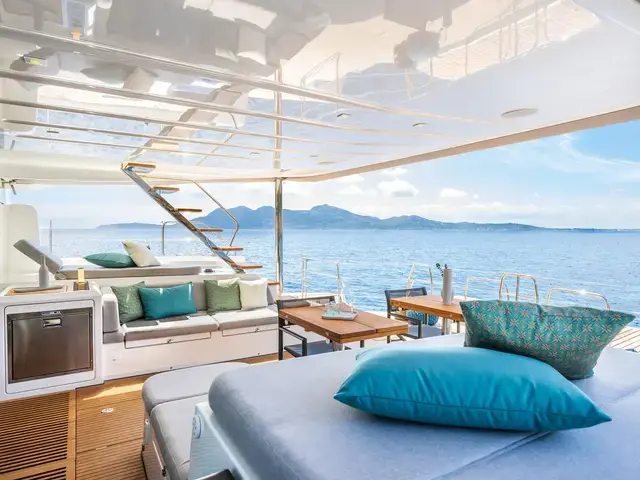

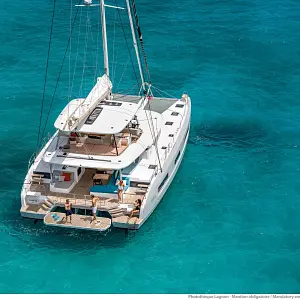

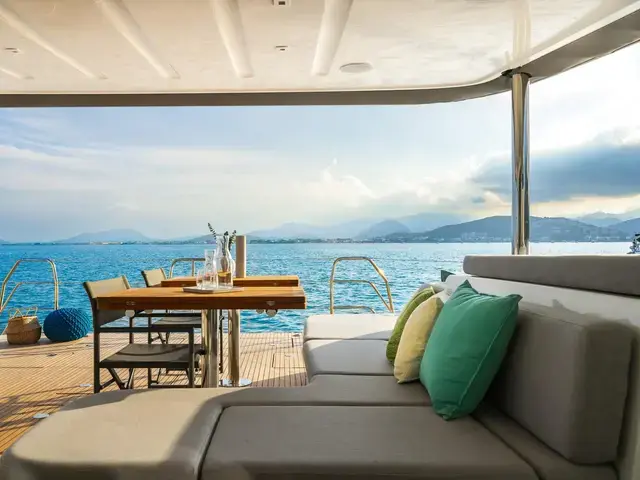

AFT COCKPIT

Seating and lounging area on port and starboard sides
Polyester cockpit table
Exterior furniture on starboard:

Chopping board
Tray and cup holder
Door with shelves

Cockpit flush-decked with saloon
Non-slip cockpit floor
Self-draining cockpit with wooden grating

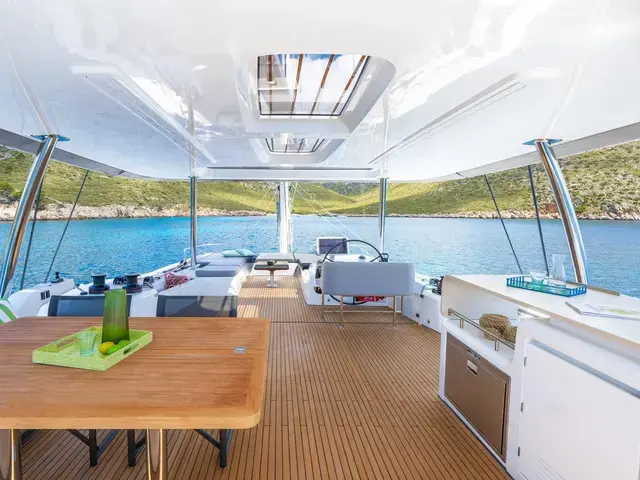

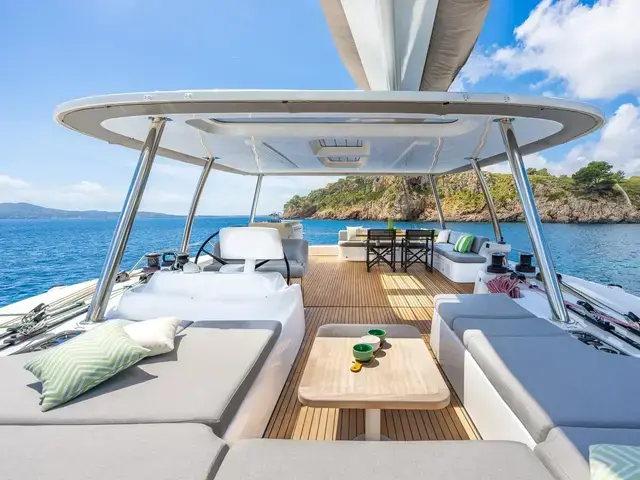

FLYBRIDGE

Stairway access from cockpit on starboard
Double helm seat
L-shaped seating area with storage lockers
Sunbathing area aft and forward of flybridge
Steering wheel 900mm
Engine throttles and panel
Console for screen and instrumentation
Storage bag for halyards

FORWARD COCKPIT

U-shaped seating and sunbathing area
Nylon netting

BOW LOCKERS

Access through LEWMAR T70 deck hatches
Grey non-slip floor
LED lighting

STANCHIONS AND LIFELINES

Pushpits: H850 mm / 29
Stanchions and forward pushipts: H700 mm / 24
Double S/S lifelines

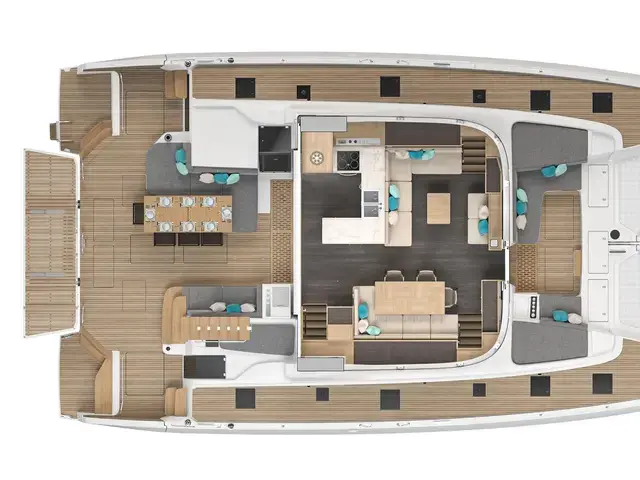

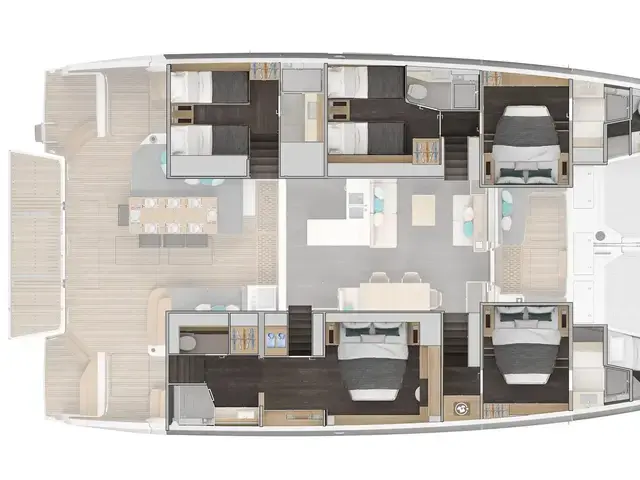

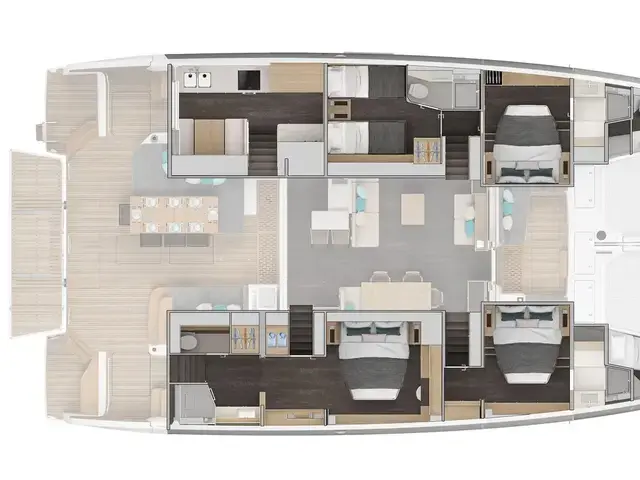

Interior Layouts

GENERAL

Construction in Alpi Sand Oak UV finish plywood, horizontal grain
Laminated floor: Dark Oak
100% recycled upholstery, adapted to the marine environment
PVC foam ceiling, upholstered plywood linings
Eco-Cleaning Pack
Furniture interiors in Alpi Sand Oak UV finish

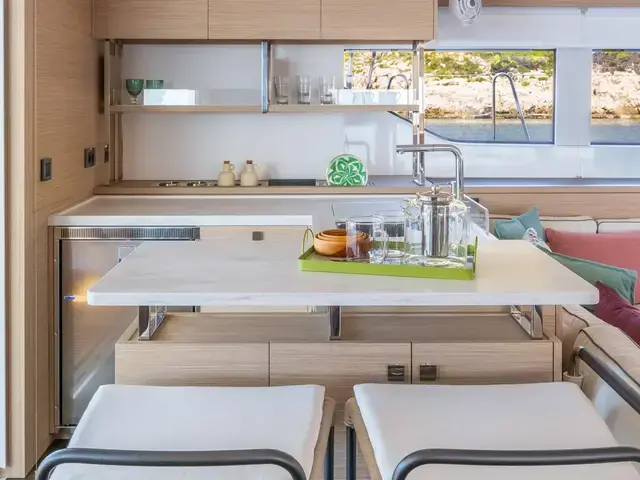

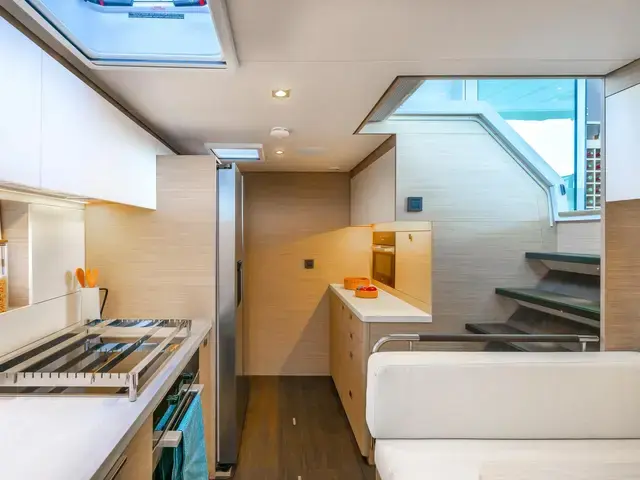

LATERAL GALLEY 4-CABIN VERSION

Direct access from the aft cockpit
Corian countertop
S/s sink with Corian cover
Hot/cold mixer tap
Miele induction cooktop
Miele electric oven
Bin 42L / 11 US gal
Fridge / Freezer 634L / 168 US gal 220V
High and low-level storage units

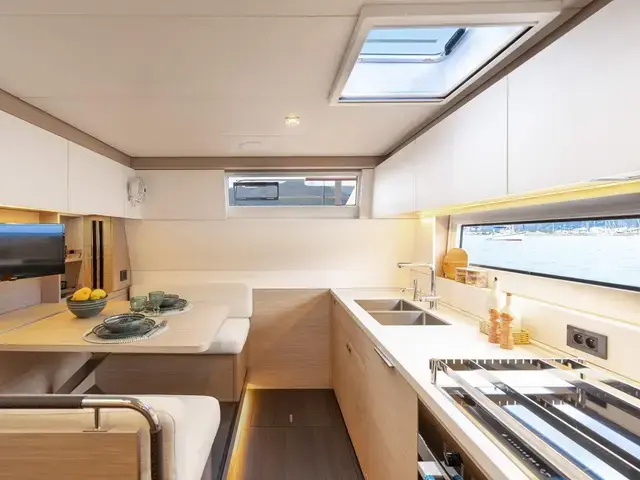

GALLEY 5-CABIN VERSION

U-shaped galley
Corian countertop
S/s sink with Corian cover
Hot/cold mixer tap
Miele induction cooktop
Miele electric oven
Bin 50L / 13 US gal
Fridge / Freezer 289L / 76 US gal 220V
High and low-level storage units

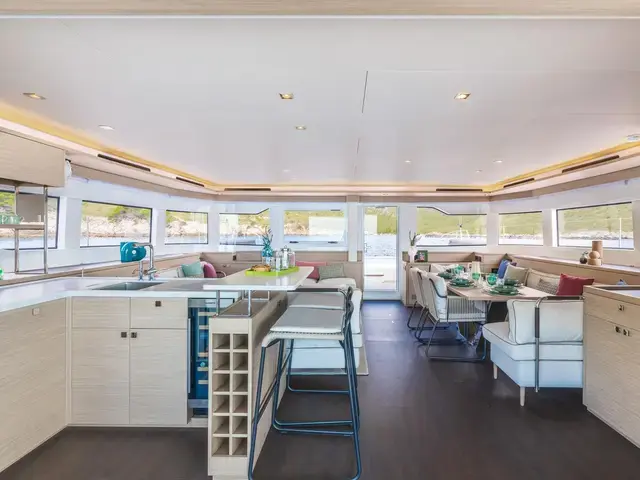

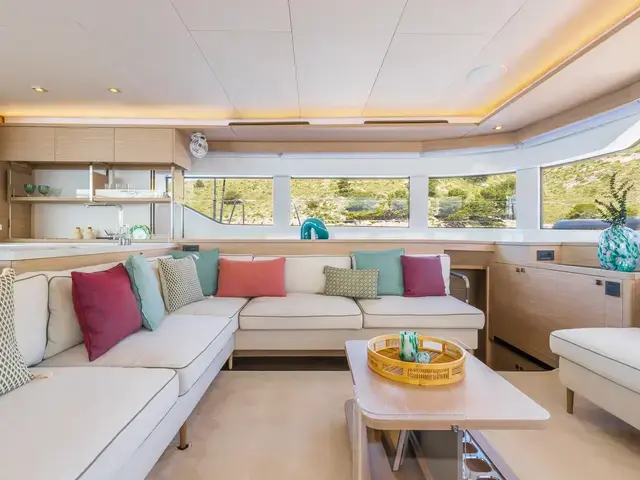

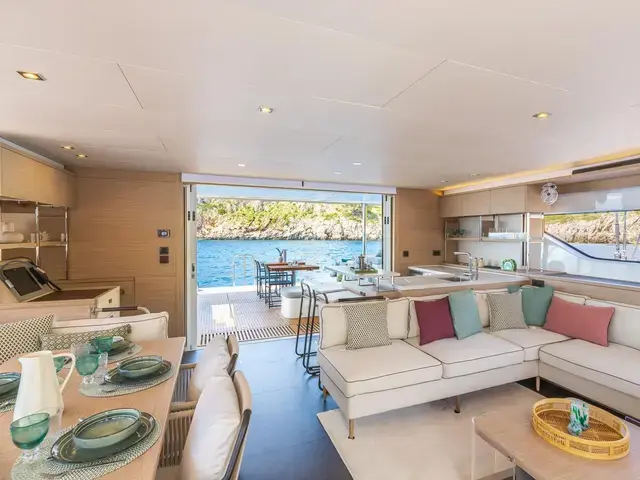

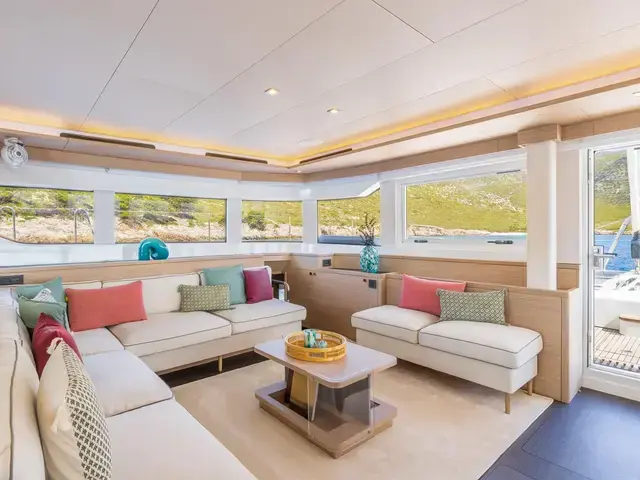

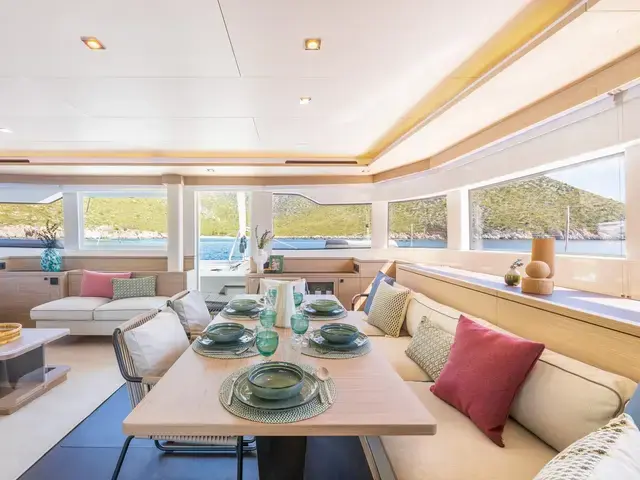

SALON

L-shaped benches
High and low wooden table
Console with navigation instruments on port side
High and low storage units and bottle rack
4-cabin version only:

Bar unit with Corian worktop

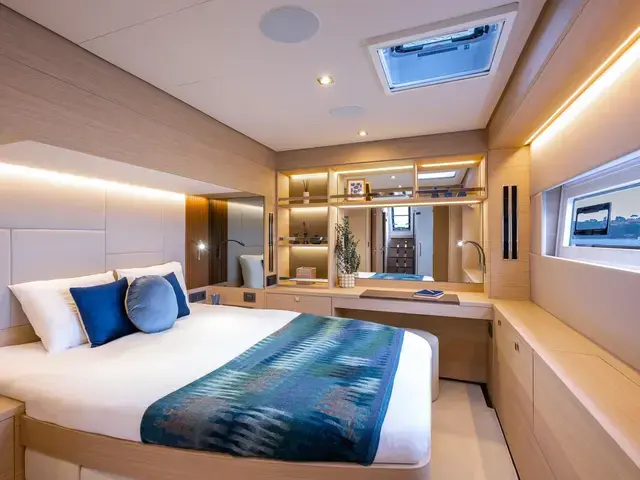

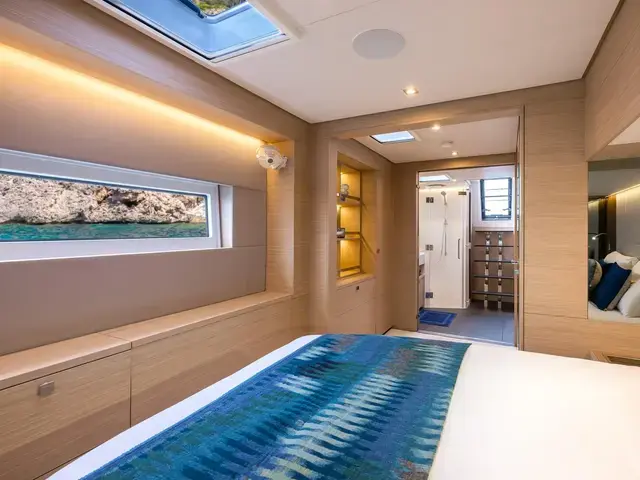

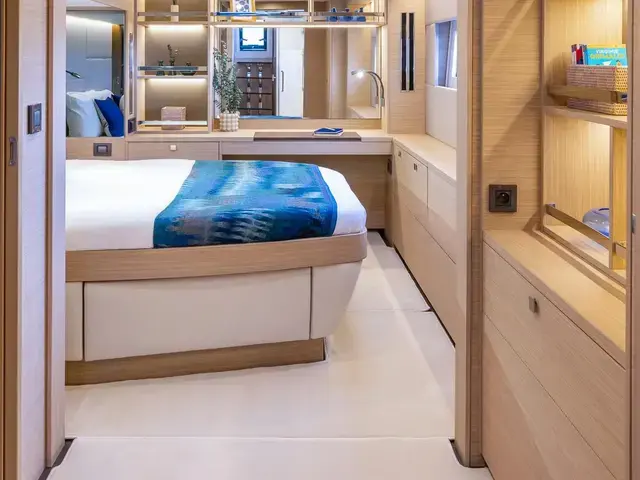

OWNERS CABIN

Private access from the aft cockpit
Double bed with lateral access (2,00 x 1,70 m / 67 x 57)
Treated cellular foam mattress
Bedside tables
Under bed storage
Storage units with shelves, drawers and wardrobe
Desk with 1 stool
T10 and T44 opening flush deck hatches

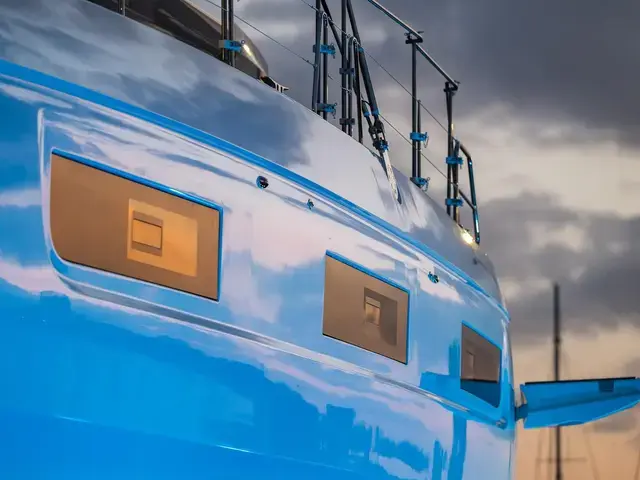

Fixed hull window in PMMA with integrated opening portholes and roller blinds

OWNERS HEAD

Private access from the Owners cabin
Corian countertop
Integrated sink with hot/cold mixer tap
High and low-level storage units
Separated shower with PMMA door
Separate electric toilet with storage space
Panneaux de pont ouvrants flush T10 et T44
T44 and T10 opening flush deck hatches
Fixed hull window in PMMA with integrated opening porthole and roller blinds

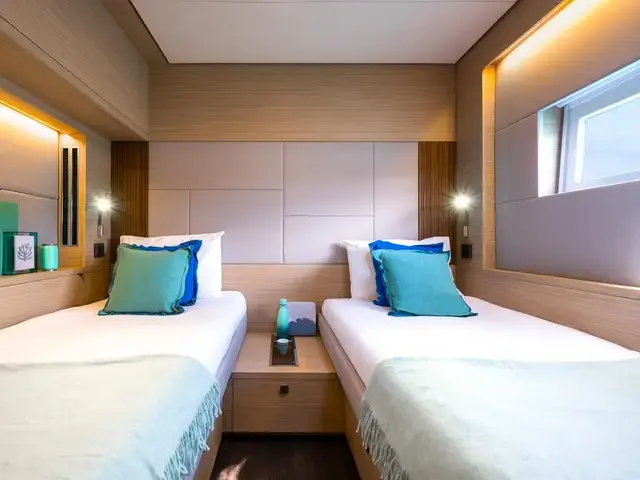

AFT CABINS 5-CABIN VERSION

Modular single beds (2,00 x 0,85 m / 67 x 29)
Treated cellular foam mattress
Bedside table
Storage units with shelves and wardrobe
T44 and T10 opening flush deck hatches
Fixed hull window in PMMA with integrated opening porthole and roller blinds
Private access to the dedicated head

LATERAL CABIN

Modular single beds (2,00 x 0,85 m / 67 x 29)
Treated cellular foam mattress
Bedside table
Storage units with shelves and wardrobe
T44 opening flush deck hatche
Fixed hull window in PMMA with integrated opening porthole and roller blinds
Private access to the dedicated head

FORWARD CABINS

Double bed with lateral access (2,00 x 1,60 m / 67 x 53)
Treated cellular foam mattress
Bedside shelves
Under bed storage
Storage units with shelves, drawers and wardrobe
T44 and T10 opening flush deck hatches
Fixed hull window in PMMA with integrated opening portholes and roller blind
Private access to the dedicated head

HEADS

Corian countertop
Integrated sink with hot / cold mixer tap
High and low-level storage units
Separated shower with PMMA door
Electrical toilet
T10 or T44 opening flush deck hatch (depending on the head)
Fixed hull window in PMMA
