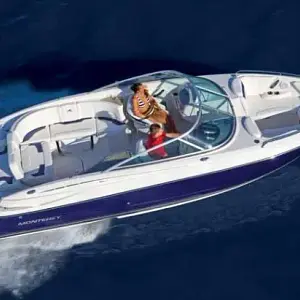

SPEEDY AND SLEEK
The high performance ride you've been waiting for, the 224FS's luxurious features include back-lit Faria gauges with stainless steel bezels in the helm, spacious seating, ample storage, and a large sun deck. Plus, sporty features like our exclusive air assist chine makes fast handling a breeze while the optional factory installed wakeboard tower makes catching big air an out of the world experience.
SPECUS UNITMETRIC UNITDESCRIPTION
SPEEDY AND SLEEK
The high performance ride you've been waiting for, the 224FS's luxurious features include back-lit Faria gauges with stainless steel bezels in the helm, spacious seating, ample storage, and a large sun deck. Plus, sporty features like our exclusive air assist chine makes fast handling a breeze while the optional factory installed wakeboard tower makes catching big air an out of the world experience.
SPECUS UNITMETRIC UNITDESCRIPTION
LOA W/Swim Platform22' 9"6.93MLength Overall, including add-on swim platform, not including bow rail or anchor roller
Beam8'6"2.59MWidth of hull at widest section including rubrail
Deadrise20deg20degAngle of keel measured at transom
Draft - Stern Drive Up23"58.4CMDepth of hull to lowest point, stern drive trimmed up
Draft - Stern Drive Down36"91.4CMDepth of hull to bottom of stern drive, trimmed down
Bridge Clearance W/Tower7'5"2.3MHeight from water to highest point on arch, normal load
Fuel Capacity55GAL208.2LCapacity of fuel tank in gallons/liters
Water Capacity10GAL37.9LCapacity of water tank in gallons/liters
Dry Weight3,500LBS1,588KGMass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons12 (US)10 (CE)Maximum Rated Persons Capacity
Max Persons Weight1980LBS750KGMaximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight2115LBS900KGMaximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power300HP224KWMaximum horsepower for safe operation
CANVAS
Bimini Top w/Embroidered BootStandard
COCKPIT
Cooler, 25 Qt. Carry-OnStandard
Cooler, Molded-InStandard
Cooler, Port Console w/Overboard DrainStandard
Courtesy Lighting, Blue/White, LED 12 VStandard
Drink Holders, Stainless Steel (10)Standard
Fiberglass Cockpit Liner w/Non-Skid & DrainageStandard
Glove Box, Port Side, LockableStandard
Grab Handles, Black Urethane w/Stainless Steel InsertsStandard
Outlet, 12 VStandard
Stereo, Fusion Satellite Ready AM/FM USB w/Bluetooth & (4) Rockford Fosgate 6.5" SpeakersStandard
Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry DeckStandard
Storage, Side PanelsStandard
ELECTRICAL SYSTEM
Battery Switch, Single, On/OffStandard
Battery TrayStandard
Weatherproof Electrical System w/Individual Circuit ProtectionStandard
ENGINE COMPARTMENT
Automatic Bilge PumpStandard
Fire PortStandard
Forced Air Ventilation w/Concealed VentsStandard
Gel Coated Bilge & Engine CompartmentStandard
FUEL SYSTEMS
Double Clamped Fuel LinesStandard
HELM
Instrumentation w/Fog Resistant Gauges & Low Glare Night LightingStandard
MP3 AdapterStandard
Outlet, 12 V USBStandard
Steering Wheel, Black w/Silver InsertStandard
Steering, Power Assisted, tiltStandard
Switches, Lighted WeatherproofStandard
HULL & DECK
Air Assist ChineStandard
Barrier Coat, VinylesterStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing PlateStandard
Cleats, Pull Up, Stainless Steel (6)Standard
Colored Hull SidesStandard
Custom Hull Side GraphicsStandard
Drain Plug, Brass GarboardStandard
Horn, Electric, Flush MountStandard
Lights, NavigationStandard
NMMA CertifiedStandard
Rub Rail, Heavy Duty w/Stainless Steel InsertStandard
Ski Tow, Stainless SteelStandard
Storage, Anchor w/Fiberglass HatchStandard
Swim Platform, Extended w/Telescoping Recessed LadderStandard
Swim Platform, Integral w/Ski Rope StorageStandard
Thru Hulls, Stainless Steel, Above WaterlineStandard
Transhield Shipping CoverStandard
Windshield, Onyx, Curved Tempered w/Walk-ThruStandard
SEATING
Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & StarboardStandard
Seat Cushions w/Storage Compartments, BowStandard
Sundeck w/Bench Seat & StorageStandard
CANVAS
Bow and Cockpit Cover-OnyxOptional Feature
Bow and Cockpit Cover-RioOptional Feature
Bow and Cockpit Cover-Royal BlueOptional Feature
Bow and Cockpit Cover-SapphireOptional Feature
Bow and Cockpit Cover-TaupeOptional Feature
COCKPIT
Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay Option) Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay Option)Optional Feature
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay Option) Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay Option)Optional Feature
Cockpit Table w/Pedestal & Vertical Side Mount BaseOptional Feature
Premium Stereo Upgrade Package: Includes (4) Rockford Fosgate M2 Speakers w/Integrated LED Lights & 4 Channel Amplifier (Requires Dual Battery Switch Option)Optional Feature
Stereo Remotes (Helm and Stern)Optional Feature
Swim Platform Inlay (SeaDek: Terra) Swim Platform Inlay (SeaDek: Terra)Optional Feature
Swim Platform Inlay (SeaDek: Gray) Swim Platform Inlay (SeaDek: Gray)Optional Feature
Transom Shower w/pressurized water (Cold Only)Optional Feature
Woven Cockpit FlooringOptional Feature
ENGINE COMPARTMENT
Battery Charger w/Deck Plug (Standard in Australia)Optional Feature
Dual Battery Switch with Additional Battery TrayOptional Feature
Fire Extinguishing System (Domestic Only, Std. In EU Countries & Australia)Optional Feature
HELM
CompassOptional Feature
Depthsounder w/shallow water alarm (N/A W/A67 Option)Optional Feature
Transom Tilt SwitchOptional Feature
Simrad GO5XSE GPS/Chartplotter/Sonar w/Transducer (Includes Depthsounder)Optional Feature
HULL & DECK
Colored Hull Bottom (Other Than Arctic Ice)Optional Feature
Ski-Tow Pylon, RemovableOptional Feature
Stainless Steel Package Includes: Telescoping & Recessed Boarding Ladder At Bow, Bow Hand Rails, Docking LightsOptional Feature
Wakeboard Tower, Black (Hinged To Fold Down)Optional Feature
Wakeboard Tower, White (Hinged To Fold Down)Optional Feature
SEATING
Arena SeatingOptional Feature
Bow Filler Cushions
