Boat not available.

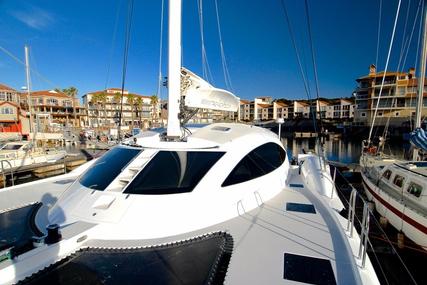

Tag Yachts 60 for sale in South Africa

LOCATION

South Africa

YEAR

2015

LENGTH

60.01 ft.

DETAILS

Condition

Used

Year

2015

Make & Model

Tag Yachts 60

Boat type

Sail

Length

60.01 ft.

Fuel Type

Diesel

Location

South Africa

DESCRIPTION

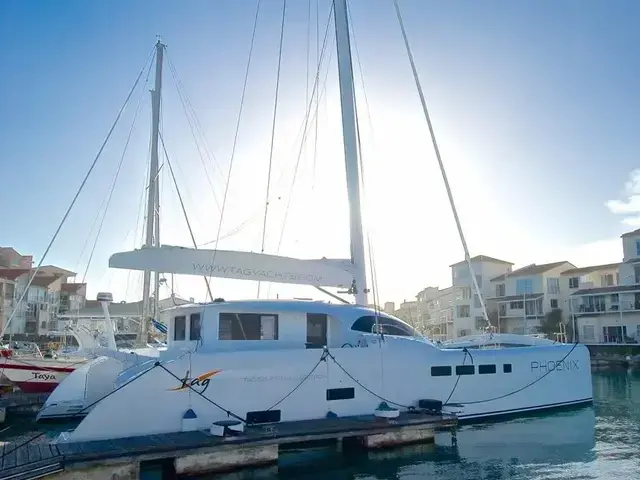

TAG Yachts has one company demonstrator TAG 60 XR - Full Carbon version with hydraulic functions and safety features available for delivery now. This yacht is available with very low engine and generator hours.

This yacht includes many extras. There are still a few options a buyer could choose while the yacht is still at her home port. This yacht is fully specified with advanced electrical systems with Li-ion batteries and digital Mastervolt switching systems.


TAG Yachts has one company demonstrator TAG 60 XR - Full Carbon version with hydraulic functions and safety features available for delivery now. This yacht is available with very low engine and generator hours.

This yacht includes many extras. There are still a few options a buyer could choose while the yacht is still at her home port. This yacht is fully specified with advanced electrical systems with Li-ion batteries and digital Mastervolt switching systems. All system items are premium items selected to be the best in terms of function, reliability and ease of use and service worldwide.

If you are interested in a performance cruising catamaran which sails exceptionally well in light winds and challenges performance racing monohulls and is easy to sail short handed with safety systems and a unique apartment style living environment.


Engines
Total Power: 150 HP
Engine 1:
Engine Brand: YANMAR
Engine Model: 4JH
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port
Engine Hours: 15
Drive Type: Sail drive
Engine Power: 75 HP
Engine 2:
Engine Brand: YANMAR
Engine Model: 4JH
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard
Engine Hours: 15
Drive Type: Sail drive
Engine Power: 75 HP
GENERAL SPECIFICATIONS
  • LOA (Hulls) 18.3m 60ft
  • LWL (No payload) 17.2m 57ft
  • Beam overall 8.4m 27.6ft
  • Draft hull 0.6m 2ft
  • Draft rudder 1.25m 4ft
  • Draft centerboard down 2.5m 8.2ft
  • Bridge deck clearance 1.3m 4.3ft
  • Displacement with no payload 14,600kg 27700lbs
  • Displacement with 100% payload (3,000kg) 17,600kg 34300lbs
  • Fuel capacity 1200litres 210USgal
  • Forpeak Fuel capacity 400litres 105USgal
  • Water capacity 800litres 210USgal
  • Black water capacity 400litres 105USgal
  • The TAG 60 is built to CE Standards
  • Class A - Open Ocean Vessel

DESIGN TEAM AND CONSULTANTS
  • Design: YYD - Greg Young
  • Enginneering Design: SP HIGH MODULUS - NZ
  • Rig Design: AES NZ - Chris Mitchell

CONSTRUCTION

• Hull, deck, bulkheads

• Full Carbon Epoxy Structure by High Modulus with FEA

• SP Gurit Ampreg 22 Epoxy resin system

• Hexel Carbon fabrics

• Corecell M foam structural foams, various densities

• Vacuum, post cured process, samples lab tested at SP GURIT

• 17 transverse full carbon bulkheads

• Spabond 345 for all structural bonding

Painting and Fairing

• Deltron Fairing and Priming systems

• 2K White High Quality flat colour paint

• Mast and boom to match Hull finish

• Interdeck Nonskid deck paint -­‐ Light grey

• Interspeed Balck Antifouling 3 coats plus 2 extra coats in high wear areas


SYSTEMS

DC Electrical


• 24V DC Mastervolt management system

• Li-­‐ion batteries Mli/160-­‐Mastervolt-­‐800Ah

• Mastervolt Digital Switching System

• Marine Grade tinned silicon wiring CE standards

• 2x Mastervolt 150 amp 24 V alternators

• Mastervollt Chargers-­‐Master100A-­‐24V

• LED Lighting -­‐ROCA throughout the yacht

• Silicone tinned Marine Grade Wiring

AC Electrical

• 12 kw Fisher Panda AC generator linked to Mastervolt system (55 hours)

• Mastervolt 220V inverter-­‐2x2.5 kw sychronised 120A each

• Auto Transfer switch -­‐Master Volt-­‐Masterswitch

• 1 x 220V outlet per cabin plus network cable

• 4 x 220V in saloon plus network cable

• 1 x 220V outlet in Galley

Shorepower

• 220V 32 amp shorepower input

• Mastervolt MassGI 7 Isolation transformer

• Auto select shore power/generator

• 15m Marinco Shore power cable

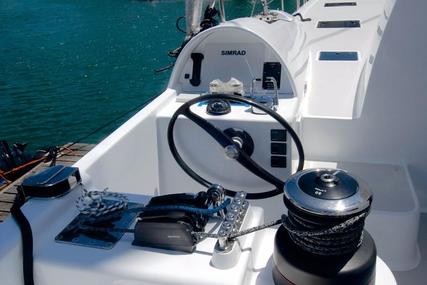

Steering

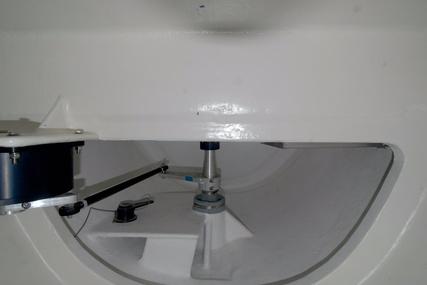

• Jefa Solid link steering system

• Jefa Autopilot

• Epoxy, Rudder tubes

• Jefa Upper and lower self aligning bearings

• Custom TAG carbon steering wheels

Propulsion

• 2 x 75 HP Yanmar 4JH Series Diesel Engines (15 hours)

• Saildrives-­‐SD60

• Bruntons 3 blade Varifold Folding Propellers

• Panel B-­‐Control panels

• Glendinning Throttles

• 2x 400 Liters Aluminium diesel tanks and 2x 200liters forpeak

• Fuel filler on deck with spillage dam, Tank vents

• BEP ultrasonic fuel tank senders monitored by Mastervolt system

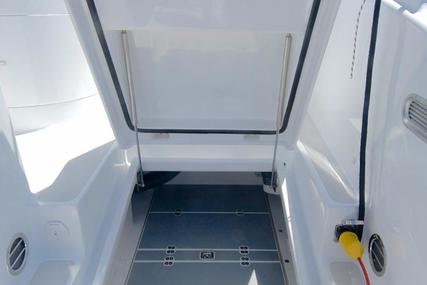

• Engine access through transom locker lid supported by SS gas struts

• Racor 2 stage fuel filtration system for Diesel

• Sound Insulation on engine room bulkhead

• Sound Insulation Cocoon for engines

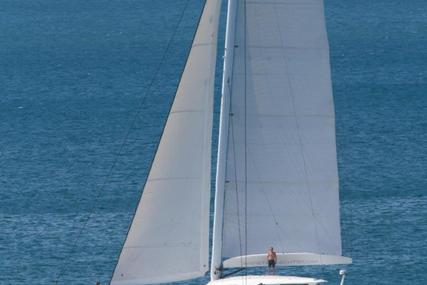

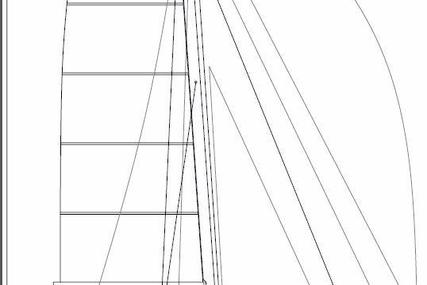

MAST AND RIGGING
  • Height to top of mast above water 28.3m
  • Mast length 25m
  • Boom length 7.8m
  • Sail area (Main and Self tacking headsail) 239sqm
  • Mainsail area 154m2
  • Light air jib area 113m2
  • Self tacking headsail 75m2
  • Staysail 32m2
  • Mast Area 18m2
  • Asymmetrical gennaker 275m2

Mast

• 25,5m 600x300 Rotating wing mast
• Full Carbon Spreaderless

Mast Rotation System

• Stainless steel and Vesconite rotating bearing
• Hydraulic Ram rotating between boom and mast with auto tack feature

Standing Rigging

• Forestay -­‐Nitronic Rod N50-­‐60

• D1,D2 -­‐K49-­‐Kevlar Standing Rigging, lashed with SK78 to Chain plate pins

• Diverse Load Cells x 4

• Bob Stays -­‐ PBO

Boom

• 7.8m Park Ave style carbon boom

• Integrated Jack Stay system

• Rotation Hydraulic Ram system

• Outhaul Hydraulic Ram system

• Built in MainSail cover

• Spinlock ZS Jammers for Reef 1, 2, 3

Running Rigging

• Marlow Grand Prix Series Lines complete package

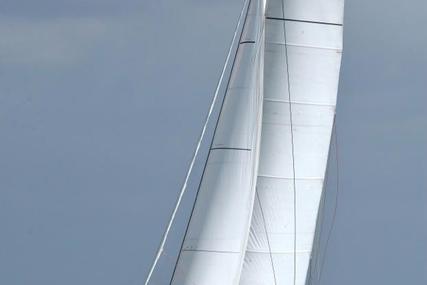

Sails

Mainsail - 154 sqm

• 154sqm Ullman Fiberpath square top mainsail, 3 reefs

• Carbon Battens

• High Load reefing system

• Cunningham at Full main and each reef

• Custom Main halyard with 4 locks, Full,and Reefs 1,2,3

• Doyle Anomaly Headboard

• Sunbrella Sail cover

Self Tacking Jib/Blade-­‐75sqm

• Ullman SAM Aligned Membrane,Vertical battens, UV Strip

• Reckmann Furler -­‐RS2000 -­‐ Furling to Harken Electric 74 Winch

• Harken Self tacking Track and hardware

• Jib sheet on Hydraulic Ram

Stay Sail -­‐ Self Tacking -­‐ 32sqm -­‐ EXTRA

• Ullman Dacron 10 oz Fiberpath furling staysail

• 12T KZ Searig Continuous furler with ratchet

• Karver Halyard Lock system with 6:1 Luff Tensioning system

• OYS K49 Anti torsion line

• Harken Self tacking Track and hardware

• Jib sheet on Hydraulic Ram

Light Air headsail/Genoa -­‐ 113sqm -­‐ EXTRA

• Ullman SAM Aligned Membrane, UV Strip

• 20T KZ Searig Continuous furler with ratchet

• 20T Karver Halyard Lock system with 6:1 Luff Tensioning system

• Genoa sheets to Harken 80 Electric winch

• K49 Anti torsion line
• 2x Spinlock Jammers ZS 1012

• Harken Custom Tulip Sheaves

• 6:1 Cascaded Harken Luff Tensioning system


ANCHORING AND MOORING

• 6 x 300mm Folding Stainless Steel Mooring Cleats

• 2 x 150mm Transom pop up mooring cleats

• 4 x 10m x 20mm Mooring Lines

• 2 x 15m x 20mm Mooring Lines

• Custom Stainless Steel Anchor Tipper designed for Delta 55 & 80 Anchor

• Anchor-­‐Delta 55

• Chain -­‐ 75m x 10mm High test

• Lewmar V4 Windlass with capstan

• Remote control for windlass

• Stb Helm station windlass control20mm Nylon Custom anchor bridle ~from Bow mooring cleats to anchor chain with chain hook

• 6x fenders

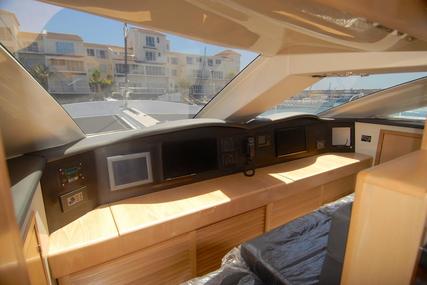

ELECTRONICS

• Simrad Navigation Package ­‐NS12 system

• B&G Hydra 3000

• B&G Wind

• B&G Mast rotation sensor

• B&G Speed transducer

• SIMRAD IS20 instruments for Wind, Speed, Depth duplicated at both helms

• Simrad AP24 Autopilot

• VHF Simrad RS87 with repeaters at helm stations


HYDRAULICS

• Custom AES hydraulic Rams, Stainless Steel, Hard anodised Aluminium casings

• 3 x motor pump system -­‐ 24V DC

• 1x Mainsheet Ram with gas rebound

• 1x Main traveller Ram -­‐ 2 Way

• 1 x Mast Rotation ram 2 way

• 1x Jibsheet ram with Gas rebound

• 2 x Centerboard rams -­‐ 2 way

• Programmable PLC

• Dual Helm station Progressive Joystick controls for all functions

• Safety release systems

• Auto Trim system

• Night,Sport and Race Modes -­‐ User preference

• Isolated circuits for redundancy

• High Pressure hoses with stainless fittings

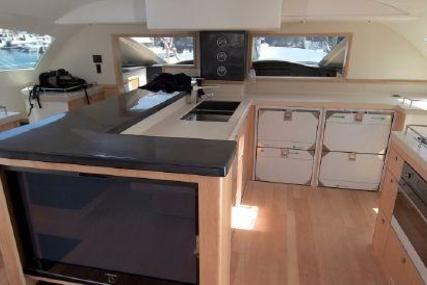

APPLIANCES

• SMEG 5 burner Gas Stove top with Stainless steel fiddles

• SMEG Gas Oven combo Microwave

• 2 x 180L Vitro Frigo Fridge/freezer combination 24V

• 1 x Fisher and Paykel single drawer dishwasher(available as extra)

• 1 x Bosch Washer/Dryer (available as extra)


PLUMBING

Bilges

2 x Engine Room Bilge Pumps -­‐ Rule 2000 with Automatic and Manual switches

2 x Main Bilge Pumps -­‐ Rule 2000 with Automatic and Manual switches

Fresh water

2 x 24V Headhunter Pumps

3 x HeadHunter Tecma Toilets

Fresh water pumps -­‐ Jabsco Variable

John Guest Speedfit Plumbing

1 x Webasto 75 Liter Calorifier/Waterheater

Transom shower hot and cold water

24V Jabsco Deckwash

2 x 400Liter Stainless steel tanks

2 x BEP Ultrasonic tank senders monitored by Mastervolt system

2x water fillers on deck

1x Spectra Newport 400 watermaker

Black Water

Black water pumps - Whale

Grey water pumps - Rule 1500

2x200 Liter built in composite tanks

2 x BEP Ultrasonic tank senders monitored by Mastervolt system

Deck pump out or overboard

Grey Water

3x Grey water sump pumps with automatic pump out on float switch

Galley and cockpit sinks drain directly overboard


SAFETY EQUIPMENT

• Cat one safety equipment as required to sail offshore

• 1 x 8 man life raft in Valise

• 8 x Standard lifejacckets approved for offshore with whistle

• 8 x Safety harness tethers with 2 x steel snap hooks

• 2 x Horseshoe life rings with light and whistle

• 1 x Man overboard heaving line

• 1 x 406mhz EPIRB.

• 1 x Basic first aid kit

• 4 x Para red rocket flares

• 4 x Pinpoint red hand flares

• 2 x Life smoke buoyant orange smoke signals

• 1 x set of emergency Navigation lights

• 1 x ORC radar reflector (folding)


GENERAL FINISHES

Floors

• 6mm Solid white beech Flooring -­‐ satin finish

Liners

• Foam backed Leatherette liners on 3mm marine ply backings. Eggshell Off white
colour

Ceilings

• Foam backed Leatherette liners on 3mm marine ply backings. Eggshell Off white
colour

Painted Surfaces

• White 2K BASF gloss finish painted surface on select areas.

Furniture Structure

• Lightweight cored furniture with solids for reinforcement where necessary.

Furniture finish

• White beech veneer with satin gloss finish

Soft furnishings

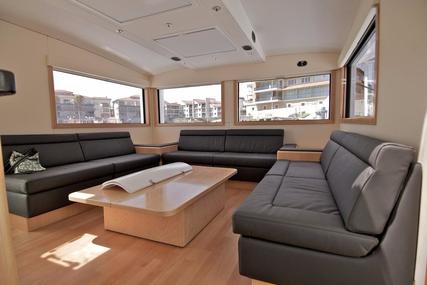

• Salon seating on hinged sub-structure to allow max access to lockers

Exterior Cushions

• Sunbrella covers on self draining foam bases

Mattresses

• 150mm Memory foam matresses

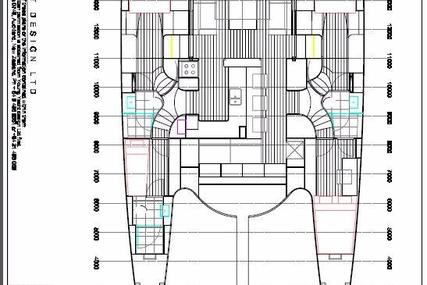

ACCOMMODATIONS

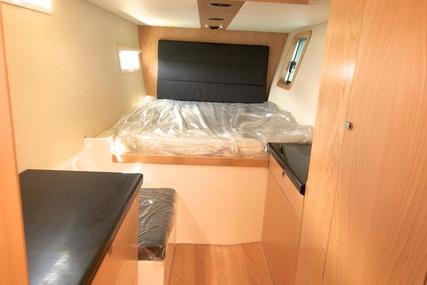

PORT AFT CABIN

• 1440x2050mm Memory Foam Mattress

• Storage under bed

• Leather upholstered headboard

• Twin LED reading lights

• 2 x 800 x250mm Portlights Fixed

• 1 x Vetus 520x520mm escape hatch to CE standards

• Leather upholstered seat

• Carbon top vanity counters

• 4 x LED cabin lights

• LED rear light mirror

• 1 x 220V AC Outlet plus network port

• Undercounter drawers

• Hanging Locker

• Wall liners -­‐ eggshell off white colour

• Ceiling Liners -­‐ eggshell off white colour

PORT BATHROOM/HEAD

• 2 entry doors shared with forward cabin

• Glass Shower doors

• Teak Shower gratings

• Designer Mixer Taps and shower fittings

• Variable shower rose

• Port Light in Shower

• Carbon Countertop

• Extraction Fan

• Led Lights

• Mirror in vanity unit

• Headhunter Toilet Fresh or salt water

PORT FORWARD CABIN

• 1440x2050mm Tapered Memory Foam Mattress

• Storage under bed

• Leather upholstered headboard

• Twin LED reading lights

• 2 x 800 x250mm Portlights Fixed

• Carbon top vanity counters

• 4 x LED cabin lights

• LED rear light mirror

• Undercounter drawers

• Hanging Locker

• Wall liners -­‐ eggshell off white colour

• Ceiling Liners -­‐ eggshell off white colour

• 2 Book shelves

MASTER Cabin -­‐ Starboard aft

• Ensuite Bathroom/Head

• 1440x2050mm Memory Foam Mattress

• Storage under bed

• Leather upholstered headboard

• Twin LED reading lights

• 1 x 220V AC Outlet plus network port

• 2 x 800 x250mm Portlights Fixed

• 1 x Vetus 520x520mm escape hatch to CE standards

• Leather upholstered seat

• Carbon top vanity counters

• 4 x LED cabin lights 2 way switching

• LED rear light mirror

• Undercounter drawers

• Hanging Locker

• Wall liners -­‐eggshell off white colour

• Ceiling Liners -­‐ eggshell off white colour

MASTER BATHROOM/HEAD Starboard Midships

• 1 entry door shared from inside the cabin

• 6mm Glass Shower doors

• Teak Shower gratings

• Designer Mixer Taps and shower fittings

• Variable shower rose

• Port Light in Shower

• Carbon countertop

• Extraction fan

• Led Lights

• Mirror in Vanity unit

• Headhunter Toilet Fresh or salt water

STARBOARD Forward Cabin -­‐ Bunk Cabin

• 2 x 900mmx2050mm Tapered Memory Foam Mattress

• Storage under bottom bed

• Leather upholstered headboard

• Twin LED reading lights

• 2 x 800x250mm Portlights Fixed

• Carbon top vanity counters

• 2xLED cabin lights

• LED rear light mirror

• Undercounter drawers

• Hanging Locker

• Wall liners -­‐ eggshell off white colour

• Ceiling Liners -­‐ eggshell off white colour

• 2x Hanging Lockers

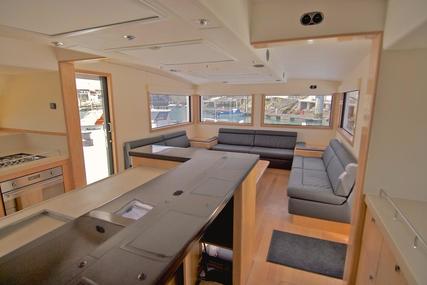

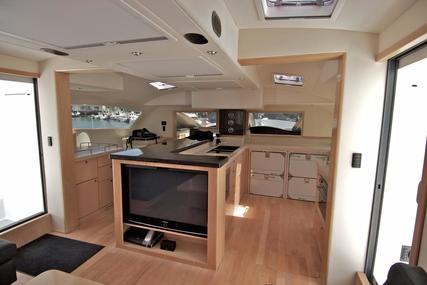

SALOON

Lounge Area

• 3 x 1.9m couches -­‐ 120 mm laminated foam upholstered

• Each Couch section hinges fwd to allow maximum access to storage below

• 4 x large storage units

• 2 x corner units with 1x 220V outlet with network port

• 2 x Corner unit reading lights

• 1 x Variable Coffee/dining table (height and position adjustable)

• 4 x Sash windows electrically operated with blockout blinds

• Entertainment unit -­‐ 42 inch Samsung LCD TV +

• 1 x BOSE lifestyle 28 system-­‐ DVD, inside and outside speakers 131.

• Sliding privacy cover for entertainment unit

• TV networked with computer to display all Navigation functions

• 2 x Sliding doors for access to both cockpits with deadlocks

• Courtesy LED night lights

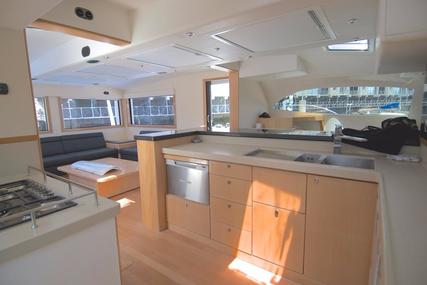

GALLEY

• Panoramic view from galley, good view of navigation station
• Surino counter tops with splashbacks

• Designer double sink and mixer

• Undercounter sliding garbage bin

• Dishwasher -­‐ Fisher and Paykel -­‐ Single

• Pot drawer below dishwasher

• Pantry cupboard storage

• 2 x 180 Liter Vitri Frigo combination Fridge and Freezers. 24V

• 1 x 220V AC outlet

• Bosch Gas Oven

• Bosch 4 burner Gas stove top

• Gas detector solenoid

• Carbon Bar countertop


NAVIGATION STATION

• Panoramic view

• 3m Navigation bench with backrest, can be used as pilots bunk

• Windows computer networked to boat functions

• 19 Inch LED screen

• Navigation table with 2x storage compartments for charts

• 2 x 220V AC plug points with network ports

• Generator and power management Control Panel

• Navigation functions clustered on the Port side

• Communications cluster centered

• Computer and hydraulic functions on the starboard side

• Battery compartment under nav seat

• Inverters, chargers under nav table with easy access and good ventilation
• Led lighing -­‐white and Red for night navigation

•Simrad NAIS 300

• Simrad Radar with 4kw HD digital antennae mounted on carbon stalk on
aft deck


DECK AREAS

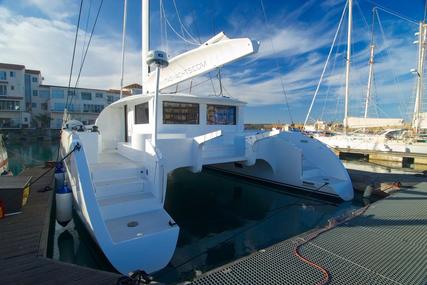

AFT DECK

• Wide transom steps for easy access to yacht, dock and dinghy

• Transom ladder -­‐ sliding and concealed with folding hatch x2

• Transom shower with hot and cold water

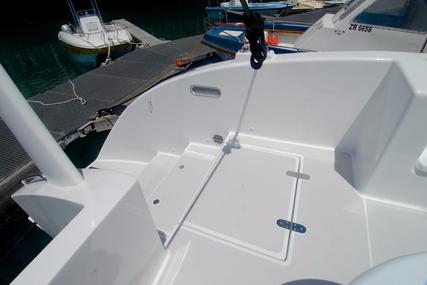

• XL Engine room hatch hinged on SS gas struts

• LED Stair Courtesy lights

• SS handrails

• High bulwarks creating safe enclosed cockpits

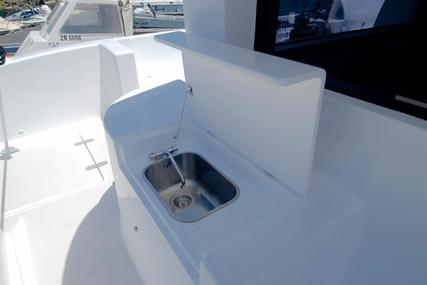

• Stainless Steel am deck basin, for BBQ and Fishing, Cold water with enclosure
hatch

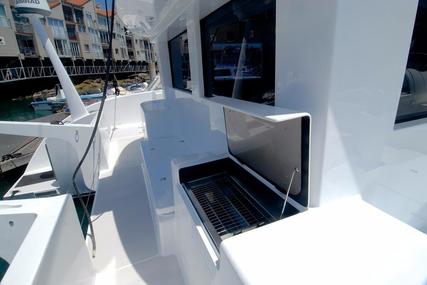

• BBQ ~ Gas Stainless steel BBQ with enclosure hatch

• GAS locker -­‐ sealed from boat and self draining to exterior, CE approved

• Aft bench seating for 4 people -­‐ Sunbrella Base and backrest cushions

• Stainless Steel Guard Rails -­‐ Removable

• Custom Dinghy Davits-­‐ 14m Dinghy, Raised and lowered by Winch, Single person
operation, Positive lock in up position

• 2 x Fishing rod holders

COCKPITS PORT AND STARBOARD

• Dual helm stations -­‐Starboard Master controls and panels for Engines

• Centrally located helm position for excellent view of sails, course ahead and sea
state

• All functions clustered around helm position

• Custom TAG carbon Steering wheels

• Sunshaded instrument panel

• Seating for 8 people

• Sunbrella upholstered bases and back rests

• Carbon base for cockpit table -­‐ dual function port and starboard

• Teak Folding table top -­‐ dual function port and starboard

• Bimini awnings spanning from coachroof to cover seating area

• LED Lighting under coachroof overhang to light cockpits (red night light)

• LED courtesy foot lights

• 1 x vitrifrigo cockpit cooler for drinks, danfuss BD35 compresor and evaporator.

Starboard Helm Station

• Port and starboard Engine control panels

• Glendinning Throttle control for port and starboard

• Sunbrella covered helm bolster

• Lazy line storage locker, self draining

• Harken 80, 3 speed, Self Tailing winch with foot switches

• Spinlock XT and ZS jammers for control lines

• Custom Line Organisers

• All control lines below deck

•Control Lines Light Air jibsheet, Dinghy Davits, Staysail halyard, Self tacking Jib furler

• Asymmetric gennaker sheet

• 2 x Hydraulic control Joysticks IP68 for all hydraulic functions

• VHF -­‐ SIMRAD RS87

• Simrad Main Navigation Panel -­‐ 12 Inch

• Simrad Wind,Speed,Depth

• Simrad Autopilot -­‐ AP24

Port Helm Station

• Glendinning Throttle control for port and starboard

• Sunbrella covered helm bolster

• Lazy line storage locker, self draining

• Harken 80, 3 speed, Self Tailing winch with foot switches

• Spinlock XT and ZS jammers for control lines

• Custom Line Organisers

• All control lines below deck

• Control Lines -­‐ Main Halyard, Light Air Halyard, Light air Jibsheet, Asymmetric
gennakar sheet, Asymmetric gennaker halyard.

• 2 x Hydraulic control Joysticks IP68 for all hydraulic functions

• VHF -­‐SIMRAD RS87

• Simrad Main Navigation Panel -­‐ 12 Inch

• Simrad Wind, Speed, Depth

• Simrad Autopilot -­‐ AP24

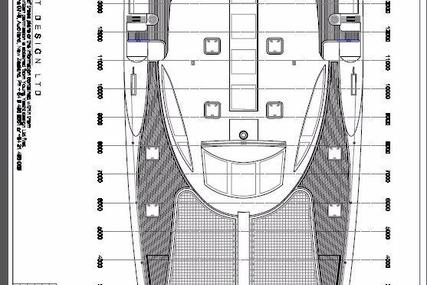

Foredeck

• Flat/level decks flush with trampolines

• 2 x Lewmar Size 10 Flush Deck Hatches with drain system

• 4 x Lewmar Low Profile Coach roof hatches

• 4 x Lewmar Size 44 Flush deck Hatches with drain system

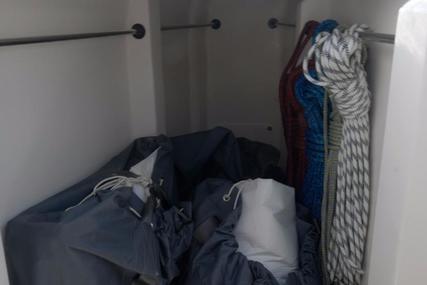

• 2x Custom Composite XL Sail locker hatches supported by SS Gas Struts

• International nonskid deck paint to match colour of yacht

• Trampolines supplied Sunrise Multihull Nets, dual mesh combination

• Hammock trampoline triangle.

• 2 x Carbon/SS Bow seats

• Stainless Steel Stanchions and guardrails

• Concealed anchor windlass and chain tube

• Intergrated Carbon Cross beam, compression beam and bowsprit

• Bowsprit supported by whisker stays (part of Code 0 and Light Air
options)

Coachroof

• Integrated steps to Mast base

• Custom 10mm Laminated toughened coachroof windows tinted grey
• 4 x Skylights -­‐ 10mm Laminated toughened glass with grey tint
• Main traveller on coach roof -­‐ Harken

• Light air sheeting tracks on coach roof -­‐ Harken

• Nonskid -­‐ 500mm around skylights

• GPS antenna

• VHF antenna


EXTRAS READILY AVAILABLE

• Light Air Headsail Package

• Stay Sail Package

• Gennaker Package

• Doyle Anomaly Squaretop headboard for mainsail

• Dishwasher

• Washer Dryer

• Dinghy

Contact - Alexis de Boucaud
The Multihull Company Florida Office

Located at the Ft. Lauderdale Marine Center
250 SE 2nd St. #1530
Ft. Lauderdale, FL 33315
Phone:
E-Mail: Alexis@multihullcompany.com
4100 Main St
Suite 304
Philadelphia, PA 19127 United States
Toll-free
Tel
Fax
Email Us

PROPULSION

ADDITIONAL INFORMATION

HULL

Hull Material

Composite

OTHER

Engine Type

Inboard

ABOUT TAG YACHTS 60

The Tag Yachts 60 is 60 feet long. The Tag Yachts 60 is made of composite.

SIMILAR LOCATIONS

ABOUT THE MULTIHULL COMPANY

The Multihull Company logo
The Multihull Company
+1 (215) 508-2704
The Multihull Company

The Multihull Company is a global multihull brokerage firm that prioritizes trust and expertise. They believe in building lasting relationships with clients by providing expert advice and service. The company's success is not solely about bottom-line profit, but also being there when clients need them most and overcoming challenges. As the fastest growing multihull brokerage firm globally, they go above and beyond to serve the needs of those they trust.
