$23,950,000
OFFERED BY
Northrop and Johnson
LOCATION
Dania Beach, United States of America
YEAR
2009
LENGTH
191.01 ft.
Condition
Used
Name

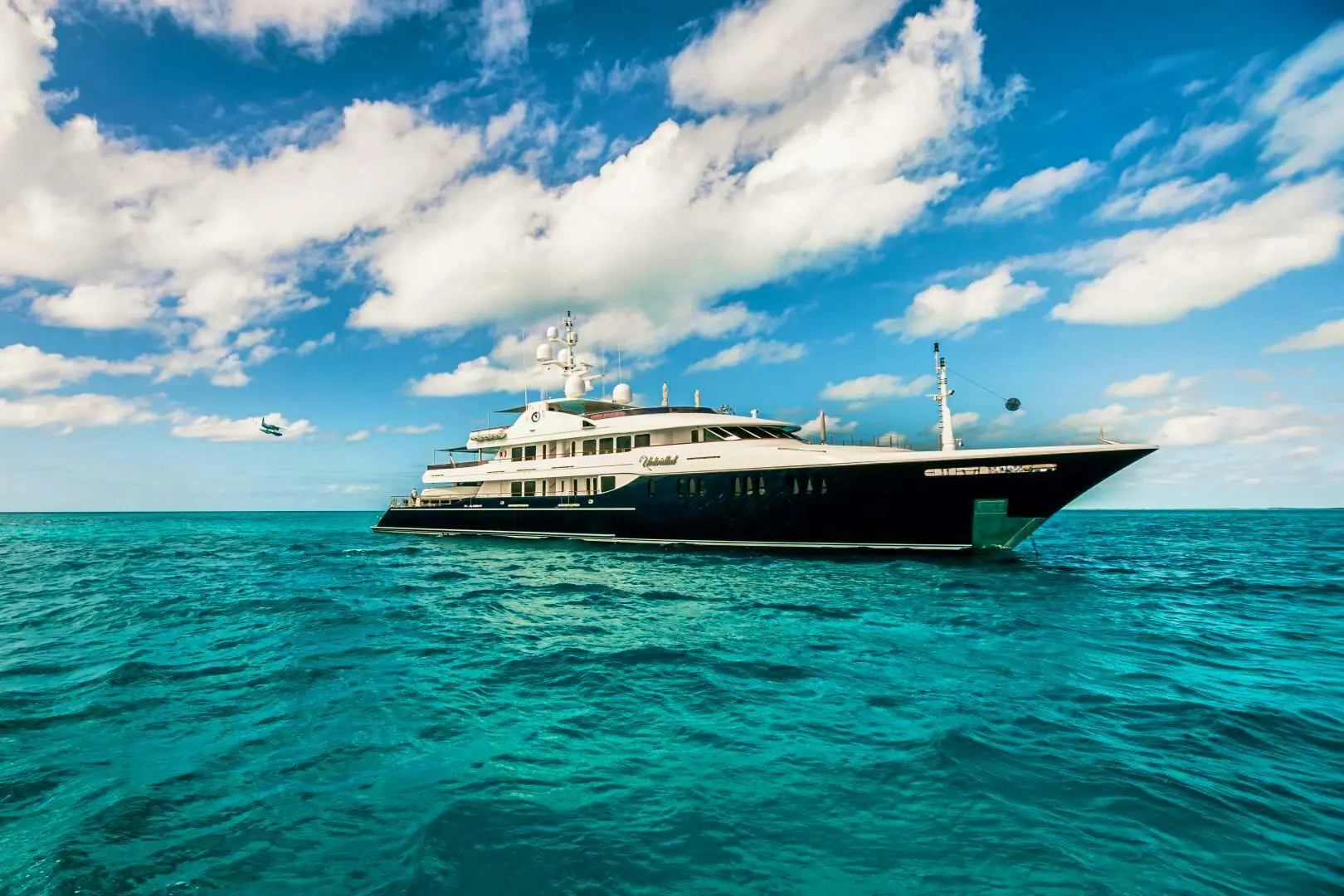

UNBRIDLED
Year
2009
Make & Model
Trinity Yachts Custom
Boat type
Power
Length
191.01 ft.
Fuel Type
Diesel
Location
Dania Beach, United States of America
Tax status
Tax Not Applicable
Beam
35.76 ft.
Cabins
6
Draft
10.17 ft.
LWL
166.01 ft.
MAIN ENGINES
2 x Caterpillar, 3512B 1509kW (2,012hp)
ENGINE HOURS
May 2024
GEAR BOXES
2 x Reintjes WAF 743 K31 (Gear Ratio 3.52:1)
SHAFTS & PROPELLERS
6 inch Aqualoy HS-22 with Michigan Wheel 5 blade
SPEEDS
Maximum speed 16 knots
Cruising speed 13.5 knots
Economical speed 12 knots
FUEL CONSUMPTIONS
882 Liters/hour at 16 knots
440 Liters/hour at 13.5 knots
360 Liters/hour at 12 knots
RANGE 3,569 nm at 12 knots with 10% Reserve
GENERATORS
2 x 189kW Kilo Pak
EMERGENCY GENERATOR
1 x 99kW Kilo Pak
GENERATOR HOURS
May 2024
ELECTRICITY
480V and 110V, 60hz
SHORE POWER
2 x ASEA AC1003 Power Converters
BATTERIES
Main Engine and Generators CAT 24VDC
FUEL 126,445 Liters (33,403.24 Gallons)
WATER 22,710 Liters (6,000 Gallons)
WATERMAKERS 2 x FCI 4000 US gallon per day each
LUB OIL 1,892 Liters (500 Gallons)
DIRTY LUB OIL 2,840 Liters (750.25 Gallons)
GREY WATER 3,028 Liters (800 Gallons)
BLACK WATER 2,181 Liters (577 Gallons)
STEERING SYSTEM EMI, Proportional Electro-Hydraulic Steering System
RUDDER ANGLE INDICATOR Anschutz
BOW THRUSTER Quantum QT-200 Hp
STERN THRUSTER Quantum QT-75 Hp
STABILIZERS 2 x Quantum active fin with digital controls
FUEL FILTERS CAT & Racor Parker
FUEL SEPERATOR Alfa Laval P100
OIL/WATER SEPARATOR Mahle NFV MPEB-VT
FIRE/BILGE PUMP 2 x Grundfo 7.5 Hp
BOILERS Rheem RUUD Electric Water Heater x 4, each 99 gallons
SEWAGE TREATMENT
AIRCON DITIONING 2 x Blitzer 444000 btu/hr compressors, 45 kW heating
VENTILATION Marine Air 5 stage 75 ton, 60kW heating
FIRE FIGHTING Consillium Salwico CS4000
ALARMS MX 4000
SECURITY CCTV
SATCOM
SSB RADIOTELEPHONE Furuno FS 1570
CELLULAR SYSTEM Tellular SX7t GSM
VHF RADIOTELEPHONES
TELEPHONE EXCHANGE Panasonic TDX 200
INTERCOM SYSTEM Raymarine
WATCHKEEPING RECIEVER Sat C GMDSS Alarm Panel
MAGNETIC COMPASS Anschutz
GYRO COMPASS Gyrostar 22, Anschutz
AUTOMATIC PILOT Pilostar D, Anschutz
LOG B&G and Consillium
ECHO SOUNDER Furuno FCV 1200
RADAR
CHART PLOTTER 2 x Transas Ecdis
1 x Timezero
GPS
NAVTEX Furuno NX-700
WIND INSTRUMENTS B&G 3000
ANCHOR WINDLASS Muir
AFT WARPING CAPSTANS Muir
GROUND TACKLE 2x Stockless anchors – 580kg each
BOAT CRANE & DAVITS Nautical Structures
PASSERELLE Marquipt
SIDE BOARDING LADDERS 2 x Marquipt manual ladders
SEARCHLIGHT ARC 600
AWNING 4x Sun Awnings
MAIN SALON
1 x Media Décor Motorized Art Frames
4 x B&W CCM80 speakers
1 x B&W FPM5 Vented Box Systems
1 x Arcam AVR280BLK Receiver
1 x Crestron CP2E Control Processor
1 x Crestron TPMC8X Touch panel
1 x Crestron TPMC8XDSW Docking Station
1 x iPad Crestron AV App
2 x Sunfire Subwoofers
1 x Crestron Room Media Controller
1 x CNXRMCLV Control System
1 x Zantech CB18 Phoenix Connector
3 x Crestron Light Switch Keypad
1 x Apple TV
DINING ROOM
2 x B&W Ceiling Speakers
1 x Crestron Touch panel
3 x Crestron Light Switch Keypad
1 x Crestron Docking Station
1 x iPad Crestron AV App
1 x Auxiliary Port
FOYER
1 x B&W Speakers
2 x Linn Sweetspot Speakers
1 x Crestron Touch panel
2 x Crestron Keypad
GYM
1 x B&W Ceiling Speakers
1 x NAD DVD Player
1 x Sherbourn Amplifier
1 x Sunfire Subwoofer
1 x Crestron Docking Station
4 x Crestron Keypads
1 x B&W Ceiling Speaker
1 x Crestron Keypad (Bathroom)
HIS OFFICE
1 x 42 inch NEC Plasma
2 x B&W Speakers
1 x Sherbourn Amplifier
1 x Sunfire Subwoofer
1 x Crestron Touch panel
1 x iPad – Crestron AV App
3 x Crestron Light Switch Keypad
HER OFFICE
2 x B&W Speakers
1 x Sherbourn Amplifier
1 x Sunfire Subwoofer (1)iPad – Crestron AV App
MASTER STATEROOM
1 x Auxiliary Ports
4 x B&W Speakers
1 x B&W Ceiling Speaker (Bathroom)
4 x Sonace Symphony
1 x 20 inch Sharp Monitor
1 x iPad Mini Crestron Av App
4 x Crestron Light Switch Keypad
1 x Apple TV
PILOT HOUSE
2 x B&W CCM65 Ceiling Speakers
1 x Sherbourn LDS2/75 Amplifier
1 x VST Receiver
5 x Crestron Light Switch Keypads
2 x Crestron Touch panels
1 x Sonace Table Top iPod
1 x Auxiliary Ports
SKYLOUNGE
1 x Media Décor Motorized Art Frames
2 x Sunfire Subwoofers
4 x Crestron Light Switch Keypads
1 x Cisco Wireless Access Point
1 x Auxiliary Ports
1 x iPad Crestron AV App
1 x iPad Mini Crestron AV App
1 x Apple TV
GUEST STUDY
1 x Crestron Processor
1 x NAD DVD Player
1 x Sunfire Subwoofer
1 x Crestron Light Switch Keypad
1 x 42 inch NEC Plasma
3 x Quantum LCR Speakers
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Apple TV
VIP GUEST PORT
1 x 32 inch NEC Plasma
1 x Crestron Light Switch Keypad
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Linn Sweetspot Speakers
1 x NAD DVD Player
VIP GUEST STARBOARD
1 x 32 inch NEC Plasma
1 x Crestron Light Switch Keypad
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Linn Sweetspot Speakers
1 x NAD DVD Player
GUEST TWIN PORT
1 x 32 inch NEC Plasma
1 x NAD DVD Player
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Sherbourn Amplifier
2 x Speakercraft Flush Mount Speakers
GUEST TWIN STARBOARD
1 x 32 inch NEC Plasma
1 x NAD DVD Player
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Sherbourn Amplifier
1 x Speakercraft Flush Mount Speakers
LOWER HALL
2 x Speakercraft (1) NAD DVD Player
4 x Crestron Light Switch Keypads
2 x Speakercraft Flush Mounted Speakers
GALLEY
2 x B&W Speakers
2 x Crestron Light Switch Keypads
1 x VST Car Stereo
1 x 20 inch Sharp LCD Monitor
1 x Crestron Touch Panel
CREW LOUNGE
1 x Crestron Processor
1 x NAD DVD Player
1 x Velodyne Subwoofer
5 x Speakercraft Speakers
1 x iPad – Crestron AV App
1 x iPad Docking Station
1 x 32 inch Runco Monitor
1 x Cisco Wireless Access Point
CAPTAIN’S CABIN
1 x NAD DVD Player
2 x Speakercraft Speakers
1 x Crestron Touch Panel
1 x Crestron Docking Station
1 x Crestron Light Switch Keypad
1 x Liberty Panel Crafters Custom Decora Style Insert
1 x 32 inch LCD Monitor
CREW CABINS
(4) 1 x Info Display Integration TV/DVD System per berth
2 x Speakercraft 6 inch Round Speakers
1 x VST receiver
1 x VST DVD Player
2 x VST Wireless Headphones
1 x AV Toolbox Amp
1 x Liberty Panel Crafters Custom Decora Style Insert
LAZARETTE/DIVE ROOM
1x JL Audio Marine Subwoofers
4 x JL Audio Marine Speakers
1 x Creston Waterproof Handheld Remote
1 x Crestron Wall Mount Touch panel
1 x Crestron Touch panel
SUNDECK
1 x Crestron Touch panel
1 x Crestron Docking Station
1 x Crestron Waterproof Handheld Remote
1 x JL Audio Speakers
1 x Runco 42 inch Monitor
1 x iPad – Crestron AV App
UPPER DECK AFT
1 x Crestron Touchscreen
1 x Crestron Keypads
1 x Crestron Touch panel
1 x 2 Way RF Receivers
4 x JL Audio Marine Speakers
6 x JL Audio Speakers
2 x JL Audio Subwoofers
1 x Cisco Wireless Access Point
PORTUGESE BRIDGE
1 x JL Audio Marine Subwoofers
4 x JL Audio Marine Speakers
COMPUTERS
PHOTOCOPIER/PRINTER
MAIN GALLEY
LAUNDRY
JACUZZI DIP POOL Bradfords Custom Tile 8 Person
SHIP'S SAFES
BARBEQUE Viking Professional 2burner BBQ
GYM EQUIPMENT
TENDERS
OTHER
WATERSPORTS
EQUIPMENT
Accommodation for up to 16 guests in six adaptable cabins, and up to 14 crew in six crew cabins, as follows:
OWNER
GUESTS
CREW
2024
15 year Survey Upgrades
Main engine service including remove and replace or rebuild on Aftercoolers, Turbos, Heat exchangers and Borescope checks on all cylinders and Injector inspection
Generator service including Aftercooler, Turbos, Heat exchangers and Borescope checks on all cylinders and Injector inspection
Full upgrade to AC system including Pumps and Chilled water loop insulation and valves
8 Coast of Varnish on all bright works
Propellor and Shaft removal and alignment works
New Hot water heater installed
Full Service on OWS
Full Service on Fuel Oily Water separator
Full service on all Refrigeration systems
Full Service on water makers
Chemical Cleaning of all raw Water lines for Main machinery
Remove , test and replace all Thru Hull Valves and Main Machinery Valves
Repaint Antifoul
Service Stabilizers
Meridian 5G sim card system upgraded
2019
• Complete paint job

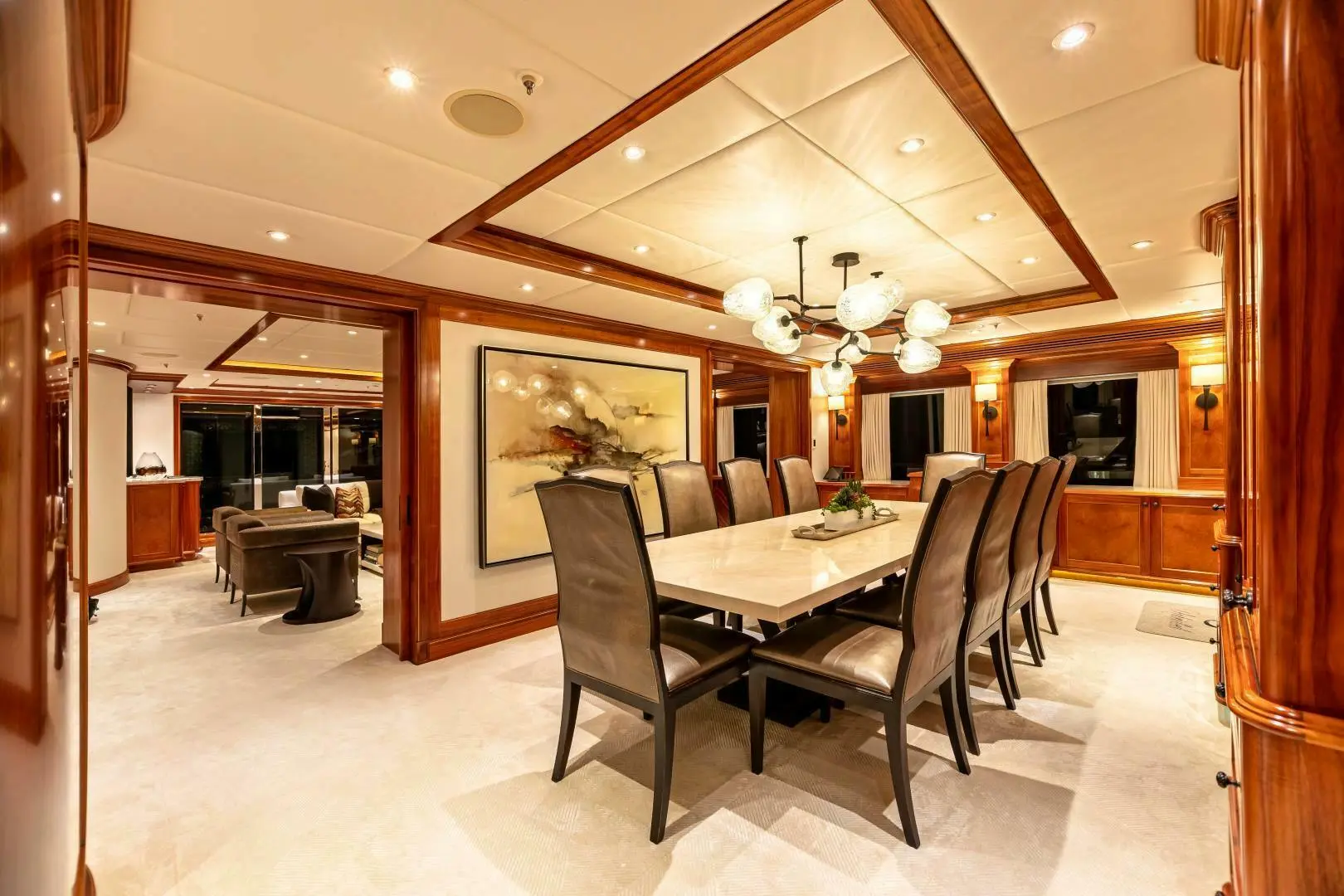

MAIN SALON/DINING SALON
• New overheads installed
• Main salon aft worktops resurfaced
• Marble floor put down aft of main salon
• New stone (marble) installed on outer shelves of main salon and dining
• New furniture and soft goods throughout
• New TV installed
• New wallcovering in main salon and dining
• New wool and dull silk carpets installed in main salon and dining area
• Various artwork and ornaments replaced
• AV system has been updated and some new iPads
MAIN DECK CORRIDOR
• New marble flooring as well as new artwork installed
MASTER STATEROOM
• New overheads installed made Vinyl
• Master office leather floor has been taken up and carpets have been put down throughout the offices and master stateroom
• New furniture and soft goods in master stateroom and study
• TV replaced in Master office, AV system updated and trim around TV replaced
• Artwork/ornaments updated
• New master stateroom chandelier installed with various glass slates and new wall sconces installed around master cabin
GYM
• New overheads installed made from Vinyl
• New carpet installed matching the master cabin
• New drapes installed
• New wall Panels installed in room
• New glass panels installed in gym shower and new faucets being installed on sink
SKYLOUNGE
• New overheads installed
• New carpet has been installed
• New skylounge bar top has been installed
• Sconces replaced throughout the skylounge
• LED strip lights updated and added in areas of the skylounge
• New furniture and soft goods
• Wooden walls in skylounge have now been replaced with white wallcovering
• 2 brand new TVs installed
• Various nesting updated inside cupboards to accommodate new glassware
• New decorative pillows and cashmere blankets for skylounge as well as updated artwork around the room
SKYLOUNGE DAYHEAD AND STAIRCASES
• New Vinyl overheads in skylounge dayhead
• Skylounge dayhead floor has been replaced with marble, sink worktop replaced with marble and new faucets installed around the sink area
• Stair Wall Panel Fabric installed (whisper walls)
• Skylounge leather railing installed made from 100% leather
• Carpet installed on both guest staircases
GUEST STATEROOMS
• New carpets installed in all lower guest staterooms
• Each bedroom has new headboard panels
• New shelving panels installed
• New blinds installed, roman shades
• New decorative pillows, cashmere blankets, ornaments, and artwork through guest staterooms
• New bed linen updated throughout each guest cabin
• Updated AV system in all cabins

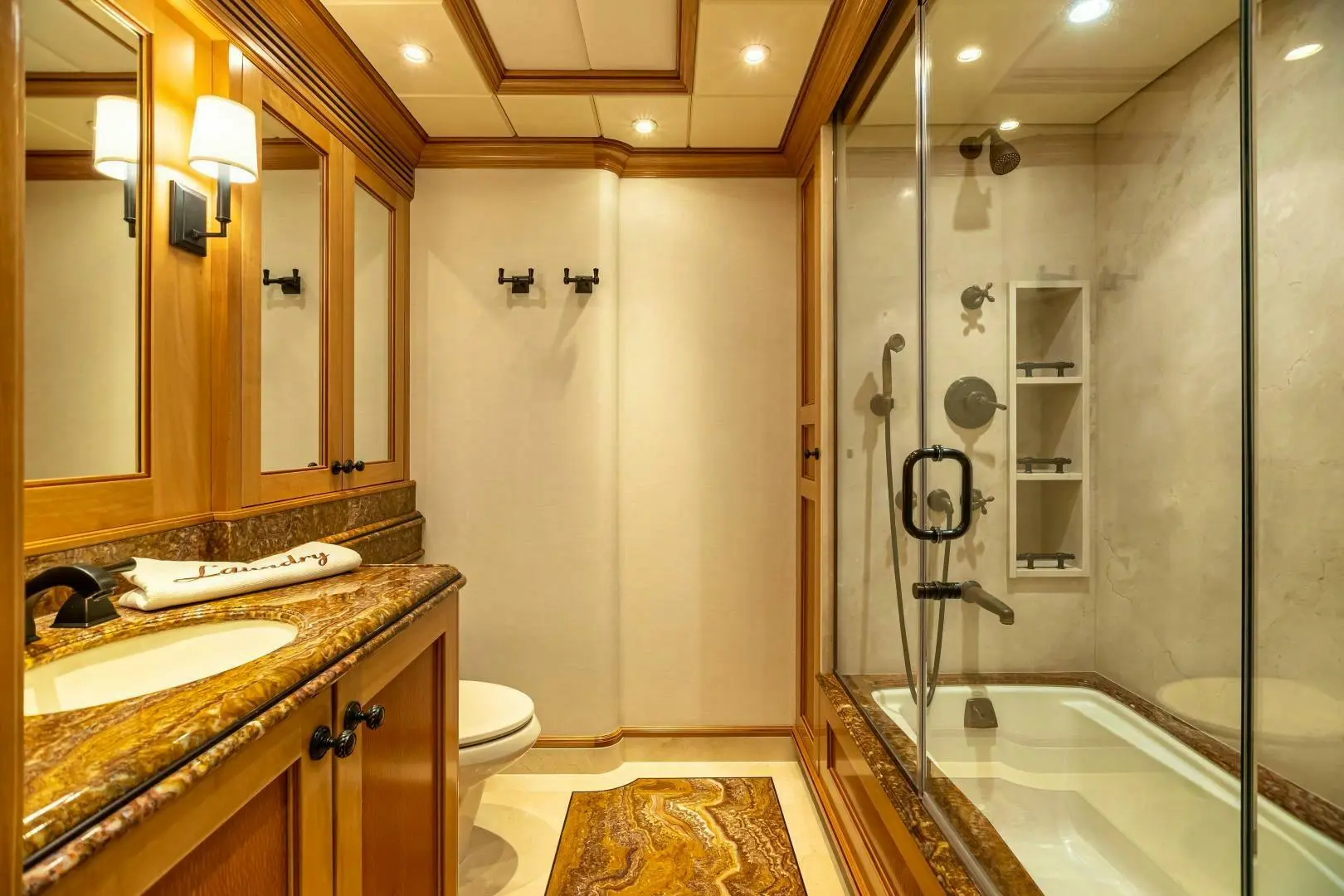

• New wall covering installed in each guest stateroom bathroom
• All faucets replaced with new ones in each guest stateroom
GUEST STUDY
• Various new furniture
• New carpet installed
• Brand new TV installed in study with new wall panels
• AV updated in study
• New speakers replaced in study
ENGINEER REFIT LIST
HULL
• zinc anodes Inspected and replaced
FRESH WATER SYSTEM
• Replaced all four Domestic Boilers
TANKS
• Inspected and cleaned
VENTILATION
Engine Room Ventilation System:
• Port & Stbd Fire Dampers Replaced with new
• Port Supply Fan Replaced with new
• Stbd Exhaust Fan Replaced with new
• All four Internal Fan Motors on Central Circulation System has been replaced with new
Galley Fan System:
Supply Fan Replaced with new
• Exhaust Fan Replaced with new
SHIP VALVES
• All 42 Though-Hull Valves has been removed For ABS inspection
• Pressure Tested 5 New Type Approved Through-Hull Valves
• Install All Through-Hull Valves and Pressure Tested After Installed
• ABS Inspected All Through-Hull Pipes
• Replaced Stbd A/C Sea Water Outlet Through-Hull Pipe
• Replaced Stbd Generator Spray Ring By-Pass Through-Hull Pipe
• Replaced Stbd Sea Chest Through-Hull Pipe
• Repaired Port Sea Chest Through-Hull Pipes With Valves Closed
• Repaired Broken Galley Drain Grey Water Pipe Located Between Guest Study & Port Twin
• Pressure Test All Through-Hull Valves In Place
PUMPS
• Various have been removed of the vessel, inspected, repaired or replaced.
BOW THRUSTER
• Removed for inspection and seal replacement
PROPS & SHAFTS
• Port & Stbd Prop Shaft Wartsila Seals Replaced
• New port and stbd Stern Tube fwd bearing carrier with stainless steel has been fabricated and ABS approved
• Port & Stbd P-Struts repaired with Belzona, ABS approved
GEAR BOXES:
• both have been removed of the vessel and send over to Reintjes for 10 year Major Service
• Port & Stbd Vulkan Couplings has been serviced
STEERING SYSTEM
• emergency steering header tank oil replaced
• Filter elements and seals replaced
• port and stbd Rudders removed, bushing and seal replaced, shaft alignment checked, rudders pressure tested, hydraulic rams removed and serviced, hose fitting replaced
MAIN ENGINES
• all engine vibration mounts replaced
GENERATORS PORT & STBD
• sea water pipes replaced
• aft crankcase seals on both engines replaced
• injector wiring harness on both engines replaced with a CAT upgraded ones
• power unit space heaters installed
BATTERIES
• Replaced all fire door batteries
• Replaced all water tight doors batteries
• All four Main Engines starter batteries replaced
WINDLASS
• Both port & stbd units serviced and new seals installed
VSAT & TVRO
• Install new Italian Sky decoders
ULTRA FOG
Completed 10 years inspection and service
AIR COMPRESSED SYSTEM:
• Replaced both air compressors with new
• Replace service reservoir relief valve located in the bridge
• Borescoped all 3 air reservoirs
OWS
• Opened, cleaned, Monitor Calibrated and inspected by ABS & Flag surveys
BILGES
• Cleaned and painted all bilges
GALLEY OVEN MODIFICATION:
• Fabricated a new island and installed 2 new MKN ovens and ice maker
DIESEL PURIFIER
• Carried out major, intermediate, oil change, clutch pads and bearings replacement
LOAD BANK
• Replaced all gaskets, including element gaskets and pipe fitting gaskets and replaced pump end
2018
STABILIZER SYSTEM
• Port & Stbd fins removed
• Upper and lower seals replaced
• Shaft, roller & hull sleeve bearings on Port & Stbd sides replaced
• All cylinder spherical bearings replaced
• Replaced all accumulator bladders and filling valves
• Replaced all o-rings on hydraulic distribution block solenoid valve
BOW THRUSTER
• All bearings replaced
STERN THRUSTER:
• Thruster leg replaced with brand new unit
• Shaft Seals replaced
• Electrical Motor removed and serviced including megger testing
2017
MAIN ENGINES - Painted both engines after below service.
• PORT - Top End 9000 hr service completed
• Replaced all exhaust gaskets & insulation
• Replaced sea water flex couplings
• Removed and serviced both Starters Motors
• STBD - Top End 9000 hr service completed
• Replaced all exhaust gaskets & insulation
• Alternator pulley and belt checked
• ET Full Check
• Removed and serviced both Starters Motors
GENERATORS
• PORT - Major Overhaul Carried out
• STBD - Major Overhaul Carried out
EMERGENCY GEN
• Replaced four starter batteries with new
PTO UNITS
• Rexroth hydraulic motor removed for servicing and testing, unit installed and tested
• PTO pumps removed and inspected, new seals & gaskets installed, units tested
• Hydraulic hoses on PTO units replaced
STABILIZER SYSTEM - PTO pump suppressors rebuild
A/C SYSTEM
• Rebuild both 1 & 2 sea water pumps
• Rebuild both 1 & 2 chiller pumps
2016
PORT & STBD GENERATOR
• Installed larger fuel booster pump on both Gens
• Woodward EasyGen PT Isolation Installation carried out
• Installed new block heat sensors on both Gens
• Install Fuel Restriction gauges after Racor Filter
LOAD BANK
• Replaced all heater elements, pressure sensor and flow sensor
• Replaced all seals on housing
• Installed new cooling water pump & motor
MOORING/WINDLASS
• Entire aft capstans removed for full service
• Windlass hydraulic pump & gearbox overhauled
• Gypsy bushings replaced
• Adaptors and hydraulic hoses replaced
BATTERIES
• Master & Slave Transas Memory Battery replaceed
• Replaced Port Engine Room Battery Bank batteries x 4
• Replaced Stbd Engine Room Battery Bank batteries x 4
LAZ (TRANSOM) DOOR
• Removed all locking pins and seals replaced
FRESH WATER SYSTEM
• All boiler elements replaced
• Replaced all boilers safety valves
2015
DIESEL PURIFIER
• Installed a float switch in drain tank
• Carried out a major service
• Carried out an intermediate service
MOORING/WINDLASS
• Windlass brake pad removed and replaced with riveted type
• All windlass bushings replaced
• Windless drive unit removed and full service carried out
QUATUM HYDRAULIC SYSTEM
• 3x solenoid valves on power pack replaced
• All suppressors and accumulators replaced
• Inboard sea water cooling pump replaced
BATTERIES
• All Water Tight door batteries replaced
• All UPS batteries in Dive Room replaced
• All APC UPS batteries in A/V Room replaced
• All APC UPS x 2 under bridge console replaced
LAZ (TRANSOM) DOOR:
• Hydraulic rams removed and seals replaced
• All Hydraulic hoses replaced
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Cruising Speed
13 Knots
Engine Count
5
Engine Horse Power
2012.00
Engine Hours
15.00
Max Speed Knots
16
HULL
Hull Material
aluminium
Hull Shape
Displacement
ELECTRICAL EQUIPMENT
Air Conditioning
Yes
ACCOMMODATION
Crew Berths
13
Crew Cabins
6
OTHER
Double Berths
3
Single Berths
2
Country Built
Cayman Islands
Displacement(kgs)
600
Engine Horse Power2
2012.00
Engine Hours2
15.00
Engine Hours3
26917.00
Engine Year
None
Engine Year2
None
Range
5932
Engine Type
Inboard
Fuel Capacity Gal
48645
Fuel Tanks Capacity
184141 liters
Gross Tonnage
803
No of Heads
0
Holding Tank Gal
48645
Num Sleeps
16
Water Capacity Gal
6000
Water Tanks Capacity
22712 liters
Twin Berths
4
Displacement Type
tonnes
Holding Tanks Capacity
0 liters
The Trinity Yachts Custom is 190 feet long and has a 36 feet beam and can hold up to 48645 gallons of fuel and 6000 gallons of water. This 2009 diesel Trinity Yachts Custom powered by Caterpillar 3512B with 2012.00 horsepower is capable of reaching a maximum speed of 16 knots and a cruising speed of 13 Knots. The Trinity Yachts Custom is made of aluminium, has 13 beds in 6 cabins . This vessel comes equipped with air conditioning .
$24,500,000
LENGTH:
164.04 ft.
|
YEAR:
2011
LOCATION:
West Palm Beach,
OFFERED BY:
Northrop and Johnson
$16,750,000
LENGTH:
177.17 ft.
|
YEAR:
1997
LOCATION:
West Palm Beach,
OFFERED BY:
Northrop and Johnson
$12,900,000
LENGTH:
157.15 ft.
|
YEAR:
2004
LOCATION:
Fort Lauderdale,
OFFERED BY:
Northrop and Johnson
$21,900,000
LENGTH:
160.01 ft.
|
YEAR:
2000
LOCATION:
Fort Lauderdale, Florida
OFFERED BY:
Worth Avenue Yachts
$519,500
LENGTH:
39.01 ft.
|
YEAR:
2015
LOCATION:
Vero Beach, Florida
OFFERED BY:
Majesty Yachts USA
$205,000
LENGTH:
33.99 ft.
|
YEAR:
2020
LOCATION:
Apollo Beach, FL
OFFERED BY:
Allegiance Yachts
