The 3rd and smallest model in the Wauquiez Pilot Saloon series - another stunning blue-water cruiser to take you off for the adventures of a lifetime.
Call us to discuss the extensive options available for your new top mark blue water yacht.
Technical Specifications Preliminary
The current demo boat is Hull # 006 and is currently still available.
The 3rd and smallest model in the Wauquiez Pilot Saloon series - another stunning blue-water cruiser to take you off for the adventures of a lifetime.
Call us to discuss the extensive options available for your new top mark blue water yacht.
Technical Specifications Preliminary
The current demo boat is Hull # 006 and is currently still available.

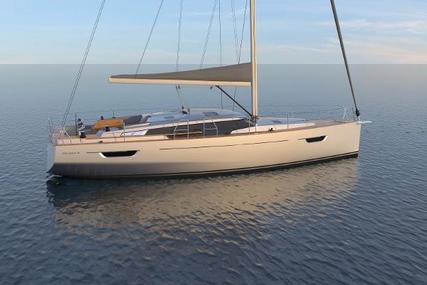

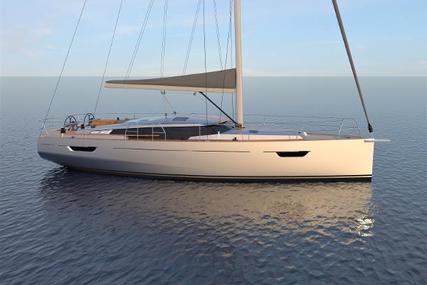

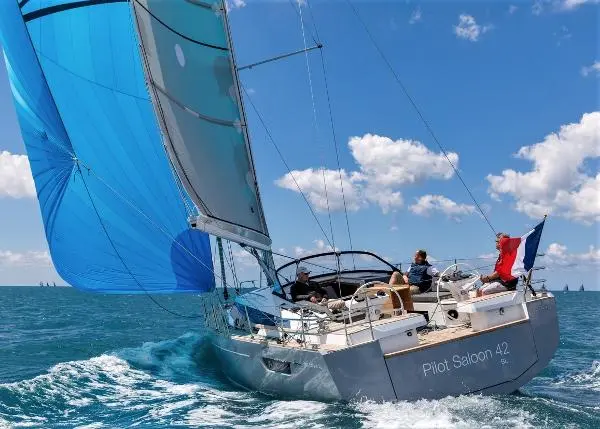

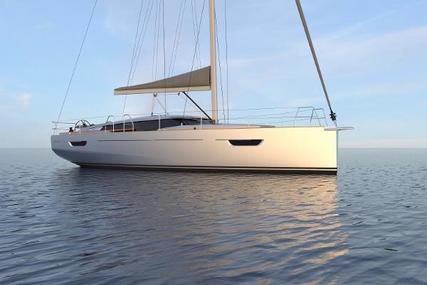

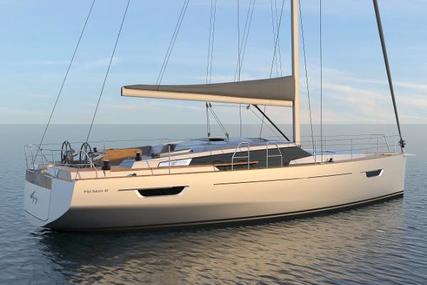

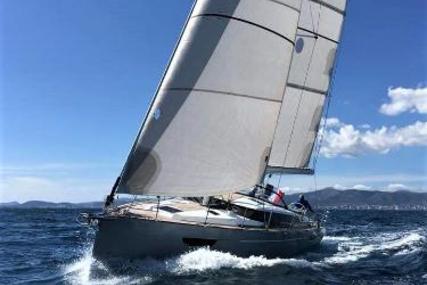

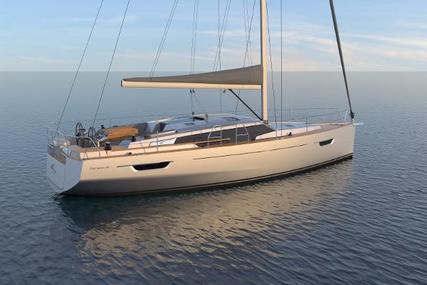

The pictures feature renderings and the previous demo boat which was hull # 001 which is now sold.
More photos coming soon...
General characteristics
Design by Berret - Racoupeau Yacht Design
Shipyard Wauquiez (France)
L.O.A 12.99m
L.W.L 12,48m
Maximum beam 4,34m
Standard draft (cast iron) 2,15m
Shoal keel draft (lead). 1,50m
Deep keel draft (lead) 2,30m
Light displacement NC
Standard draft ballast weight NC
Deep draft ballast weight NC
Shoal draft ballast weight NC
Approximative data
Fuel capacity 415/615 l *
Fresh water capacity 615/415 l *
Engine 57/80 HP * (* standard option)
Sail plan:
Main sail 46.0 m2
Genoa 43.5 m2
Sail plan upwind 89.5 m2
Design Category (CE) A – 8 pers.
Construction
• GRP / Balsa sandwich hull built with the infusion process, for optimum resin / fibre ratio.
• Hull protected by the use of bisphenolic resin on the external layers of the sandwich.
• One-piece composite structure integrating lateral and longitudinal reinforcements glassed and bonded to the bottom, spreading the rig and appendages efforts throughout the hull.
• GRP/Balsa sandwich deck fitted on the hull via polyurethane bonding and mechanical fastening at bulwark level.
• Lead bulb keel, fastened with stainless steel bolts, nuts and counterplates.
• Cable transmission steering system with 2 steering wheels; 2 rudder shafts, needle bearings.
Spars and rigging
• Anodized aluminium Performance mast with Facslide system.
• 2 sets of aft swept spreaders.
• Anodized aluminium Performance boom with outhaul, 2 automatic and one manual reef.
• Rigid boom vang.
• Genoa furler.
• Single strand stainless steel standing rigging: double backstay, main forestay, lower, intermediate and upper shrouds.
• Running rigging: Main halyard (Dyneema) and genoa halyard (Vectran), boom topping lift, main and genoa sheet outhaul, 3 reefs and genoa furler adjusting line.
Deck fittings
• Harken ball bearing blocks. Spinlock deck stoppers.
• 2 40 ST FS 2 speed primary winches close to steering stations.
• 2 46 ST FS 2 speed manoeuvring winches close to steering stations.
• Mainsheet led back to manoeuvring winches
• 2 Harken genoa tracks with adjustable car.
Mooring equipment
• 20KG anchor with 50 m / 10 mm chain and 50m warp.
• 6 mooring lines (black)
• 6 fenders + 6 fender socks (black).

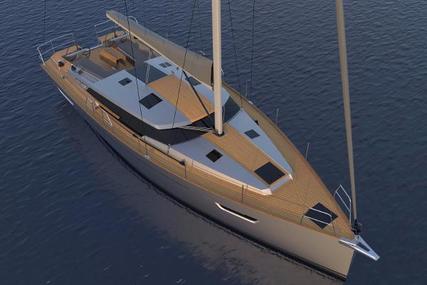

Deck equipment
• Teak cockpit seats and floor.
• Tilting aft platform (covered with teak).
• Removable swim ladder.
• 2 lockers and liferaft stowage integrated.

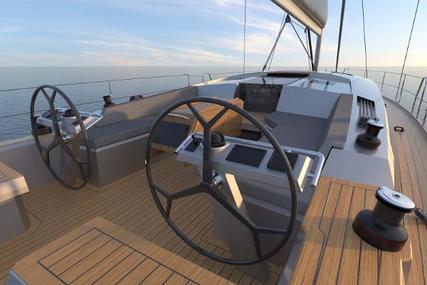

• 2 steering positions with consoles for electronics. Engine control and engine panel on starboard.
• 2 compasses.
• Emergency tiller.
• 1 gear locker under cockpit seat.
• 1 gas locker under cockpit seat.

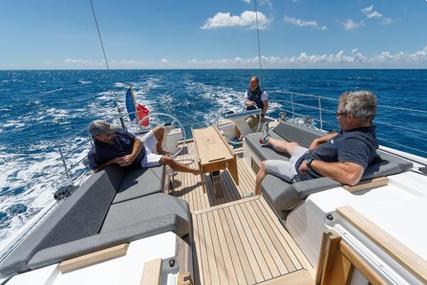

• Teak cockpit table with 2 folding leaves, fitted on stainless steel support.
• 3 large opening ports for light and ventilation in the aft cabin.
• 6 stainless steel mooring cleats.
• 2 part stainless steel aft pushpit with 3 closing wires, outboard engine support, 2 teak seats included.
• Flagstaff bracket.
• “Open“ type stainless steel bow pulpit.
• 3 rows stainless steel lifelines.
• Stainless steel stanchion with lateral opening gates.
• 2 deck lifelines with folding pad eyes.
• 2 folding pad eyes for life-jacket in the cockpit.
• 2 stainless steel handrails on cabin top.
• Large stained lateral windows with teak louver, opening ports.
• 7 opening deck hatches, opening portholes, 4 large fixed hull portholes.
• 2 dorade boxes on coach roof and 2 integrated dorades for aft cabin for inside ventilation, stainless steel protection for the 2 front ones.
• Sail locker forward, grating and electric bilge pump.
• Self-raining anchor locker with hook and sail bag attaching rod, 1000 W windlass with vertical gipsy for 10 mm chain.
• Stainless steel protection forward of chain locker.
• Stainless steel bow fitting with roller and Gennaker fixing.
• Shore-power outlet with connection cable.
Inside accommodation
• The interior woodwork is entirely built in-house. Woodwork are made of fine wood (Various wood finish available) and beeswaxed. Inner deck and hull sides are doubled by a textile liner.
• For an outstanding comfort mattresses and cushions are made of high-density foam. All berths are equipped with a slatted base.
Companionway
• Stained PMMA hatch boards with lock and in-deck recessed storage.
• Stained PMMA sliding companionway hatch.
• Curved laminated teak steps with non-skid inserts.
• Stainless steel handrails (leather wrapped).
• Wet locker to starboard (for 2 cabin version).

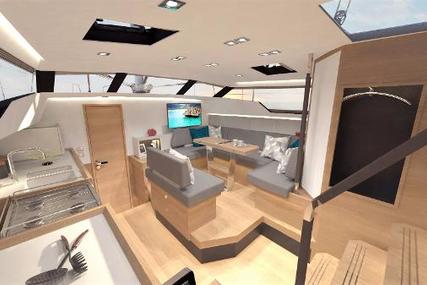

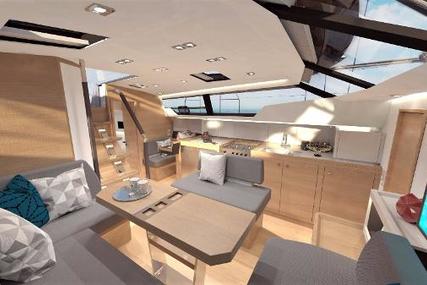

Saloon
• Raised saloon with panoramic vision.
• Dinette to starboard with cabinetwork dining table.
• Numerous lockers under seats and behind backrests.
Chart table
• Chart table with chart stowing space, book rack, lockers and reading lights.
Galley
• Synthetic marble working countertops with integrated double sink, mixer tap.
• Stainless steel 3 burner gimballed stove with oven.
• Solenoid safety valve for gas circuit.
• 12 V drawer refrigerator.
• 12 V negative temperature fridge.
• Cutlery drawer, large pots and pans drawer, various lockers and storage spaces, waste bin.
• Opening port above galley.
• Exclusive Wauquiez crockery for 6 persons.
Cabins aft of saloon
Choice of 2 alternative layouts:

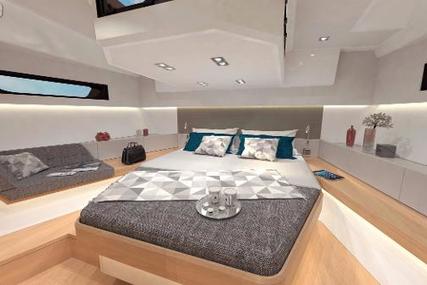

a) Owner’s aft cabin (standard version)
• Centreline bed. Large lit hanging locker to port and storage alongside the hull. Vanity to starboard.
Or
b) 2 guest cabins aft of saloon (option)
• 2 similar double cabins with large double bed and hanging locker.
Aft bathroom
• Synthetic marble washbasin with mixer tap.
• Cabinet with mirror.
• Marine toilet (large model).
• Independent shower with grating and draining electric pump.
Cabin forward of saloon
• Centreline bed. Large lit hanging locker to port and storage alongside the hull.
Bathroom forward of saloon
• Synthetic marble washbasin with mixer tap.
• Cabinet with mirror.
• Marine toilet (large model).
• Independent shower with grating and draining electric pump.
Engine equipment
• YANMAR 57HP (80 HP engine as option).
• 12 V / 125 Amp. alternator
• Sail drive.
• 3 bladed fixed propeller.
• 415 l. approx. fuel tank with decanter filter.
• 55 Amp engine start battery.
• Lit engine room with thermic/sound insulation.
Electrics
• 12 V. service circuit with 2 X 135 Amp. gel batteries.
• Shore power outlet with 12 V/40 Amp. battery charger.
• 12V / 230 V (or 12V / 115V) electric panel with touchscreen control interface (can be controlled remotely from a smartphone). Installed at chart table.
• Ceiling recessed LED lighting throughout.
• Reading lights at each bed, in the saloon and at the chart table.
Plumbing / Fresh Water
• Total capacity of 615 l(415+ 200) with electric gauge under the floorboards.
• 40 l. approx. water heater working from engine or from 220 V. circuit.
• 12 V water system.
• Electric draining pumps in shower compartments.
• Cockpit shower cold/hot water.
Black water
• 2 holding tank for toilets.
Draining
• Self-draining cockpit and chain locker.
• Double effect manual bilge pump in the cockpit.
• Electric automatic bilge pumps with manual switch at electric panel.
Comfort equipment
• Stereo radio/MP3 (USB, Bluetooth) + 2 speakers.
• Curtains / blinds on all portholes.
• Skyscreen-flyscreens on all opening hatches.
In addition, there are many options available to create your perfect dream yacht.
