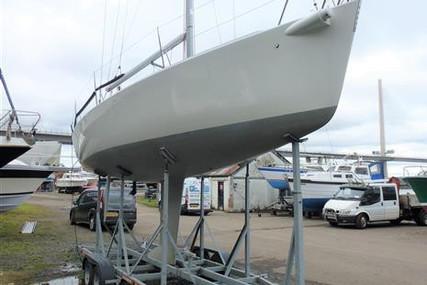

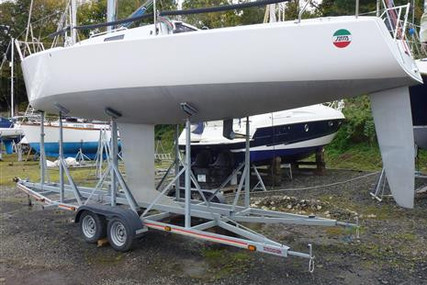

An imaculate condition J/92s, the very final J/92s built! Jota was only lightly cruised by her previous owner. Her current owners have set her up for racing with no expense spared and she comes with a full suit of Hyde racing sails as well as the original North cruising sails, and a twin axle road trailer.
Dimensions
Length Overall: 9.14m
Waterline Length: 8.1m
Beam: 3.05m
Max Draft: 1.88m
An imaculate condition J/92s, the very final J/92s built! Jota was only lightly cruised by her previous owner. Her current owners have set her up for racing with no expense spared and she comes with a full suit of Hyde racing sails as well as the original North cruising sails, and a twin axle road trailer.
Dimensions
Length Overall: 9.14m
Waterline Length: 8.1m
Beam: 3.05m
Max Draft: 1.88m
Dry Weight: 2,544.65 kg
Ballast: 1,051 kg
Displacement: 2,545 kg

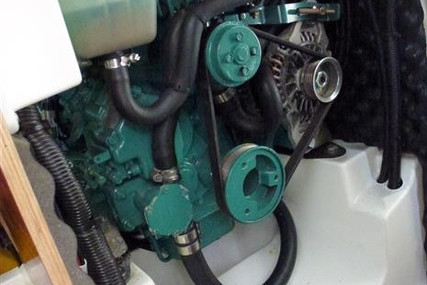

Engine
Make: Volvo Penta
Make: D1-13
Power: 12hp (9kw)
Drive: Saildrive
Hours: 350
Construction
Hull and deck constructed of balsa-cored GRP sandwich with unidirectional and biaxial laminates
Bulkheads laminated to both hull and deck. Chain plates bolted to hull
Aluminium mast-step fastened to main bulkhead to support mast compression

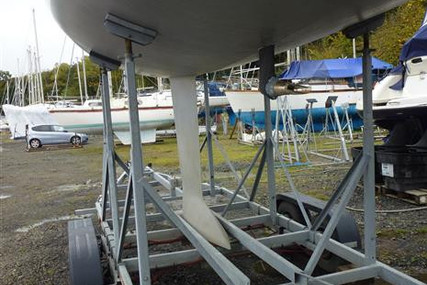

Lead keel bolted and epoxy bonded to deep moulded stub with sump
Hull is reinforced with moulded GRP stringers in keel sump and in bow sections
Deck with moulded high traction non-skid
Spade rudder of GRP foam sandwich mounted on alloy stock with self-aligning bearings
Bolts, screws and fittings are all made of marine grade stainless steel
Hull is moulded white, topsides light grey
Deck Equipment
Stainless steel pulpit, double lifelines, bi-color navigation light
Stainless steel bow mooring cleat
Stainless steel chain plates for shrouds, forestay and backstay

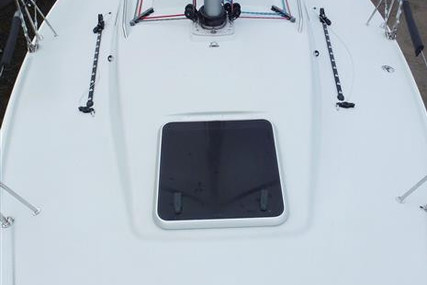

Opening hatch of 500 mm x 500 mm for fore cabin vent and light

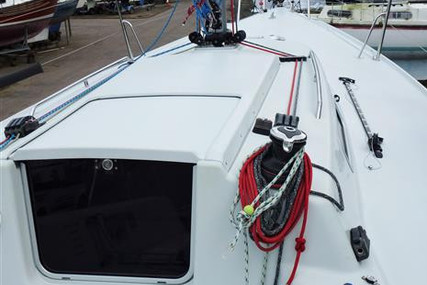

Harken ball bearing jib car with 3:1 car control lead to cleats on coach roof
2 stainless steel handrails on top of coach roof

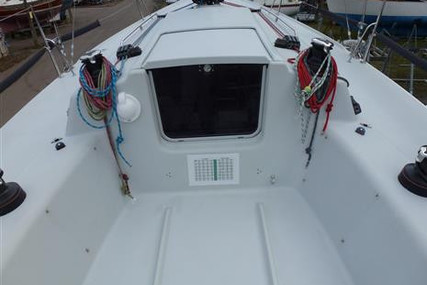

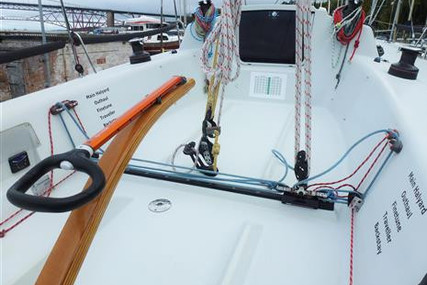

Mainsheet traveller with control line cleats mounted on cockpit sides
Mainsheet swivel base cam, with ratchet block and fine tune
One set (each mounted port and starboard) of 2-speed Harken A32.2ST self-tailing halyard winches and triple rope clutch mounted on aft edge of coach roof for halyards and reef lines
Two line storage bags.
Two 2-speed self-tailing Harken A40.2ST winches for headsails and spinnakers port and starboard
One set of cleats and fairlead blocks for backstay adjustment in cockpit port and starboard
One set of spinnaker sheet blocks mounted at both aft and forward end of cockpit port and starboard
Two stainless stern pulpits, one stainless bow pulpit with double lifelines, stern light, 6 stainless stanchions each with reinforcing leg. Padded lower lifeline grey covers from shrouds aft.
Two stainless stern mooring cleats port and starboard
One cabin port on each side of coach roof
Manually operated Plastimo bilge pump operated from cockpit
Grey mainsail cover and grey tiller cover
Mast and Rigging

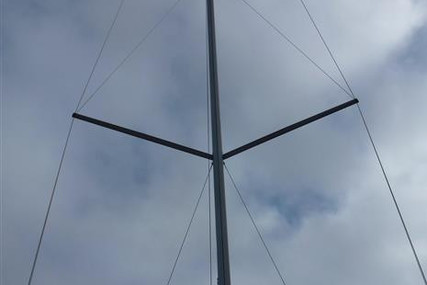

2020 Sparcraft Racing alloy mast with two sets of swept back spreaders, cabled for steaming light (none fitted). 2011 alloy boom
2020 Continuous Dyform standing rigging with bottle screw adjusters

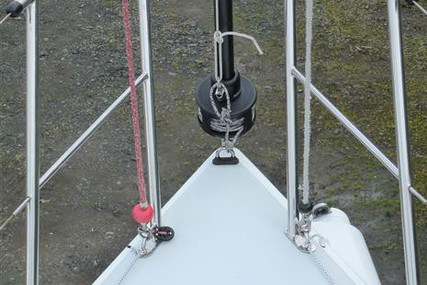

Harken roller furling system Mk IV Unit Zero
2020 16:1 Dyneema Cascade Backstay, lines led to both sides of cockpit
Reef pennant and mainsail clew outhaul led inside boom
Retractable carbon bowsprit controlled from cockpit
Solid boom vang with integrated cascade purchase system
Sails
RACING
Mainsail
- Hyde tri-radial CSP lite-skin carbon, 1+3 battens, single slab reef
Jibs
-
J1 – Hyde tri-radial CSP film/film carbon light airs furling 105% jib, with vertical battens, IRC area 23.16sqm
-
J2 – Hyde tri-radial CSP lite-skin carbon AP furling 105% jib, with vertical battens
-
J2 – Hyde membrane carbon/ aramid AP non-furling jib for foil, with horizontal battens
-
J3 – Hyde tri-radial CSP lite-skin carbon strong breeze, short-hoist furling 95% jib, with vertical battens
- Storm Jib
Spinnakers
-
A1 – Hyde tri-radial Dynakote 0.75oz VMG asymmetric spinnaker, IRC area 85.28sqm
-
A2 – Hyde tri-radial Dynakote 0.75oz AP/ running asymmetric spinnaker, IRC area 90.77sqm
-
A4 – Hyde tri-radial Fibermax 64 1.5oz heavy airs running asymmetric spinnaker, IRC area 75.6sqm
CRUISING/DELIVERY
-
Mainsail – North ‘Norlam’ cruise laminate 1+3 battens. Cruise roach. Ronstan ball bearing mast cars.
-
Jib – 100% North ‘Norlam’ cruise laminate, relatively high clew, vertical battens, UV strip, rope luff
Accommodations
Bulkheads and furniture covered in white Formica, white gel coat in mouldings, for clean, low maintenance finish
Teak and holly effect laminated flooring in main cabin
All interior finishing in white air dry gel coat for low maintenance

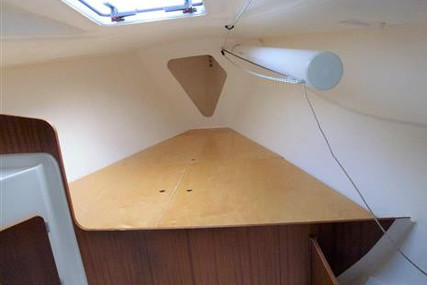

Forward Cabin – double v-berth (without cushions) stowage underneath
GRP moulded forepeak unit with marine WC and sink on port and storage on starboard
Holding tank outboard of WC
Light and ventilation from 500 mm x 500 mm opening hatch in foredeck
Door in main cabin bulkhead for privacy from main cabin

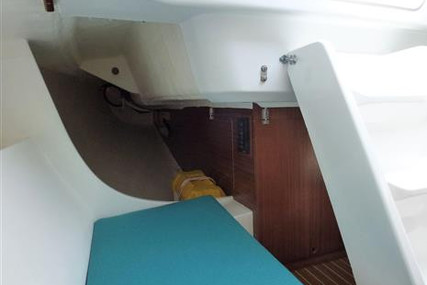

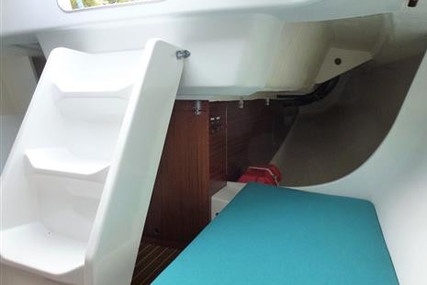

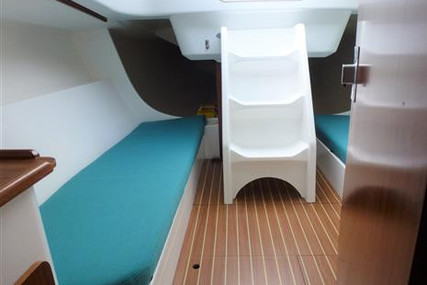

Main Cabin - light and spacious main cabin area with two opening ports and large companionway hatch, port and starboard settees cushion covered in removable fabric, moulded in backrest.
GRP galley moulding with storage compartment
Galley sink
Navigation area with storage
Large area for sail stowage behind companionway steps
Plexiglas companionway washboard and sliding hatch, washboard cover
Electronics
Dual battery option fitted. 34aH service battery replaced 2018. Ultra high performance 40aH starter battery fitted 2020
Raymarine (Tacktick) wireless speed, wind and log instruments
Velocitek Pro-Start tactical GPS
Navigation lights
Bulkhead-mounted Suunto Compass with light.
Raymarine RayStar differential GPS receiver, pushpit-mounted
Raymarine A series chartplotter with UK charts mounted at chart table
Digital Yacht iAIS NMEA to wireless converter for iPad/iPhone navigation apps with AIS feed to chartplotter and wirelessly to iPad/iPhone apps
Raymarine Smartpilot cockpit display and wireless remote control system fitted. Two wireless remote handsets / one rechargeable, one with replaceable batteries.
Raymarine Smartpilot X10 autopilot with S1 ram attached to rudder stock below decks.
Safety
Coastal Flare Set expiry 2022
2 x fire extinguishers 2016.
First aid kit
Throwing line
Horseshoe lifebuoy with light and drogue attached to pushpit. Additional horseshoe lifebuoy
Miscellaneous
Boat hook
Fortress aluminium anchor, chain and warp.
Harken winch handles x2.
Warps and fenders.
Marlen ‘Top Notch’ grey colour boom tent for camping
Spinlock tiller extension with orange handle, with storage cover
Features
- Autopilot
- Battened mainsail
- Wind speed and direction
- Tiller
- Storm jib
- Asymmetric spinnaker
- Gps
- Mainsail cover
- Furling genoa
- Depthsounder
- Repeater
- Compass
- Road trailer
- Genoa
- Log speedometer
- Plotter
