Carkeek 40 for sale in Sydney Australia

Price Reduction

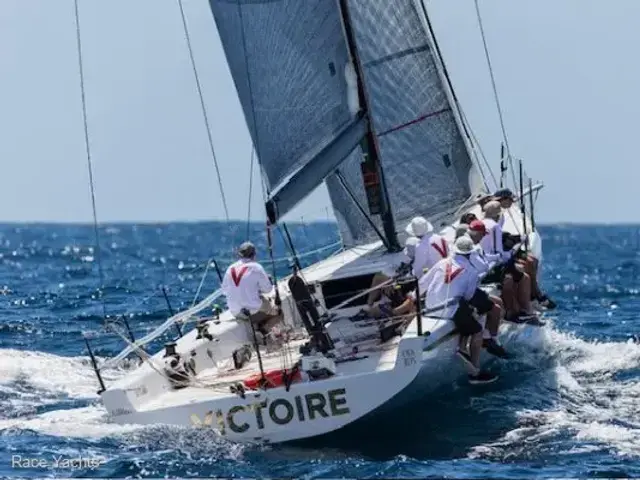

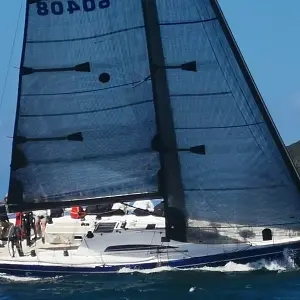

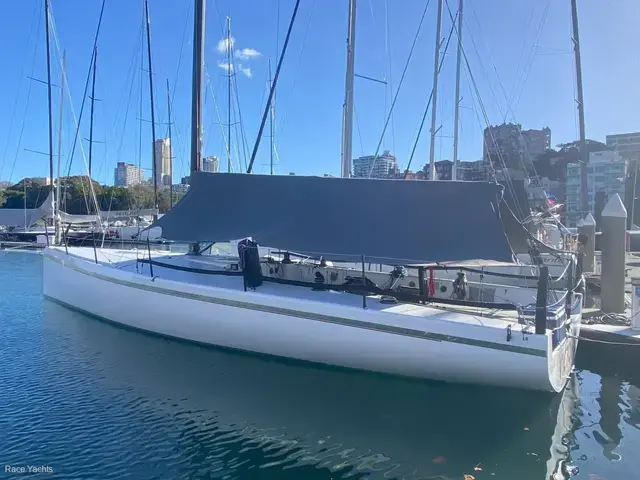

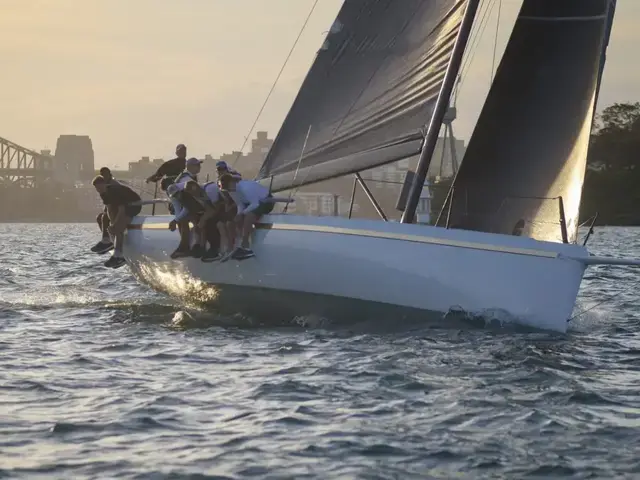

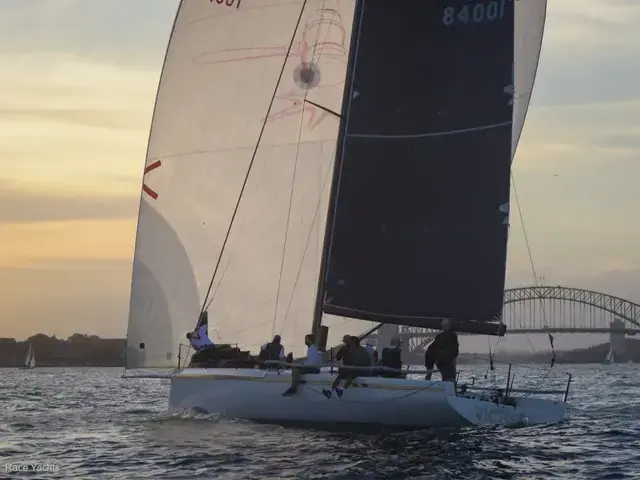

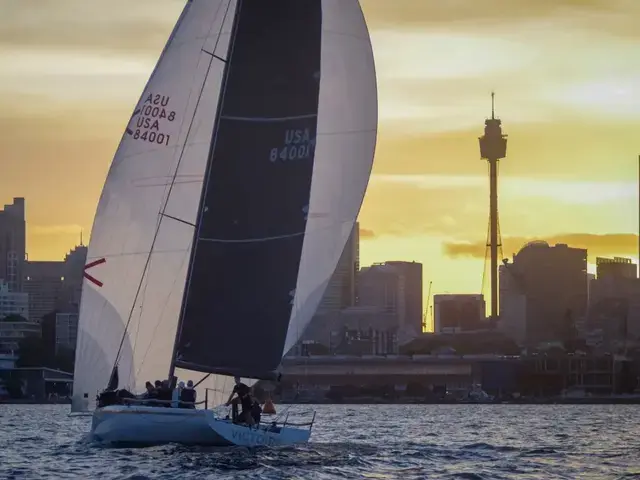

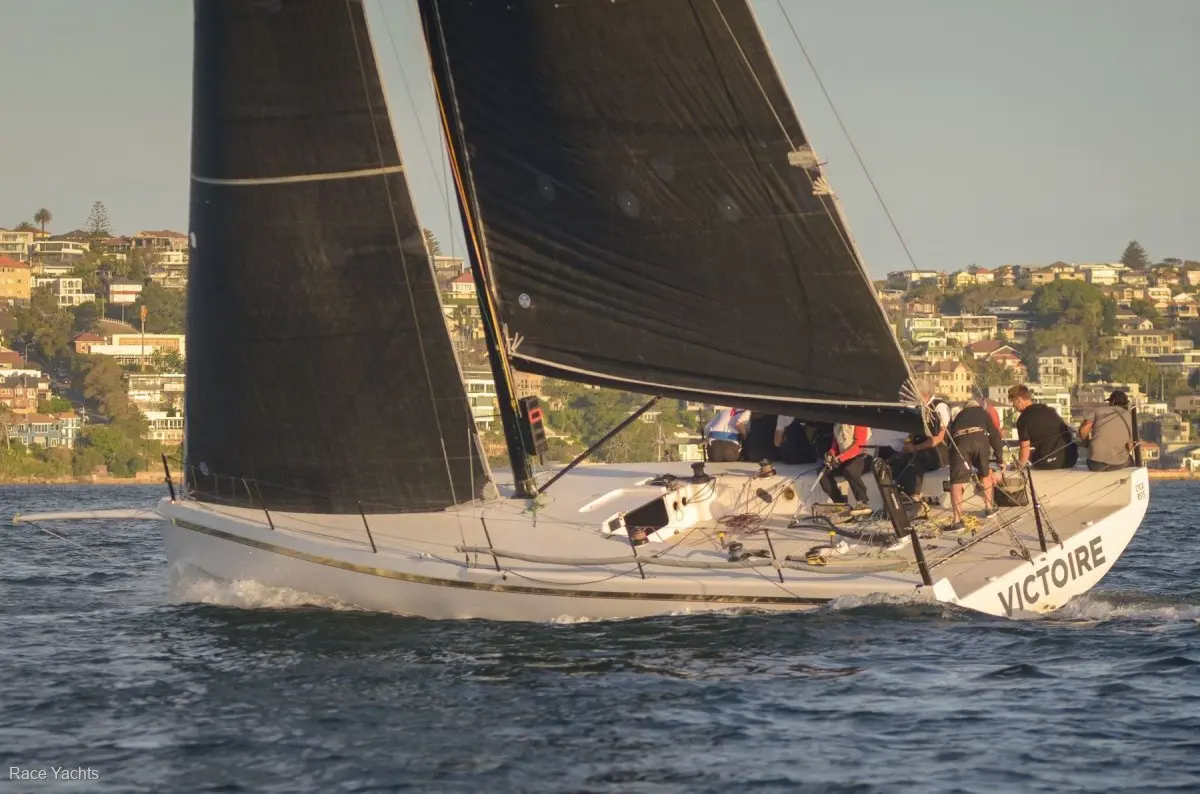

Victoire (formerly Decision and Fomo) is a Carkeek Fast 40 built by the famous McConaghy Boats. This all-carbon and Nomex constructed racing yacht was built in custom female tooling and has been campaigned successfully across the globe in all conditions.

Performance

The Carkeek Fast 40 is specifically tailored for this racing class, featuring advanced hull designs, lightweight construction, and high-tech sail configurations to maximise speed and agility on the water. With a focus on performance and handling, these yachts are often seen competing at top-level regattas around the world, showcasing the pinnacle of modern sailing technology and design expertise.

As Victoire, she continues to perform at an impressive level with podium finishes at Hamilton Is race week, Airlie Beach race week, and Lincoln race week just to name a few.

A superb rig from Southern Spars, rigging, and updated sail package is just one highlight of this proven race winner. (EC six rigging serviced 2022)

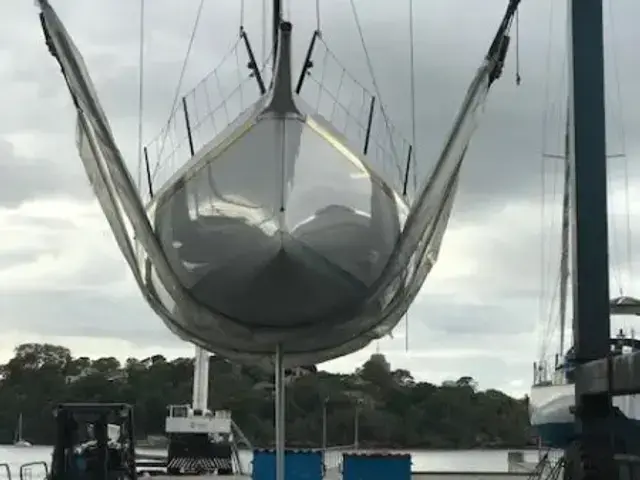

Just relaunched from a full service including new antifoul, topsides polish, new propellor, and all new bearing for lift prop system. June 2024

Specifications

Designer: Carkeek Design Partners

Builder: McConaghy Boats

Length: 40' - 12.18m

Beam: 3.80m

Draft: 2.98m

Displacement: 3977kg

Keel / Ballast: High tensile steel fin with composite fairings with lead bulb @ 2,098kg and upgraded Titanium interior top plate

Hull Material: Carbon Fibre

Deck Material: Carbon composite

Engine

Engine: LDW 702 Custom McConaghy Retractable drive unit with universal thrust bearing and bronze 3-blade propeller. June 2024 new propellor and all new bearings in retractable unit

Engine Make: Lombardini

Horsepower: 20hp

Fuel Type: Diesel

Propulsion: Fixed propellor that retracts into a recess in the hull

Fuel: 50L in reinforced plastic fuel tank

Accommodation

Mostly un-painted, lightweight interior with:

• 4 x alloy pipe cots
• Companionway ladder/ engine box

Covers

Boom tent

Ground Tackle

2 x anchor/chain/warp (Lightweight racing anchors)

Safety Gear

Cat 5, less PFDs and tethers
Cassette emergency rudder and tiller for OS racing

Bilge Pumps

2 manual and up to 6 electric bilge pumps

Epirb

Yes

Life Jackets

Not included

Flares

Yes

Fire Protection

Portable fire extinguishers

Electrics

New lithium house battery May 2024 plus engine start battery.
All 12v system onboard with isolation switches and emergency parallel switch. Removable Ever drive 12V 20-amp Battery Charger and 240V shore power cable.
8 x breaker switch board and LED monitor to control the following functions:
- Electronics
- Navigation lights
- Interior red/ white lights
- 2 x 12V outlets
- Bilge pumps
- VHF radio

Electronics

Electronics / Navigation: B&G H3000 Sailing processor electronics system which includes:
- 5 x 20/20 B&G mast displays in carbon mast bracket
- 2 x Garmin GMI 20 displays on aft cockpit sides
- 1 x B&G H3000 GFD on forward cockpit
- Additional Halcyon Gyro Compass processor
- B&G Motion sensor
- KVH Gyro Compass
- Precision 9 GPS Aerial
- String pot linear sensors for Forestay, deflector position
- Carbon VMH unit and speed/ depth thru hull sensors and AIS
Communications:
- B&G/ Simrad V50 DSC VHF radio and wireless command mic
- Moxa Network hub for computer/ nav connectivity, onboard wifi and 4G cellular modem
- Computer not included

Sail Inventory

Doyle Sails Inventory
TBA

Mast / Rigging

Southern Spars High Modulus 2-spreader rig with Southern boom:
- EC-6 Carbon rigging
- Halyard locks for jib, 2 x spin and mainsail
- Gorilla head foil
- Internal mast jack with shim plates and adjustable mast base
- 4:1 adjustable backstay's (EC-6)
- Soft vang with boom vang strut
- Reaching strut with quick connect fittings on mast
- Underdeck halyard leads with integral composite deck tie rod
- 1:2 Backstay deflector located at hounds
- Regularly updated running rigging and spares

Deck Gear

Deck Hardware: Harken deck hardware throughout with the following:
- Harken Winch package. 5 x Performa 50-2 winches for pit, mainsheet and runner
- 2 x Harken 50.3 self-tailing primary winches which are driven by pedestal
- Harken MX pedestal with under-deck shaft drive and spin-drop wheel/ string drop system
- Spinlock jammers throughout
- Un-reel spinnaker sheet reeler's
- Spinlock engine gear/ throttle control
Hydraulics: Harken hydraulic package which includes:
- 2-speed harken pump
- 3 function panel on-deck with shared Mast jack/ deflector function valve at mast base. This operates the following functions/ rams:
Forestay ram (in bow)
Backstay deflector ram (at mast base)
Mast jack (internal)

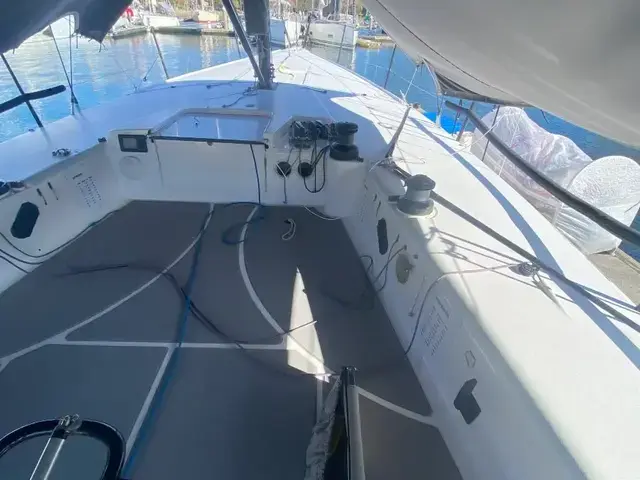

Racing Cockpit layout with offset to starboard pit area, low profile tiller and aft positioned grinding pedestal. Other features include:
- Custom companionway hatch and removable wash boards
- Underdeck rope leads for spinnaker sheets (jammers under deck)
- Underdeck halyard and tack line leads
- Pedestal driven primary winches
- Foam cockpit floor deck grip
- Carbon mainsheet/ helmsman foot bars
- Propulsion up/down control
Non-skid finished foredeck with minimal fittings. Features include:
- Carbon fibre bow sprit with twin tack lines
- Carbon/ e-glass Pullpits with integral nav lights (single leg- open to bow sprit) stanchions and Pushpits. Forward stanchions and lifelines fitted with spinnaker drop/ jib rollers
- Jib tack trench with adjustable jib tack
- Siding forward hatch with fairings for spinnaker drop system
- Rebated Spinnaker staysail furler
- Moulded integral tow rail
- Underdeck Rope lead jib sheeting system

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
